128×128, 1.44inch LCD display HAT for Raspberry Pi

Description

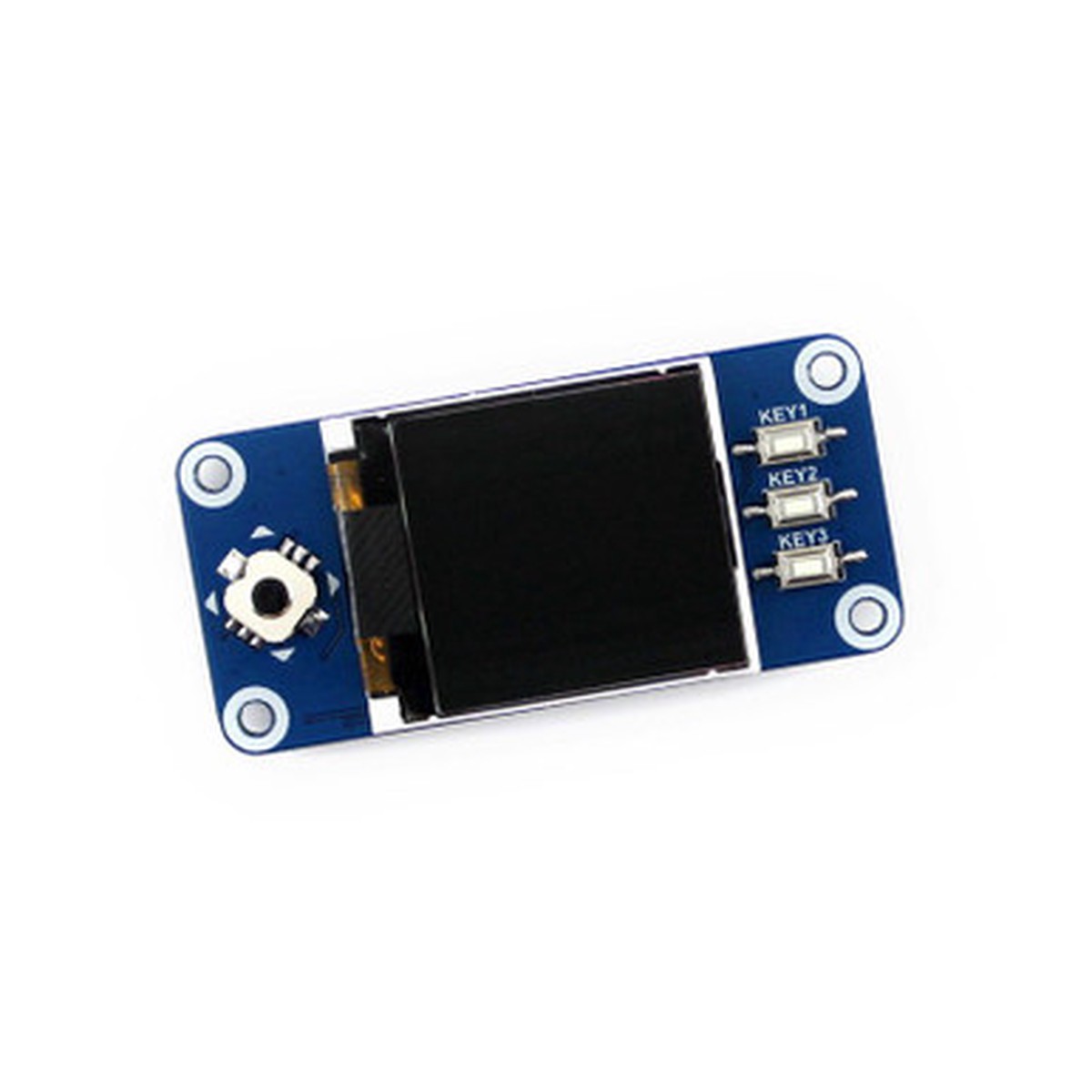

Description Show Reviews Waveshare 13891 -1.44inch LCD display HAT for Raspberry Pi, 128×128 pixels, SPI interface – 1.44inch LCD HAT This is an LCD display HAT for Raspberry Pi , 1.44-inch diagonal, 128×128 pixels, with embedded controller, communicating via SPI interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi series boards 1x joystick (5-position), 3x pushbuttons, handy and useful Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Specifications Driver: ST7735S Interface: SPI Display color: RGB, 65K color Resolution: 128×128 Backlight: LED Operating voltage: 3.3V Interface SYMBOL RASPBERRY PI PIN (BCM) DESCRIPTION KEY1 P21 Button 1/GPIO KEY2 P20 Button 2/GPIO KEY3 P16 Button 3/GPIO Joystick Up P6 Joystick Up Joystick Down P19 Joystick Down Joystick Left P5 Joystick Left Joystick Right P26 Joystick Right Joystick Press P13 Joystick Press SCLK P11/SCLK SPI clock input MOSI P10/MOSI SPI data input DC P25 Data/Command selection (high for data, low for command) CS P8/CE0 Chip selection, low active RST P27 Reset, low active BL P24 Backlight Dimensions Development Resources Wiki page Content 1.44-inch LCD HAT x1 RPi screws pack (2pcs) x1 0 Reviews Hide Reviews Show Reviews
