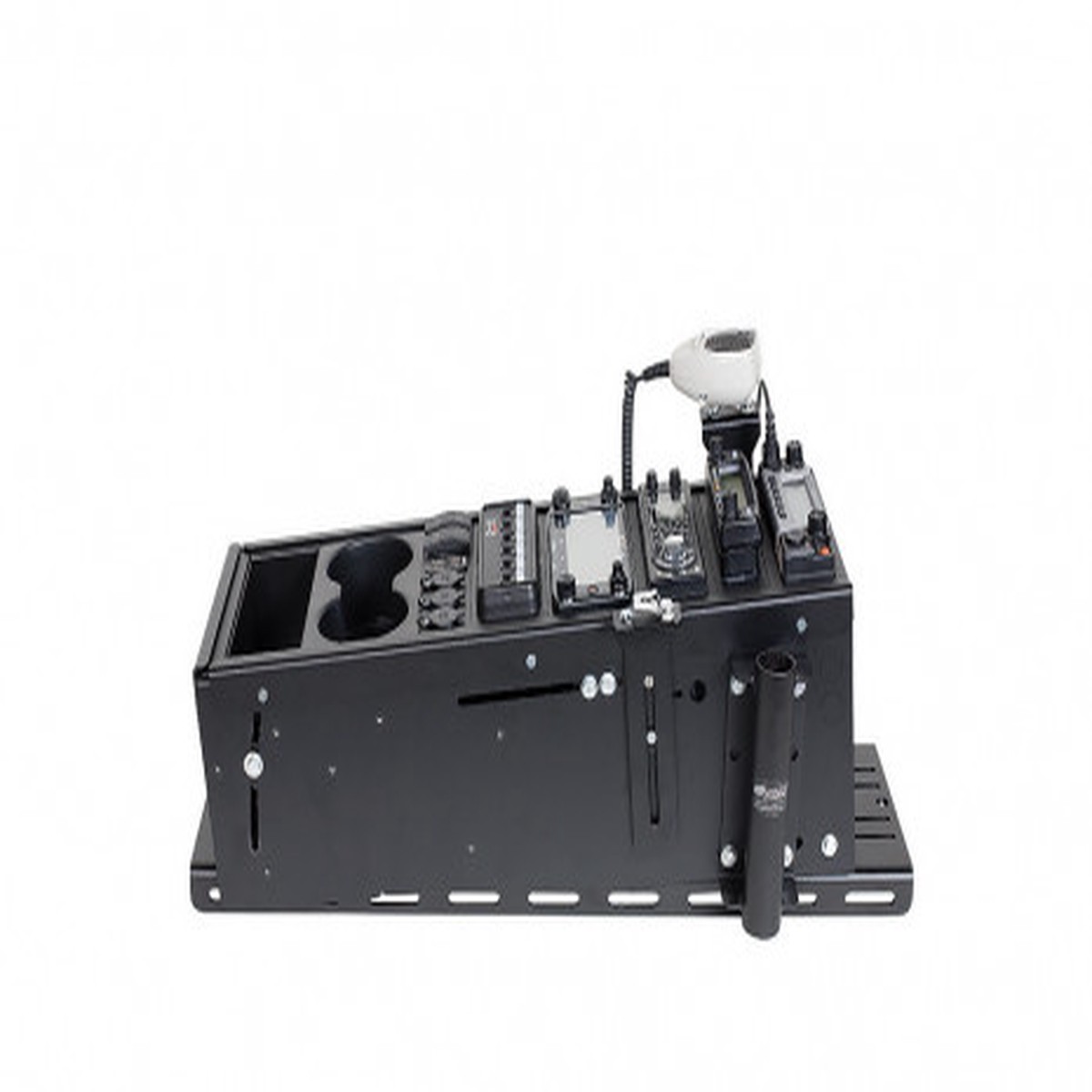

25″ Universal Console Box – 7160-0770 | 7160-0770

Description

25″ Universal Console Box Gamber-Johnson part number 7160-0770.SpecificationsWeight22.5 lbs. / 10.2 kgHeight8.36″ – 11.36″ / 21.2 cm – 28.9 cmWidth8.75″ / 22.2 cmDepth25.0″ / 63.5 cmFeatures24.5″ (62.2 cm) of straight mounting space plus 0.5″ of overlap space to allow faceplates to fit flush Designed to house full sized devices and accessories Height adjustable with no side gaps in the console, ranges from 8.36″ to 11.36″ (21.2 cm – 28.9 cm) Angle adjustable at any height, ranges from 0 to 9 Adjustable support bracket in the center to strengthen the console box, along with fixed gussets in the bottom Can accommodate a power distribution block or Lind shut-down timer on the Front Plate Can accommodate most console box accessories including armrests, exterior cup holder, side pocket, DS-138, etc. Side pole mount (DS-138, sold separately) is angle adjustable to keep the pole vertical Rear armrest can be angle adjusted be using spacers on the bottom two bolts Three mounting locations on the side of the box for a mic clip or Adjustable Mic Clip (Item No. 7160-0826) Six 12V knockout panels for cigarette adapters Fully welded construction for long term product life span Box will ship fully assembled (except for accessories) 3 faceplates and 3 filler panels are includedVehicle CompatibilityUNIVERSALProduct DetailsWarranty: Limited Lifetime WarrantyMounting Space: Horizontal Section accommodates 24.5″ (62.23 cm) of mounting spaceIndustry: Fire/Rescue, Public Safety, UtilityPlacement: On any MCS Top Plate (Item No. 7160-0086 or 7160-0085)Sub Type 1: Console SystemSub Type 2: Console BoxSub Type 3: StandardNotes:BucketDownloadsInstallation Guide (PDF)
