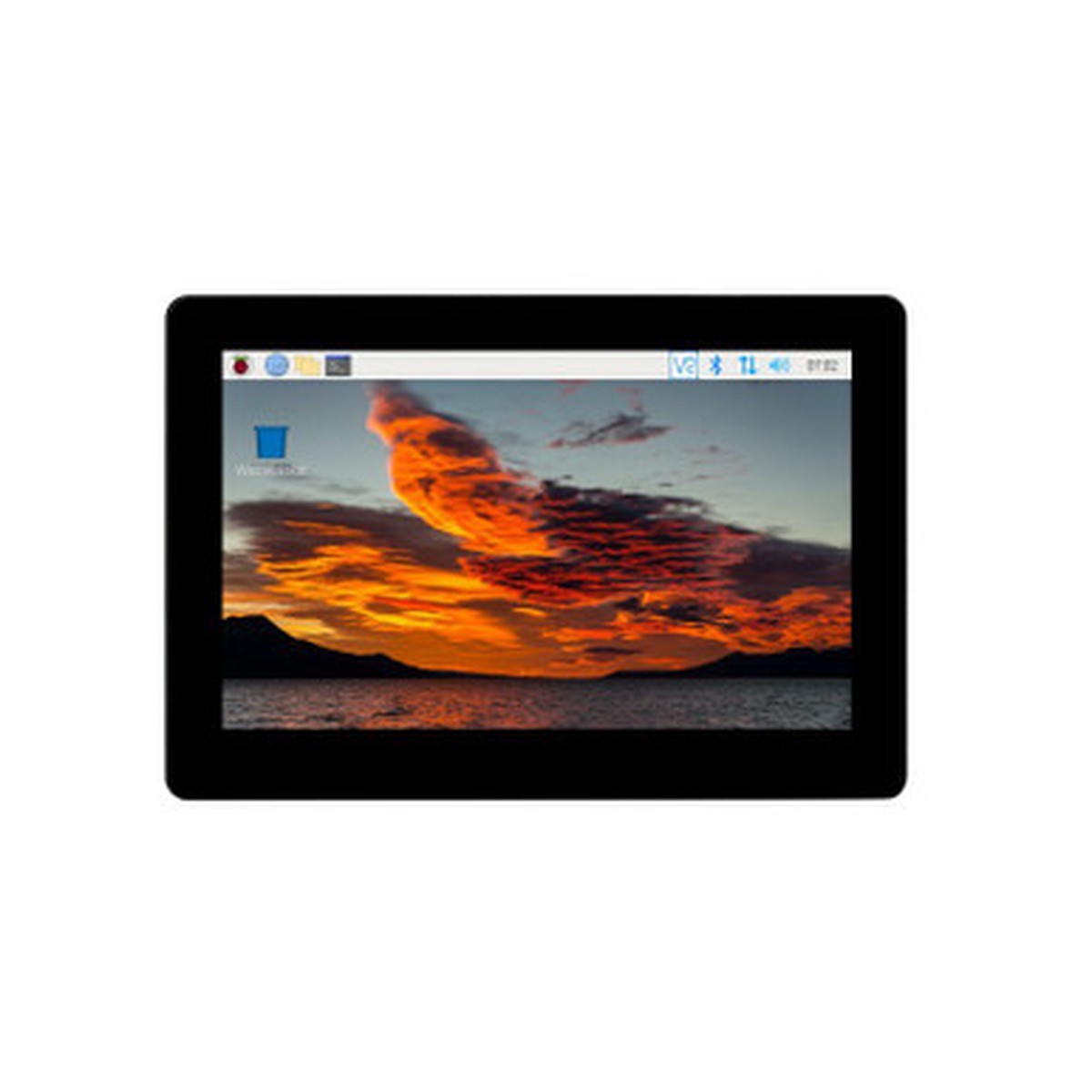

5 Touch Screen Expansion for Raspberry Pi CM4, PoE Header, Gigabit Ethernet, 4K Output

Description

Description Show Reviews Waveshare 22024 – 5 Touch Screen Expansion For Raspberry Pi Compute Module 4, PoE Header, Gigabit Ethernet, 4K Output – CM4-DISP-BASE-5A Specifications CM4 socket suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 connector M.2 M KEY, supports NVME SSD PoE PoE header (additional PoE HAT is required to enable PoE feature) USB USB 2.0 4 Display 5 screen, 800 480 pixels, 5-point capacitive touch Camera MIPI CSI-2 port 2 (15pin 1.0mm FPC connector) Video HDMI, supports 4K 30fps output RTC Real-time clock with battery socket and ability to wake Compute Module 4 Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants Fan header allows speed adjustment and measurement, 5V / 12V Power input 5V Dimensions 127.7 87.45mm 5 HD Display – 5 800 480 Pixels Display, Clear Details IPS Natural Color – Wide Viewing Angle, Fast Response, Precise And Natural Color, No Ripple On Touch, Better Touch Experience 4K Output To External Display – Supports 4K (3840*2160) 30fps Output Via HDMI Port, Fully Releasing The Vision Potentiality 5-Point Capacitive GentleTouch – Up To 5-Point* Capacitive Touch Screen, Just Gently Touch It Without Any Force, That Is “Capacitive” (the actual touch points depend on the software system) Slide To Adjust The Brightness – The Backlight Brightness Is Adjustable By Software For Different Scenarios, More Power Saving For The Night Or Battery-Powered Projects Love It, Cool It – Onboard Fan Header With Speed Adjustment And Measurement Support, Compatible With 5V/12V Cooling Fans Package content CM4-DISP-BASE-5A x1 Weight: 0.154 kg Interface Introduction Outline Dimensions Resources WIKI: www.waveshare.com/wiki/CM4-DISP-BASE-5A * Resources for different product may vary, please check the wiki page to confirm the actually provided resources. 0 Reviews Hide Reviews Show Reviews
