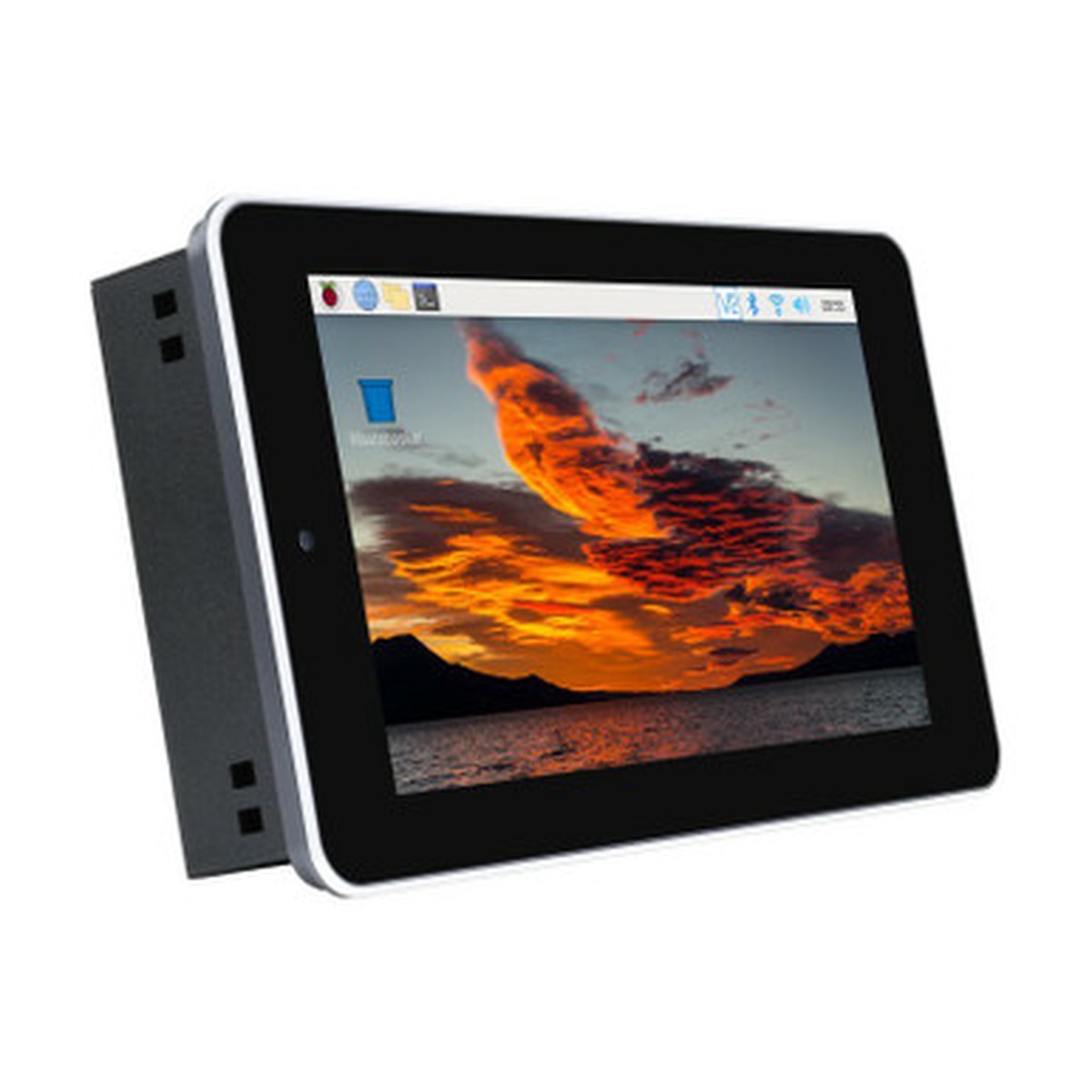

7″ Touch Screen All-In-One Kit Designed for Raspberry Pi CM4, 5MP Camera, Aluminum Case

Description

Description Show Reviews Waveshare 21225 – 7″ Touch Screen All-In-One Kit Designed For Raspberry Pi CM4, 5MP Camera, Aluminum Case -CM4-DISP-BASE-7A-BOX Specifications CM4 socket suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 M.2 M KEY, supports NVME SSD USB USB 2.0 4 Connector isolated RS485, RS232, GPIO, and I2C Display 7inch, 800 480 pixels, 5-points capacitive touch, toughened glass panel Camera 5MP, F2.4, 3.89mm fixed focal length, supports video recording Video HDMI, supports 4K 30fps output RTC Real-time clock with battery socket and ability to wake Compute Module 4 Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants Fan 5V/12V, allows speed adjustment and measurement Speaker 8 2W dual track speakers Power input 7-36V Dimensions 196.68 114.42mm What’s On Board CM4 socket suitable for all variants of Compute Module 4 DC power supply 7 ~ 36V DC input CM4 status indicator PWR: Raspberry Pi power indicator ACT: Raspberry Pi operating status indicator HDMI connector supports 4K 30fps output RJ45 Gigabit Ethernet 10/100/1000M compatible USB 2.0 ports 4x USB 2.0, for connecting sorts of USB devices Micro SD card slot for connecting a Micro SD card with pre-burnt image (Lite variant ONLY) USB SLAVE port USB programming port BOOT selection ON: CM4 will be booted from USB-C interface OFF: CM4 will be booted from eMMC or Micro SD card MIPI CSI connector connected to the 5MP front camera Isolated I2C for controlling or reading data from devices via I2C Isolated GPIO for controlling or detecting devices via GPIO Isolated RS485 Isolated RS232 DC power supply 7 ~ 36V DC input RS485 terminal resistor and GPIO logic level selection RS485: connect/disconnect the 120R resistor GPIO: GPIO logic level selection RTC battery holder supports CR1220 button cell Touch screen header connected to the capacitive touch screen Display connector connected to the 7inch 800480 display M.2 M KEY supports M.2 M KEY NVME SSD, or other communication modules using PCIe channel Speaker header audio output FAN header for connecting cooling fan, allows speed adjustment and measurement RTC interruption configuration GL-EN: CM4 powerdown on RTC interruption PI-RUN: CM4 will reboot on RTC interruption D16: D16 pin is triggered on RTC interruption (default) System function configuration BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card FAN power supply selection select 5V (default) or 12V power to drive the fan IO-VREF selection set the CM4 IO logic level as 3.3V (default) or 1.8V RS485 switch GPIO13/12: using ttyAMA1 device (default) GPIO15/14: using ttyS0 device RTC/FAN I2C bus selection SDA0/SCL0: I2C-10 is shared with CSI/DSI GPIO3/2: I2C-1 is shared with 40PIN GPIO (default) Outline Dimensions Resources WIKI: CM4-DISP-BASE-7A-BOX * Resources for different product may vary, please check the wiki page to confirm the actually provided resources. 0 Reviews Hide Reviews Show Reviews
