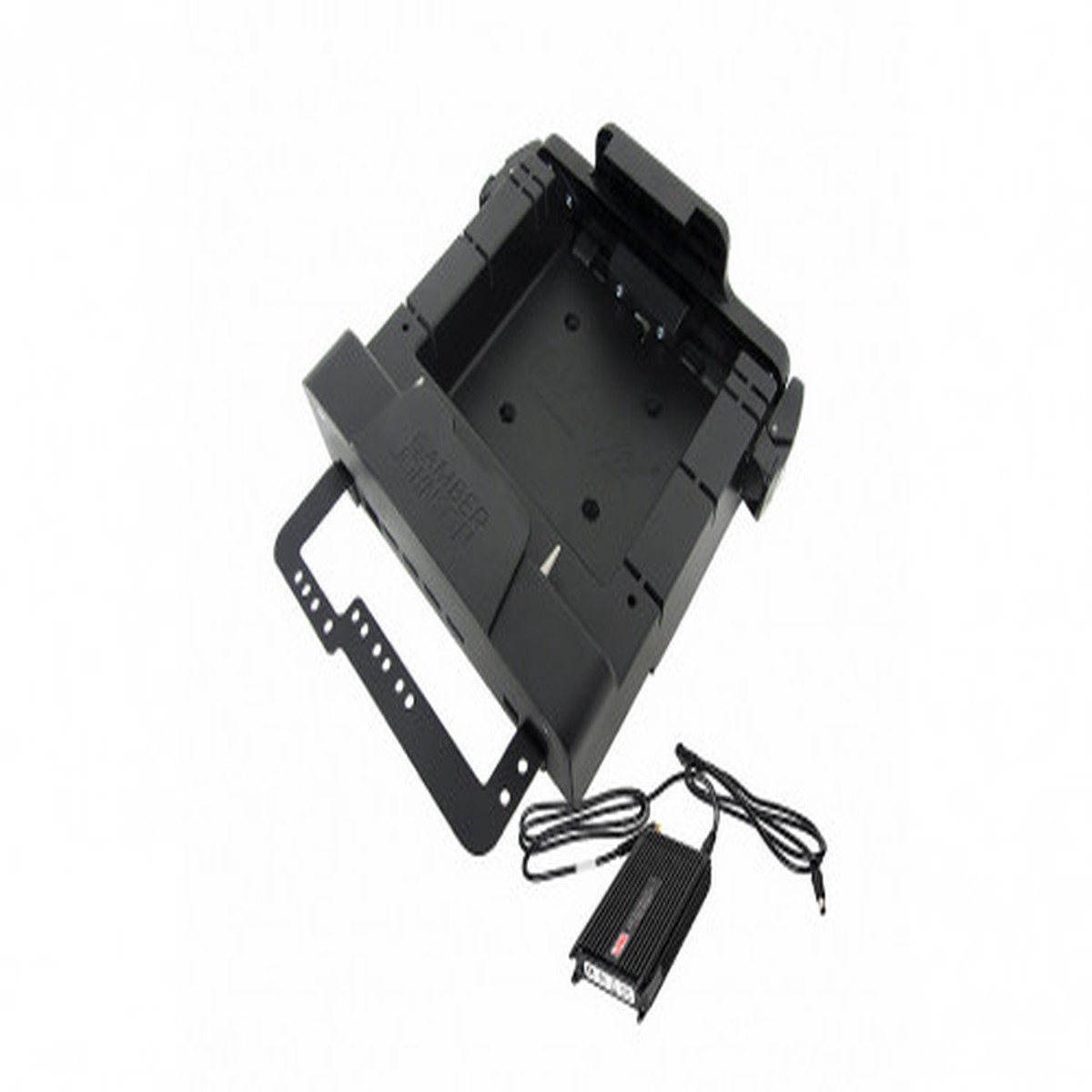

8″ docking station – 7170-0522 | 7170-0522

Description

8″ docking station Gamber-Johnson part number 7170-0522.SpecificationsWeight2.6 lbs / 1.18 kgHeight10.0 in / 25.4 cmWidth9.0 in / 22.9 cmDepth3.35 in / 8.5 cmFeaturesKit includes:Docking station (7160-0861-00) 12-32 VDC power supply by Lind (16411)Designed and tested for MIL-STD 810G specificationsCompatible with Zebra enterprise tablets with the rugged frame optionAccommodates expansion back of the ET50/51 55/56 to easily add accessories like a scanner/hand strap, battery bay, or stylusFront camera on ET5X accessible when the tablet is in the docking stationCompatible with Windows or Android operating systemsDual latch/locks provide stability and docking connectivityGuide pins prevent damage to the docking connection when docking the tabletVESA 75mm mounting patternSteel and composite design for reduced weightRugged construction for long-term durabilityProduct DetailsModel: ET50/51/55/56Device OEM: ZebraWarranty: 3-year Limited Lifetime WarrantyPort Replicators: RS232 serial power on pin 9 – 1 amp, Power input, USB 1.1A charging, USB 3.0, Ethernet RJ45 (1)Antenna Pass-through: No RFDevice Type: TabletIndustry: Material HandlingPort Replication: FullSub Type 1: Docking KitDownloadsInstallation Guide (PDF)Testing Summary (PDF)
