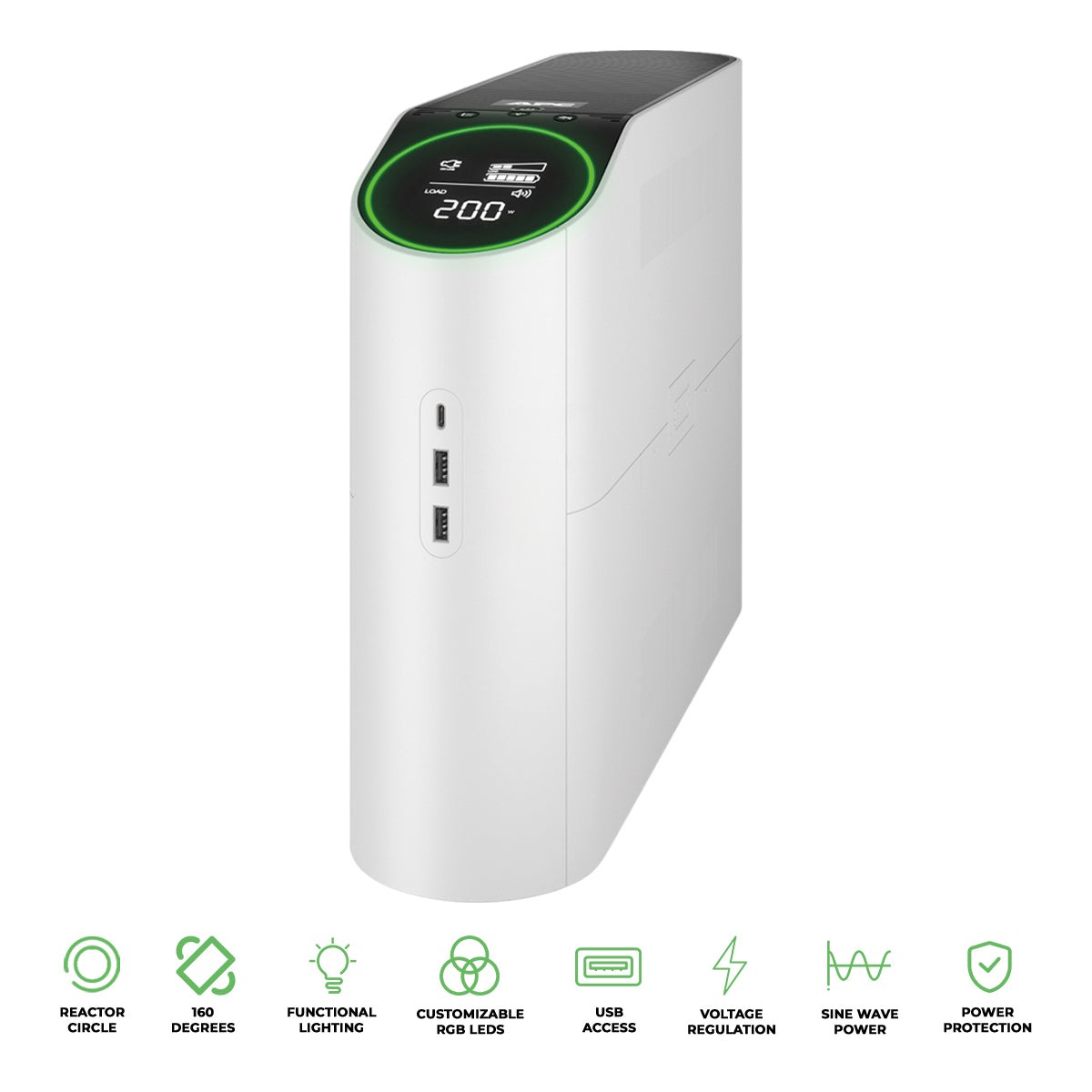

APC BGM2200-MSX Back-UPS Pro for Gaming/ 2200VA/ 1320W/ Tower/ 230V/ 3x Universal & 3x IEC C13 Outlets/ RGB Lights/ Pure Sine Wave/ Arctic (White)

Description

The 2200VA/1320W tower UPS has 6 total outlets, 4 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 1080 Joules. It features Automatic Voltage Regulation to correct voltage dips and surges to proper levels. It comes with PowerChute Serial Shutdown, an easy-to-use safe system shutdown software with power and energy management features.

• Pure sine wave ouptut provides cleanest signal for active PFC servers and electronics
• 12 customizable RGB LEDs
• Reactor circle visually alerts of remaining power, surges, dips, power outages, and building wiring faults
• 3 USB smart charging ports (Type A + C) to plug in your wireless gaming devices and mobile phone
• Environmental performance of the product

Specification:

Overview

Lead time	Usually in Stock

Main

Main Input Voltage	230 V AC 1 phase
Other Input Voltage	230 V
Main Output Voltage	230 V 1 phase
Rated power in W	1320 W
Rated power in VA	2200 VA
Product or component type	Uninterruptible power supply (UPS)
Input Connection Type	C19/C21
output connection type	2 IEC 60320 C13 1 IEC 60320 C13 surge 2 universal 1 universal surge
Cable length	1.5 m
Number of cables	1
Battery type	Lead-acid battery

Batteries & Runtime

Number of battery filled slots	1
Number of battery free slots	0
Battery recharge time	16 h
Number of battery replacement quantity	1
Battery voltage	24 V
Overcurrent protection	15 A
Battery charger power	12 W rated
Battery life	35 year(s)

General

Provided equipment	safety guide USB cable 2, power cable 1, power adapter
product web sub-family	Gaming performance
Number preinstalled power module	0
Number of power module free slots	0
Redundant	No

Physical

Colour	White
Height	292.1 mm
Width	104.1 mm
Depth	408.9 mm
Net weight	12.24 kg
mounting support	Floor
Mounting preference	No preference
mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	Yes
mounting position	Vertical

Input

Network frequency	50/60 Hz +/- 3 Hz
Plug standard	C19/C21
Input voltage limits	168…302 V
Maximum input current	12 A
Switching current capacity	15 A
Input harmonic distortion	Less than 3 % for full load
Input protection type	Circuit breaker

Output

Maximum configurable power in W	1320 W
Output frequency	50/60 Hz +/- 3 Hz sync to mains
UPS type	Line interactive
Wave type	Sine wave
Full load runtime	00:30:00
Half load runtime	00:05:30
Maximum configurable power in VA	2200 VA
Transfer time	8 ms typical : 10 ms maximum

Conformance

Product certifications	CE CB
Equipment protection policy	Lifetime : $150000

Environmental

Ambient air temperature for operation	040 C
Relative humidity	095 %
Operating altitude	0…10000 ft
Ambient air temperature for storage	-1540 C
Storage Relative Humidity	095 %
Storage altitude	0.00000000003048.0000000000 m
acoustic level	45 dBA
IP degree of protection	IP20

Communications & Management

Free slots	0
Control panel	Multifunction LCD status and control console
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rate	1080 J
Noise suppression	Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous
