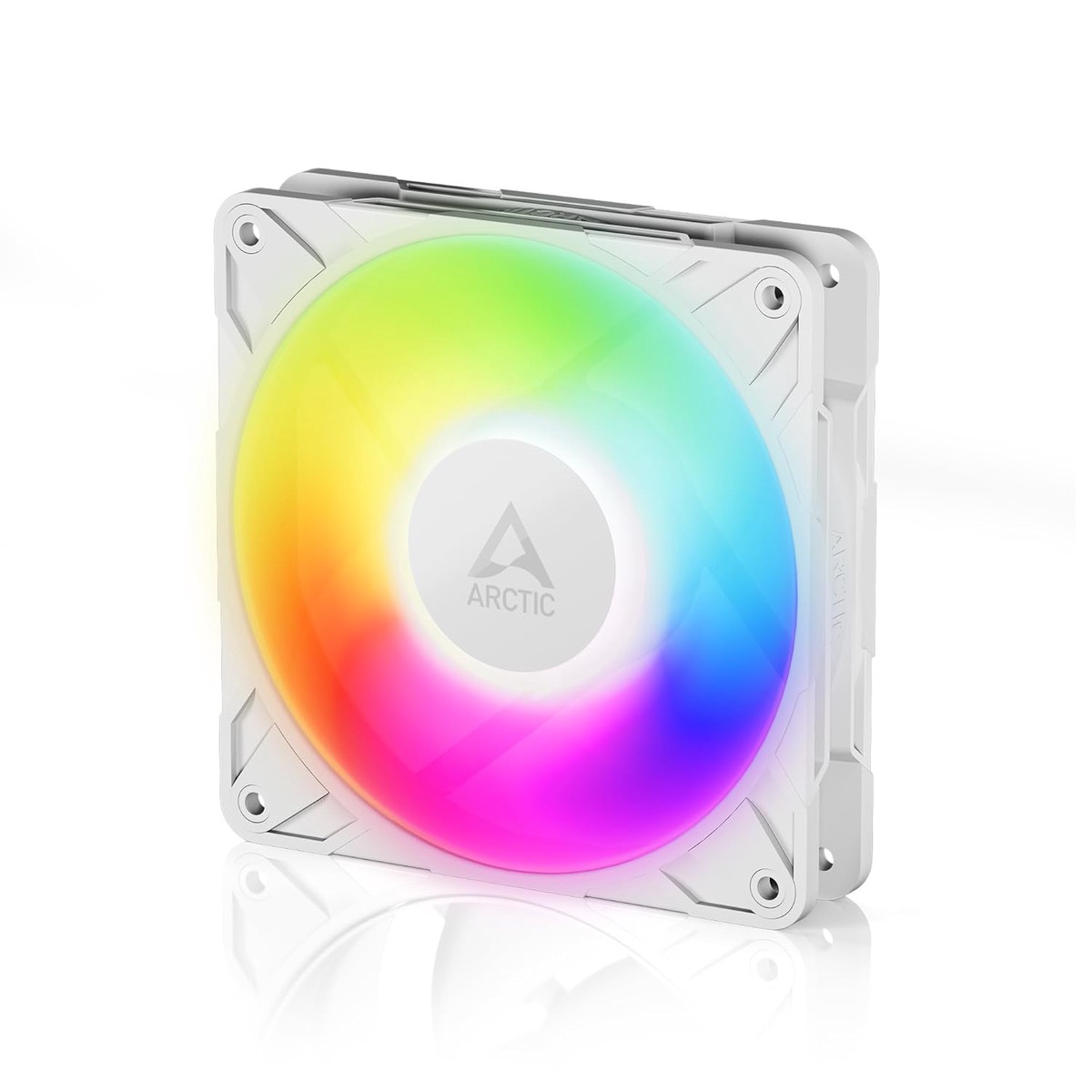

Name: Arctic P12 Pro A-RGB 120mm A-RGB PWM Single Fan with Cable Splitter (White) (ACFAN00311A)
SKU: ID35177850557
Availability: InStock

Description

HIGH STATIC PRESSURE: Efficient even with resistance the generated airflow easily penetrates dense radiators, narrow perforated panels and mesh structures and ensures reliable cooling
PWM CONTROL WITH WIDE SPEED RANGE: The speed can be progressively adjusted up to 3000 rpm via the 4-pin PWM connection the fan stops completely at less than 5% PWM
PRECISE MANUFACTURING FOR MAXIMUM SMOOTH RUNNING: Minimal gaps, automatic balancing and high-precision measurement noticeably reduce vibrations for quiet, efficient and long-lasting performance
SMOOTH-RUNNING FLUID DYNAMIC BEARING (FDB): The self-lubricating bearing minimizes noise during operation ideal for quiet, efficient cooling and a long, reliable service life
NEW FAN BLADE DESIGN FOR MORE PERFORMANCE: The redesigned rotor blades offer an optimal balance of performance and low noise especially efficient at low speeds

Specification:

General Specifications
Warranty	6 Years
Operating Ambient Temperature	040 C
Dimensions	120 (L) x 120 (W) x 25 (H) mm
Net Weight	185 g
Fan Specifications
Fan Speed	6003000 rpm, PWM controlled 0 rpm below 5 % PWM
Airflow	77 cfm \| 131 m/h
Static Pressure	6.9 mmH2O
Fan Bearing	Fluid Dynamic Bearing
Typical Voltage	12 V DC
Start Up Voltage	3.3 V DC
Current	0.33 A
Cable Length	400 mm + 80 mm Daisy-Chain Cable
Connector	4-Pin Fan Plug + 4-Pin Socket
RGB Specifications
LEDs	12x A-RGB Gen2 LEDs
Current \| Voltage	0.40 A \| 5 V DC
Connector	3-Pin A-RGB Plug + 3-Pin Socket
