Description

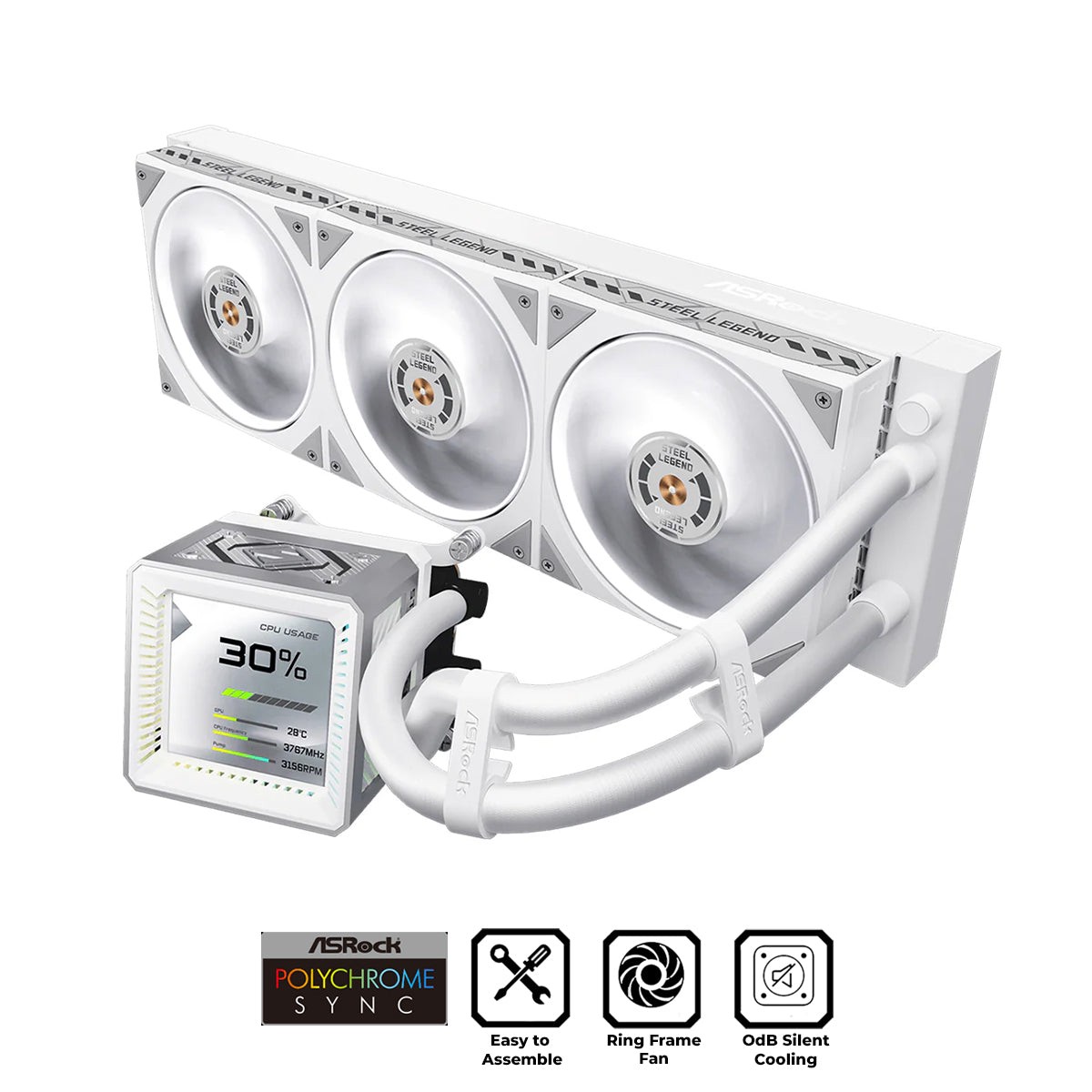

Steel Legend 360 LCD

  • 3.4 Full-Color LCD Display
  • 3-Phase 6-Slot Pump
  • Dual-inlet Cooling Path
  • Industrial-grade Dual-ball Bearing
  • Aerospace-grade LCP Fan
  • RGB Lighting Ecosystem
  • 0dB Silent Cooling
  • IIR+EPDM Tubing
  • Effortless Installation
  • High Conductivity Thermal Grease

Specification:

Model Number 90-ASLA36-WAAGA5
Compatibility AMDAM5, AM4
IntelLGA1851, 1700
Water Block Dimension(L)100.4 x (W)86 x (H)107.6 mm
Material (Cold Plate)Copper
LEDs ARGB
Radiator Dimension(L)397 x (W)120 x (H)27 mm
MaterialAluminum
Pump Speed1200 – 3100 10% RPM
Current/ Voltage0.38A/ 12V
ConnectorPWM (4-Pin)
VRM Fan Dimension(L)70 x (W)70 x (H)25 mm
Speed(Max.) 3000 10% RPM
ConnectorPWM (4-Pin)
Current/ Voltage0.12A/ 12V
Radiator Fan Dimension(L)120 x (W)120 x (H)28 mm
Speed0 – 2500 10% RPM
Air Flow(Max.) 76.7 CFM
Air Pressure(Max.) 4.16 mmH20
Noise(Max.) 38.3 dB(A)
ConnectorPWM (4-Pin)
Current/ Voltage0.30A/ 12V
BearingDual-ball Bearing
Screen TypeIPS LCD
Size3.4
Resolution480 x 480
Display Color24-bit
Brightness250 cd/m
Refresh Rate60 Hz
Frames Per Second (FPS)60 FPS
ConnectorUSB Type-C to Motherboard 9-Pin
Tubing MaterialIIR + EPDM
Length450mm
