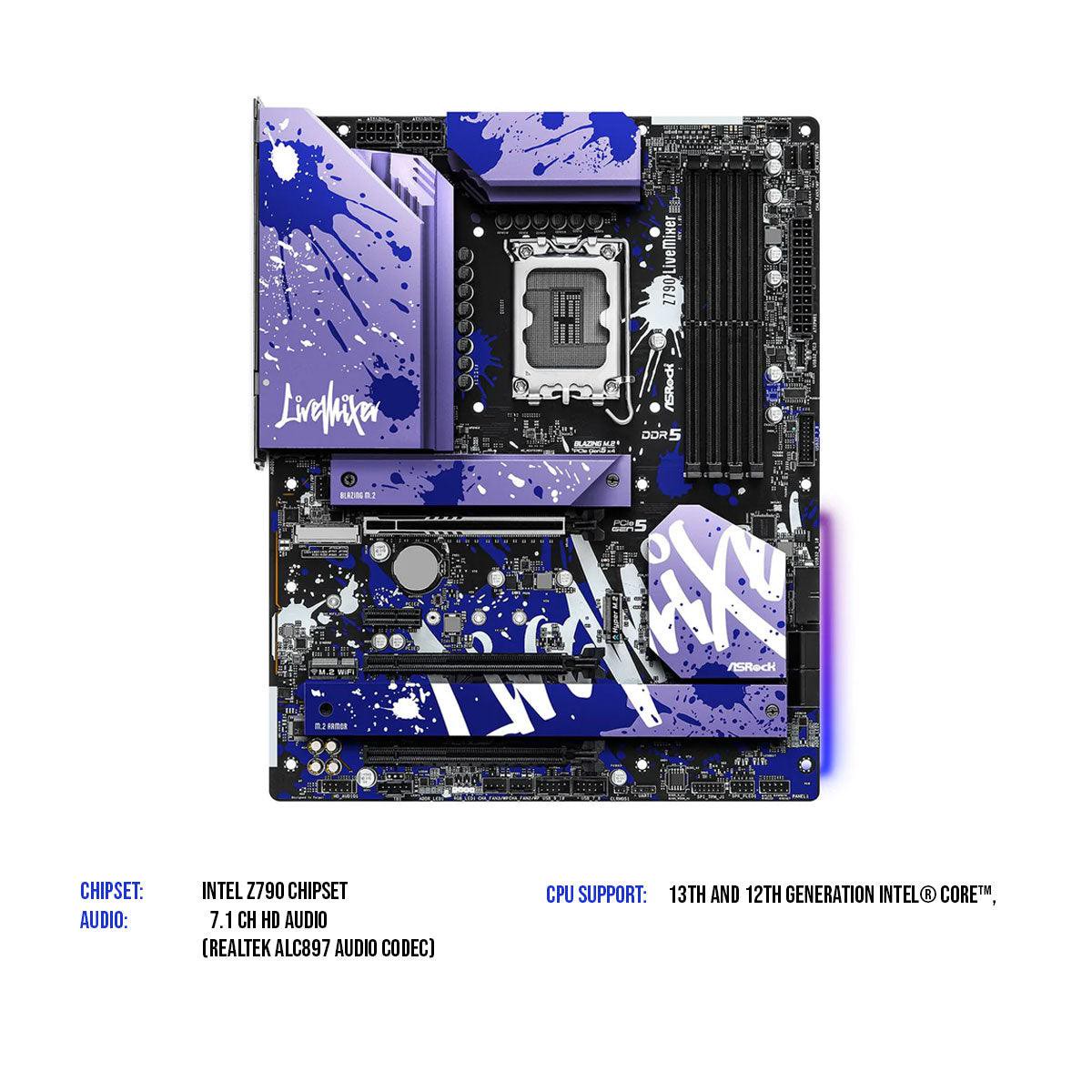

Asrock Z790 Livemixer Motherboard

0 out of 5 based on 0 customer ratings
(0 customer reviews)

Original price was: $943.14.Current price is: $146.00.

SKU: ID35177846694 Category:

Description

LIVE MIX LIFE MAX

LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.

Broadcasting

Users will never run short. Hook up every peripheral, whether its mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.

Content Creation

Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.

– Content Creator
– Video Editing
– Photo Editor
– Game Development

Z790 LiveMixer

  • Supports 13thGen & 12thGen IntelCore Processors
  • 14+1+1 Phase Power Design, SPS for VCore+GT
  • 4 x DDR5 DIMMs, supports up to 7200+(OC)
  • 1 PCIe 5.0 x16, 2 PCIe 4.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-C (Rear), 2 USB 3.2 Gen2 Type-A (Rear), 8 USB 3.2 Gen1 (4 Rear, 4 Front), 10 USB 2.0 (6 Rear, 4 Front)
  • Realtek 2.5G LAN

SPECIFICATIONS:

Unique Feature Superb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
Rock-Solid Durability
– 14+1+1 Power Phase, 60A SPS for VCore+GT with Enlarged Heatsink Armor
– Flexible Integrated I/O Shield
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore
Ultrafast Connectivity
– 2.5G LAN
– ASRock Lightning Gaming Ports
EZ Update
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker
CPU Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology
– Supports Intel Thermal Velocity Boost (TVB)
– Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel Z790
Memory Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
– Max. capacity of system memory: 128GB
– Supports Intel Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Graphics Intel Xe Graphics Architecture (Gen 12)
– 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
Slots CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode*
– 1 x PCIe 3.0 x1 Slot (PCIE2)*
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
– Supports AMD CrossFire

*If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
Supports NVMe SSD as boot disks
Storage CPU:
– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

* Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE1 will downgrade to x8 mode.
M2_1 and M2_2 cannot be populated simultaneously.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB 1 x USB 3.2 Gen2x2 Type-C (Front)
– 2 x USB 3.2 Gen2 Type-C (Rear)
– 2 x USB 3.2 Gen2 Type-A (Rear)
– 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
– 10 x USB 2.0 (6 Rear, 4 Front)
* All USB ports support ESD Protection
Connector 1 x eDP Signal Connector
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 3 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

*Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~5/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O 2 x Antenna Mounting Points
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
– 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
– 4 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports. USB32_45 support Ultra USB Power.)
– 6 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– 1 x Line Out Jack (Gold Audio Jack)
– 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock Dragon 2.5G LAN Software
– ASRock Polychrome SYNC*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories 1 x User Manual
– 2 x SATA Data Cables
– 5 x Screws for M.2 Sockets
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCB
OS Microsoft Windows 10 64-bit / 11 64-bit

*Windows 10 only supports version 21H2 or later
Certifications FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
– CEC Tier II ready
