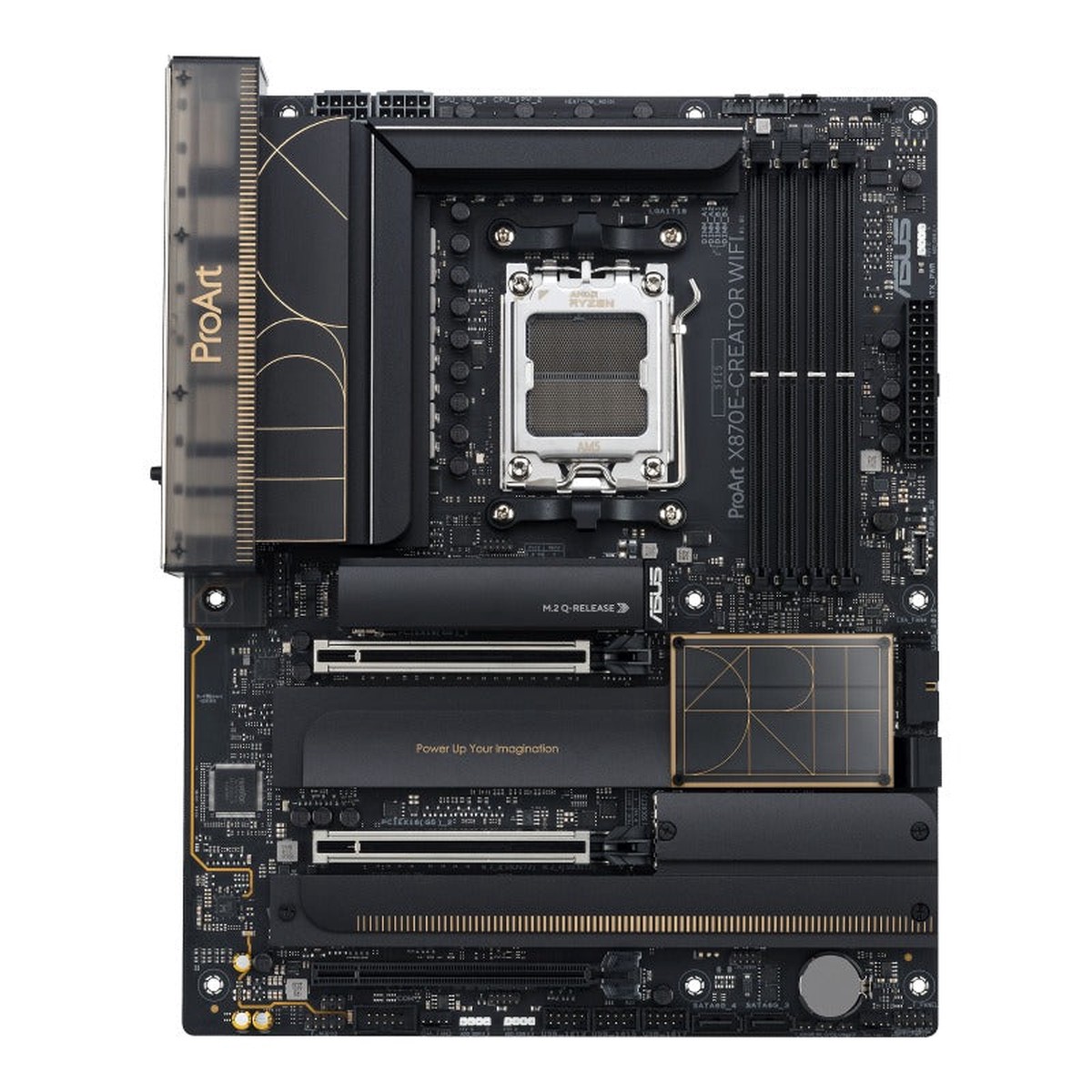

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
| CPU |
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list. |
|
Chipset
|
AMDX870E
|
|
Memory
|
4 x DIMM slots, max. 192GB, DDR5
Supports up to
8000+MT/s(OC) with Ryzen 9000 SeriesProcessors,
8000+MT/s(OC) with Ryzen 8000 SeriesProcessors,
8000+MT/s(OC) with Ryzen 7000 SeriesProcessors,
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles forOverclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate(Speed),and number of DRAM module vary depending on the CPU and memory configuration,for more information refer to www.asus.com for memory support list.
*Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
|
|
Graphics
|
1 x HDMITMport**
2 x USB4(40Gbps) ports support USBType-Cdisplay outputs***
* Graphics specifications may vary betweenCPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI2.1.
*** Supports max. 8K@60Hz as specified inDisplayPort 1.4.
****Output at USB4_EC1 and USB4_EC2, each requires a USB-Cto DisplayPort adaptercable. VGA resolution support depends on processors’ or graphic cards’resolution.
|
|
Expansion Slots
|
AMD Ryzen 9000 & 8000 & 7000Series Desktop Processors*
2 x PCIe 5.0 x16 slots (support x16 orx8/x8 modes)**
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** PCIEX16(G5)_2 shares bandwidth withM.2_2 slot.
-To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
|
|
Storage
|
Total supports 4 x M.2 slots and 4 x SATA6Gb/s ports*
AMD Ryzen 9000 & 8000 & 7000Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supportsPCIe 4.0 x4 mode)
M.2_4 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports bothPCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported byAMD Ryzen 9000series CPU.
**PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
|
|
Ethernet
|
1 x MarvellAQtion 10Gb Ethernet
1 x Intel2.5Gb Ethernet
ASUS LANGuard
|
|
Wireless & Bluetooth
|
Wi-Fi 7*
2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetoothv5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetoothversion may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
|
|
USB
|
Rear USB (Total 11 ports)
2 x USB4 (40Gbps) port(s) (2 x USBType-C)
1 x USB 20Gbps port(s) (1 x USB Type-C)
7 x USB 10Gbps port(s) (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USBType-Cwith up to 30W PD/QC4+)**
1 x USB 5Gbps header(s) support(s) 2additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additionalUSB 2.0 ports
“* USB Type-Cpower delivery output:max. 5V/3.0A”
** USB Type-Cpower delivery output: 5V/9Vmax. 3.0A, 12V max 2.5A, 15V max. 2.0A
|
|
Audio
|
Realtek S1220A 7.1 Surround Sound HighDefinition Audio CODEC*
– Impedance sense for front and rearheadphone outputs
– Internal audio Amplifier to enhance thehighest quality sound for headphone and speakers
– Supports: Jack-detection,Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playbackoutput and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHzplayback*
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Unique de-pop circuit
* Due to limitations in HDA bandwidth,
32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
**A chassis with an HD audio module in the front panel is required to support 7.1Surround Sound audio output.
|
|
Back Panel I/O Ports
|
2 x USB4(40Gbps) port(s) (2 x USBType-C)
1 x USB 20Gbps port (1 x USB Type-C)
7 x USB 10Gbps ports (7 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMITM port
1 x Wi-Fi Module
1 x MarvellAQtion 10Gb Ethernet
1 x Intel2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button
1 xClear CMOS button
|
|
Internal I/O Connectors
|
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USBType-C with up to 30W PD/QC4+)
1 x USB 5Gbps header(s) support(s) 2additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 xThermal Sensor header
|
|
Special Features
|
ASUS 5X PROTECTION III
– DIGI+ VRM (- Digital power design)
– Enhanced DRAM Overcurrent Protection
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/O
ASUS Q-Design
– M.2 Q-Latch
– M.2 Q-Release
– M.2 Q-Slide
– PCIe Slot Q-Release Slim (with PCIeSafeSlot)
– Q-Antenna
– Q-Connector
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA[white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsinks
– VRM heatsink designASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
AURA Sync
– Addressable Gen 2 headers
Bespoke Motherboard Design & BusinessFocused Features
– 24/7 Reliability
– Overcurrent Protection
Front Panel USB 20Gbps with Quick Charge 4+Support
– Support: up to 30W fast charging and USBWattage Watcher
– Output: 5V/9V max. 3.0A, 12V max 2.5A,15V max2.0A
-Compatible with PD3.0
|
|
Software Features
|
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 4 with AI Cooling II
– Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
ProArt Creator Hub
CreationFirst
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey
|
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability
|
WOL by PME, PXE
|
|
Accessories
|
Cables
1 x DisplayPort cable
4 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2 22110
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
1 x M.2 Q-Latch package
1 x M.2 Q-Latch Q-Slide package for M.2backplate
2 x Rubber Packages for M.2
1 x ProArt ruler
Documentation
1 x Quick start guide
1 xACC Express Activation Key Card
|
|
Operating System
|
Windows 11
|
|
Form Factor
|
ATX Form Factor
12inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
