Description

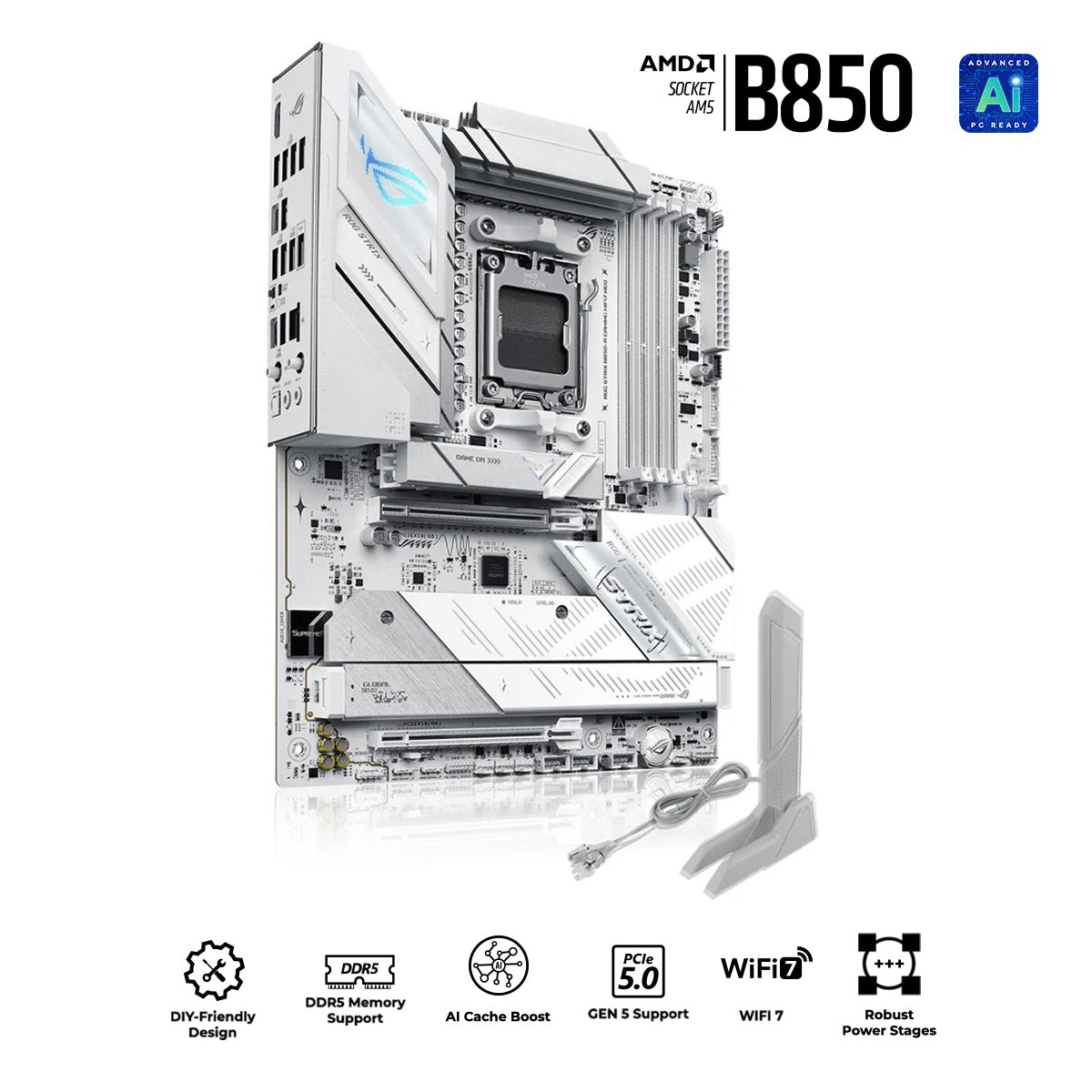

The ROG STRIX B850-A GAMING WIFI7 Neo motherboard features a sleek white PCB and support for AMD Ryzen 9000, 8000, 7000 Series processors, delivering smarter performance and faster connectivity for gaming, creation, and everyday use. Powered by AI technologies including AI Cache Boost, ASUS AI Advisor, AI Networking II, AI Cooling II and AEMP it offers a streamlined setup and optimized performance. With support for up to 23 USB ports, enhanced memory routing, EZ PC DIY design, 64MB BIOS, and Realtek5G Ethernet, users can enjoy seamless setup, future-ready compatibility, and ultra-fast, stable networking.

Specifications:

Model ROG STRIX B850-A GAMING WIFI7 NEO
CPU Support AMD Socket AM5 for Ryzen 9000, 8000, & 7000 Series
Chipset AMD B850
Memory 4 x DIMM, Max. 256GB, DDR5 (Supports up to 9000+MT/s OC)
Graphics 1 x HDMI 2.1 (Supports 4K@60Hz)
Expansion Slots 1 x PCIe 5.0 x16 (Ryzen 9000/7000)
1 x PCIe 4.0 x16 (Supports x4/x2 mode)
Storage 4 x M.2 slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4*)
2 x SATA 6Gb/s ports
Ethernet 1 x Realtek 5Gb Ethernet (ASUS LANGuard)
Wireless & Bluetooth Wi-Fi 7 (2×2, 160MHz), Bluetooth v5.4
Rear USB Ports 4 x USB 10Gbps (2 x Type-A + 2 x Type-C)
6 x USB 5Gbps (Type-A)
2 x USB 2.0 (Type-A)
Audio ROG SupremeFX 7.1 (ALC4080) with Savitech SV3H712 AMP
Internal I/O Headers 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps, 3 x USB 2.0, 3 x Addressable Gen 2, 1 x Thunderbolt (USB4)
Special Features Q-Release (PCIe & M.2), Q-Latch, Q-Antenna, BIOS FlashBack, Clear CMOS
Form Factor ATX (12 inch x 9.6 inch)
