Description

TUF Components

Top marks

With military-grade components, including capacitors rated for 105C operation and up to 170,000 hours lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.

Dual Ball Fan Bearings

2x longer lifespan

Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

Protective PCB Coating

All wrapped up

A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris.

80 Plus Gold Certification

Heart of gold

The TUF Gaming 1000W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation affording it 80 PLUSGold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

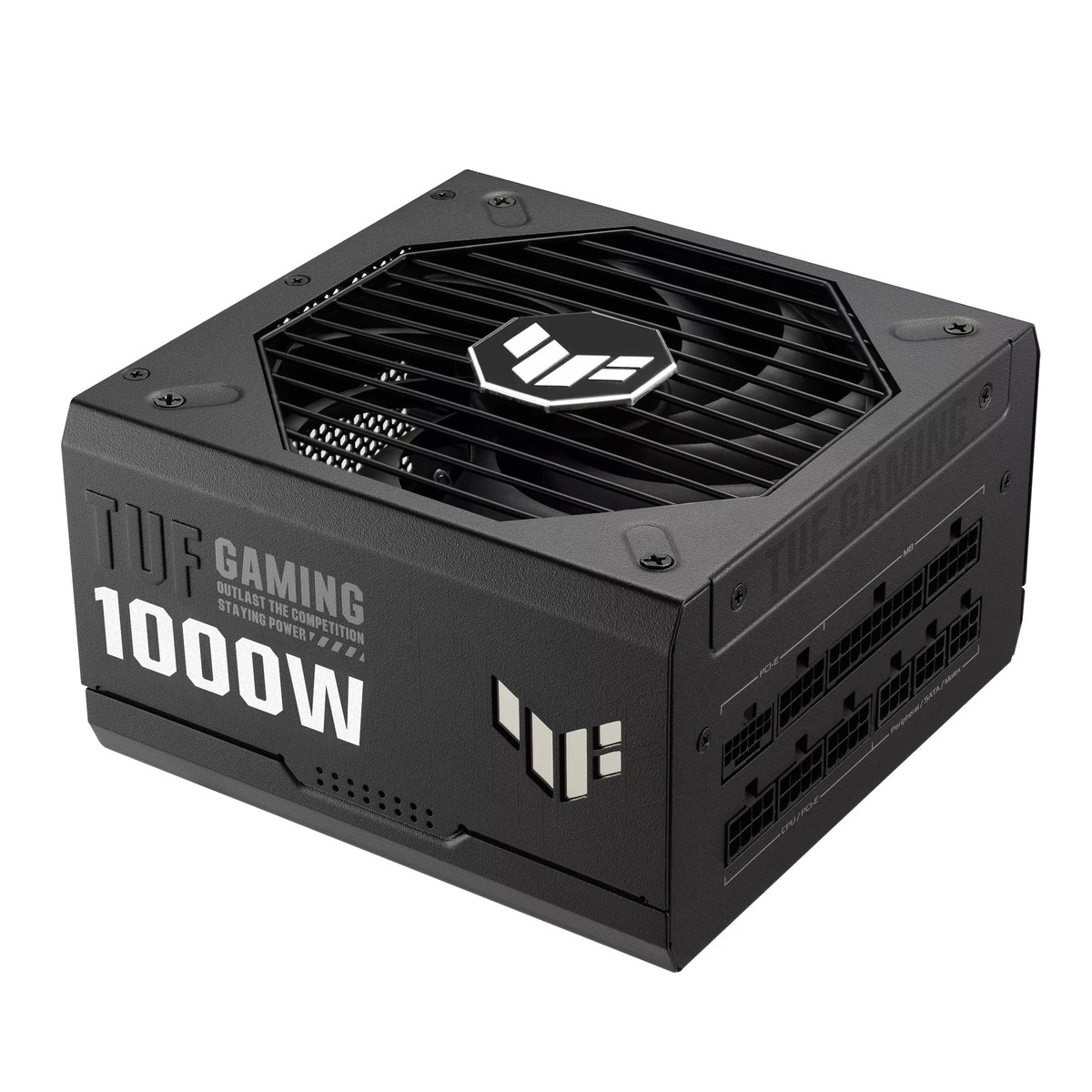

Model : TUF Gaming 1000W GoldIntel Form Factor : ATX12VATX 3.0 : YesDimensions : 150 x 150 x 86 mmEfficiency : 80Plus GoldProtection Features : OPP/OVP/UVP/SCP/OCP/OTPHazardous Materials : ROHSAC Input Range : 100-240VacDC Output Voltage : +3.3V +5V +12V -12V +5VsbMaximum Load : 25A25A83.3A 0.8A 3ACombined Load : 130W 130W 1000W 9.6W 15WTotal Output : 1000WConnectors

• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1
• PCI-E 8-pin x 4
• SATA x 5
• PERIPHERAL x 4

Package Contents :

• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (650mm)
• PCI-E Gen 5 16-pin Cable x 1 (675mm)
• PCI-E 1-to-1 Cable x 2 (675mm)
• PCI-E 1-to-2 Cable x 1 (675mm)
• SATA 1-to-2 Cable x 1 (400+120mm)
• SATA 1-to-3 Cable x 1 (400+120+120mm)
• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
• TUF Gaming Cable tie x 3
• User Manual x 1

Weight2.48kg (single PSU)0dB Fan ButtonNo
