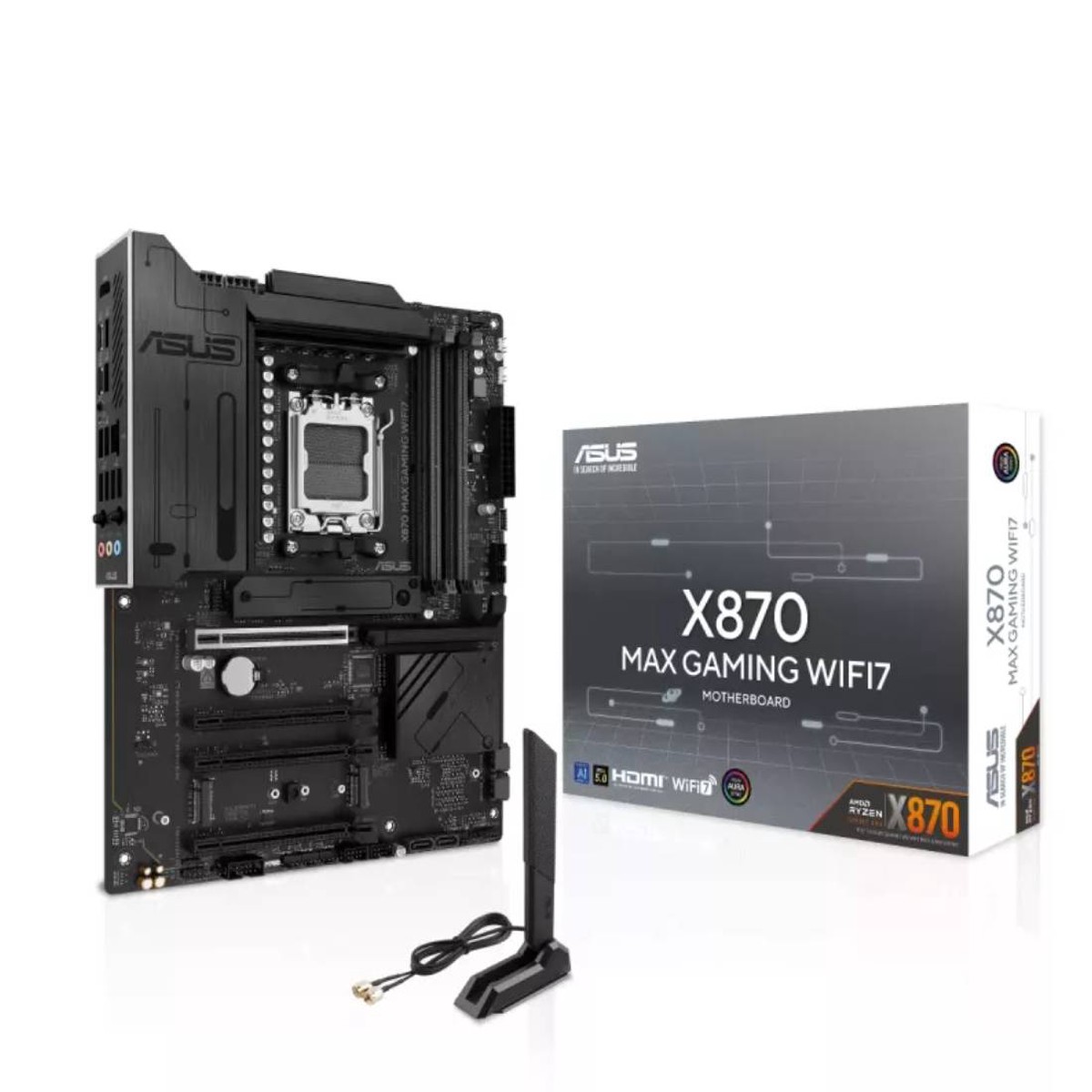

Asus X870 WIFI7 Max Gaming Motherboard –
Original price was: $391.23.$147.00Current price is: $147.00.
Description
| CPU | Supports AMD Ryzen 7000, 8000, and 9000 series desktop processors (AM5) |
| Socket | AM5 |
| Back Panel I/O | 2 USB4 (40Gbps) TypeC 1 USB 10Gbps TypeA 3 USB 5Gbps TypeA 4 USB 2.0 TypeA 1 HDMI 2.1 1 Realtek 2.5Gb Ethernet (RJ45) Wi-Fi antenna ports 3 3.5 mm audio jacks BIOS FlashBack button (Possibly Clear CMOS or other buttons as per board design) |
| Memory Slots | 4 DDR5 DIMM slots (dual-channel) Maximum capacity: 256GB Support for high overclocked speeds (8000+ MT/s OC) Support for ECC / non-ECC unbuffered DIMMs |
| Storage Expansion | 3 M.2 (Key M) slots M.2_1: PCIe 5.0 x4 (for Ryzen 7000/9000) M.2_2: PCIe 4.0 x4 (may share bandwidth with USB4) M.2_3: PCIe 4.0 x4 (via chipset) 4 SATA III (6Gb/s) ports RAID support: Ryzen 9000: RAID 0/1/5/10 Ryzen 8000: RAID 0/1 Ryzen 7000: RAID 0/1/10 |
| Internal I/O | 24pin main ATX power connector 2 8pin + optional additional CPU power connectors Fan / cooling headers: CPU Fan, CPU_OPT, AIO Pump, multiple chassis fan headers USB headers: 1 USB 20Gbps header (Type-C) 1 USB 5Gbps header (supports 2 ports) 2 USB 2.0 headers (support 4 ports) 3 Addressable RGB (ARGB Gen2) headers Clear CMOS header COM header TPM / SPI header Front panel audio (F_AUDIO) header S/PDIF Out header System panel header (Power, Reset, LEDs, etc.) |
| Front Panel I/O | Support for front USB TypeC (20Gbps) via internal header Support for front USB 5Gbps and USB 2.0 via headers Front panel audio via header Power / reset / LED / chassis intrusion / system panel header |
| Audio | Realtek 7.1 HD Audio codec Supports up to 24-bit / 192 kHz playback Features such as jack detection, multi-streaming, audio shielding, premium capacitors, dedicated audio PCB layer |
| Wireless | WiFi 7 (22) supporting 2.4 / 5 / 6 GHz bands (up to ~2.9Gbps) Bluetooth v5.4 |
| Software | Armoury Crate, Fan Xpert 4, AI Cooling II, AI Advisor, Aura Creator / Sync, driver and firmware tools, BIOS features (FlashBack, UEFI) |
| Dimensions | ATX form factor: 305 mm 244 mm |
