Description

ZenWiFi

WiFi Coverage Everywhere. Always Secure.

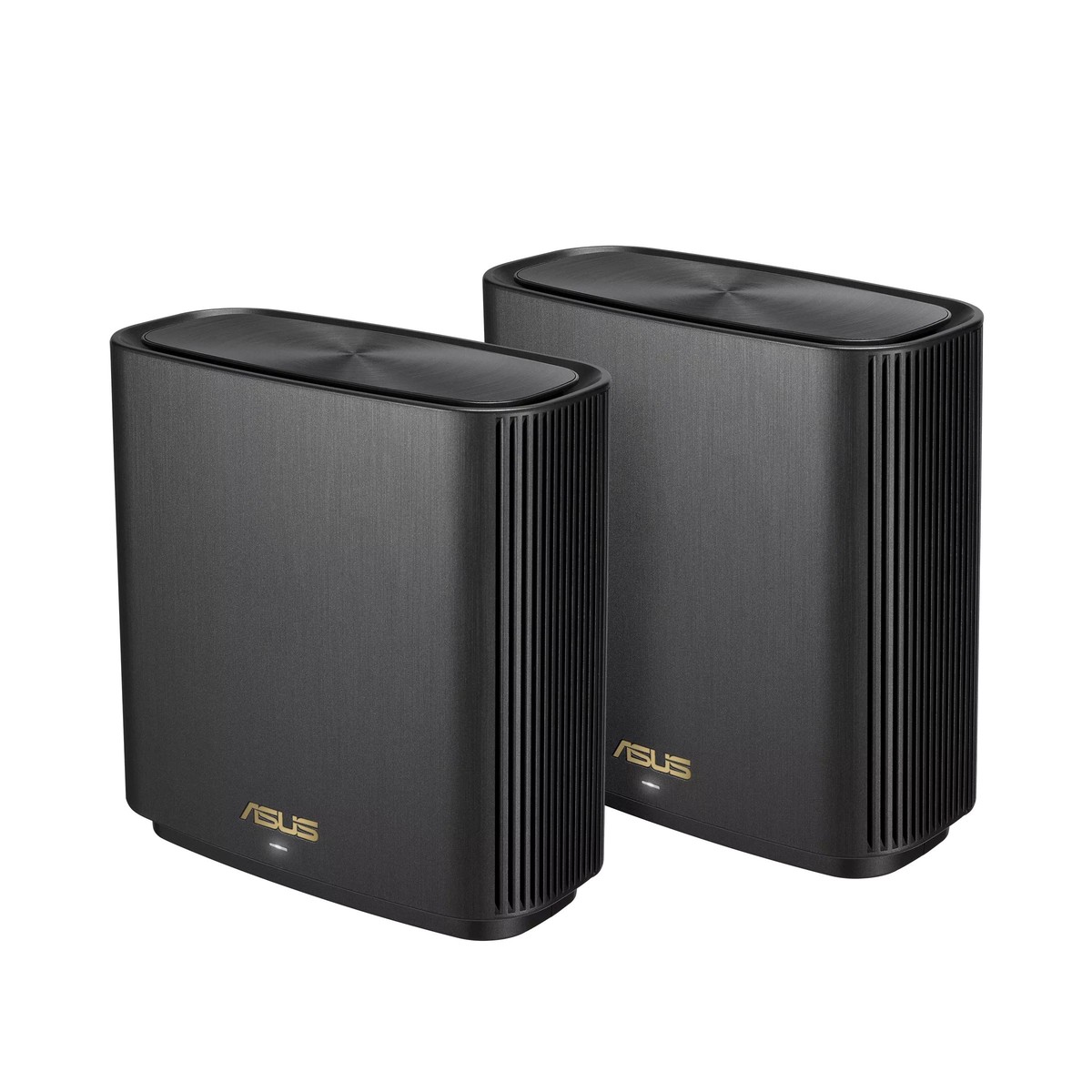

ZenWiFi AX (XT8) is a whole-home mesh WiFi system that combines extremely fast and stable wireless networking performance with simple configuration and elegant design. Featuring the latest WiFi 6 technology, a tri-band design and an optimized antenna placement, ZenWiFi AX takes mesh WiFi to a whole new level with dramatically improved coverage, speed and stability. Updated AiMesh technology makes setting up a mesh WiFi network simpler than ever, yet offers advanced, in-depth controls for users who want to configure their network to their specific needs. With its elegant design, ZenWiFi AX blends easily with any dcor, fitting as easily in the living room as the home office.

• BanishWiFi Dead ZoneTri-band mesh WiFi system with unique antenna placement delivers strong WiFi to every corner of your home, providing total wireless speed of 6600Mbps.
• Next-Gen Wi-Fi 6 Technology With OFDMA and MU-MIMO, ZenWiFi AX enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time.
• Hassle Free Control 3 steps setup and easy management with ASUS Router App
• Always Up-to-date Protection The lifetime free network security powered by Trend Micro makes sure your privacy on connected devices is protected.
• AiMeshSupported Mix and match ZenWiFi with AiMesh-compatible routers to form powerful and flexible whole-home WiFi system

Whole-home Coverage

High speed tri-band. Stable WiFi.

The ZenWiFi AX system comes with two ASUS AX6600 WiFi 6 routers that together cover up to 5500 sq. ft. or approximately six rooms. With their extended coverage, plus a tri-band design with configurable back-haul technology, you’ll enjoy a super-fast, reliable and secure WiFi connection, whether you’re in the living room or outside in the garden.

ZenWiFi AX provides 160MHz* bandwidth and 1024-QAM* for dramatically faster wireless connections. With a total networking speed of 6600 Mbps, ZenWiFi AX is up to 2.2X faster than tri-band AC3000 (WiFi 5) routers **.

*The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
* Compatible WiFi 6 device required.
** The data compares speed of 4×4 11ax on 5GHz 160MHz bandwidth with 1024QAM modulation to speed of 4×4 11ac on 5GHz 80MHz with 256QAM modulation.

SPECIFICATION

Network StandardIEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6Product SegmentAX6600 ultimate AX performance574+1201+4804MbpsAX technologyYesData Rate802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 1201 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 MbpsAntennaInternal antenna x 6Transmit/Receive2.4GHz 2×2
5GHz-1 2×2
5GHz-2 4x4Memory256 MB Flash
512 MB RAMBoosts speedOFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.Operating Frequency2.4G Hz, 5 GHz-1, 5 GHz-2PortsRJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
USB 3.1 Gen 1 x 1ButtonWPS Button, Reset Button, Power SwitchLED IndicatorPower x 1Power SupplyAC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
DC Output : 12 V with max. 3 A currentPackage contentZenWiFi AX
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty CardProduct Weight (g)716 gAiMeshAiMesh
Primary AiMesh router
AiMesh nodeRouter APPASUS Router APPAlexaSupport Alexa skillAiProtectionAiProtection Pro
Malicious site blocking
Two-Way IPS
Infected Device Prevention and BlockingParental ControlParental ControlTraffic ControlAdaptive QoS
Traffic Monitor
Traffic AnalyzerWirelessIPv6
Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : Max 9 rules
WPS
WiFi MAC address filter
Maximum MAC filters : Max 64 rules
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamformingWANDual WAN
3G/4G LTE dongle
DMZ
DDNS
Let’s Encrypt
Safe browsing
DNS-over-TLSLANIGMP snooping
IPTVVPNVPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Fusion
VPN Server WireGuardUSB applicationFile System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
