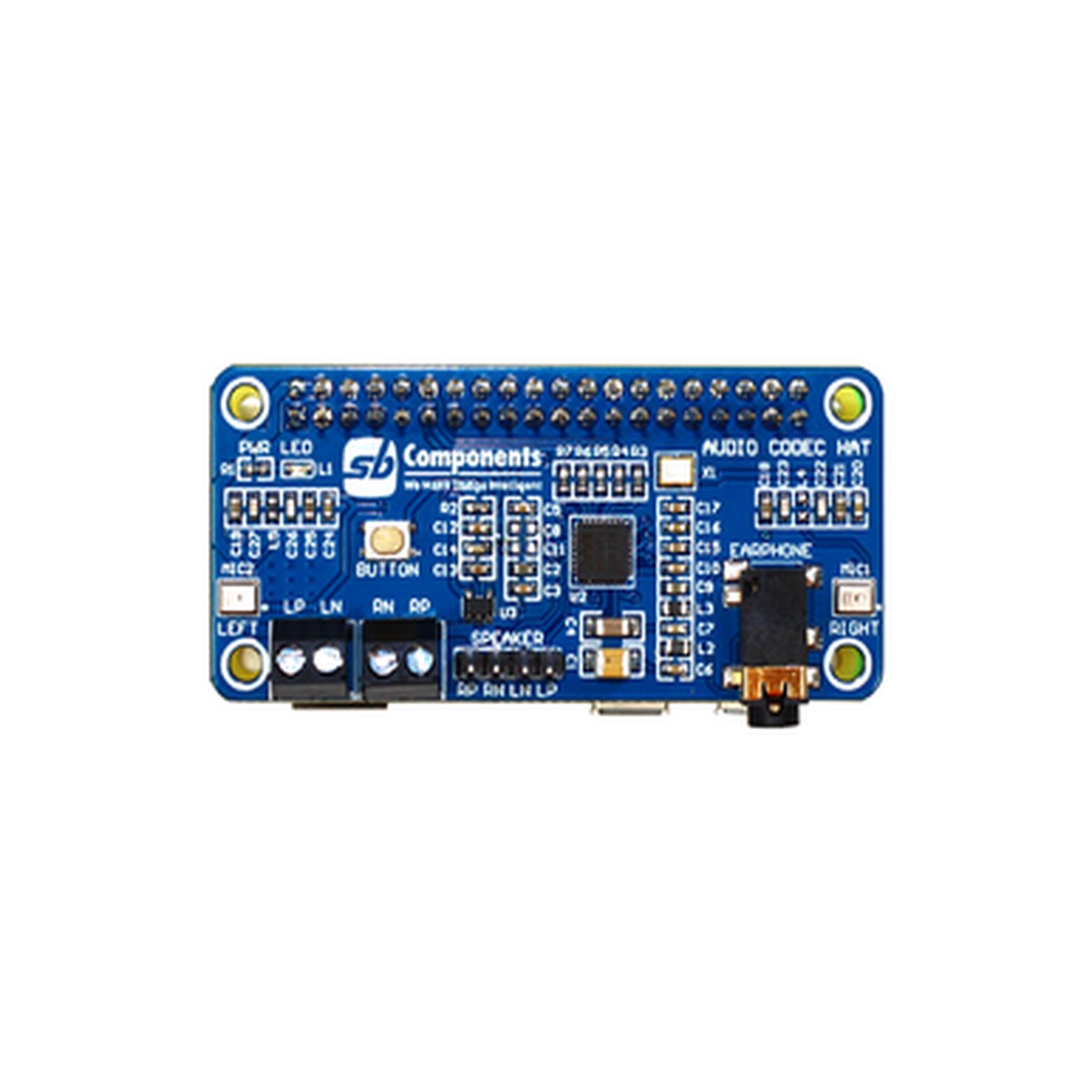

Audio Codec HAT for Raspberry Pi

Description

Description Videos Show Reviews Audio Codec HAT is a low power, high quality stereo CODEC designed for portable digital audio applications which is based on WM8960 IC that have the advantages like Low leakage, excellent PSRR and pop/click suppression mechanisms which allow direct battery connection to the speaker supply. Flexible speaker boost settings allow speaker output power to be maximized while minimizing other analogue supply currents. Specifications Codec Module WM8960 Onboard 3.5 mm Jack, Dual Channel Speaker Interface Power Supply 5V Logic Voltage 3.3V Earphone Drive 40MW (16 @3.3V) Communication Interface I2C Audio Interface I2S Speaker Driver 1W Per Channel (8 BTL) Resources STEP File Product Dimension 3D PDF File Schematic File GitHub Videos Hide Videos Show Videos Audio Codec HAT for Raspberry Pi Low Power Consumption | Stereo Encoding/Decoding | Dual-Channe… 0 Reviews Hide Reviews Show Reviews
