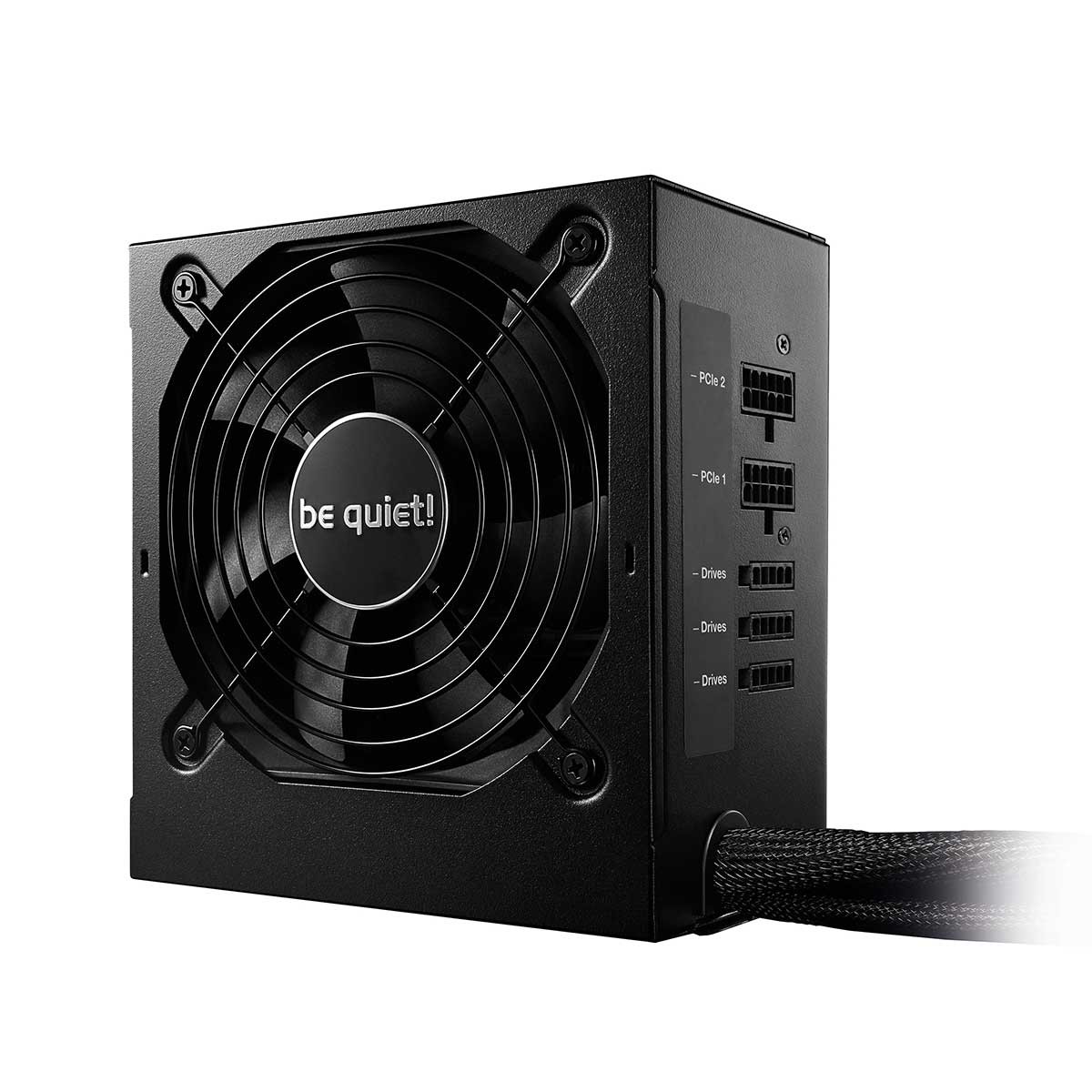

Be Quiet! System Power 9 700W 80+ Bronze Semi-Modular Power Supply (SM-CM-700W)
Original price was: $209.35.$104.68Current price is: $104.68.
Description
SYSTEMPOWER 9 CM
700W
Proven reliability and good efficiency
be quiet! System Power9CM 700Woffers renowned be quiet! reliability and quietness for cost-effective and reliable systems.
- Rock-solid stability with 2 strong 12V-rails
- DC-to-DC technology for tight voltage regulation
- 4 PCIe connectors for powerful GPUs
- Temperature-controlled 120mm fan reduces system noise
- Stand-by drain of less than 0.15 watts
- 80 PLUSBronze efficiency (up to 89%)
- Semi-modular, high-quality sleeved and flat cables
- All-in-one cable with S-ATA, HDD and FDD connectors
- Complete suite of top safety features
- Meets latest IntelC6/C7, ErP and Energy Star 6.1 guidelines
General data
| Model | System Power 9 CM 700W |
| Continuous power(W) | 700 |
| Peak power (W) | – |
| Form factor | Version 2.51 |
| Form factorEPS 12V | Version 2.92 |
| Topology | DC/DC |
| Digitally controlled | – |
| Voltage(Vac) | 200 – 240 |
| Frequency (Hz) | 50 |
| Input current (A) | 6 |
| Power factor at 100% load | >0.95 |
| Modernstandby | – |
| Power consumption instandby(W) | <0.15 |
| Average life time (h / 25C) | 100,000 |
| Operating temperature up to (C) | 40 |
Infographics
Efficiency
| 80 PLUScertification | Bronze |
| Efficiency(%) at 230V, 2% load | – |
| Efficiency(%) at 230V, 10% load | 84.9 |
| Efficiency(%) at 230V, 20% load | 88 |
| Efficiency(%) at 230V, 50% load | 89 |
| Efficiency(%) at 230V, 100% load | 86 |
Fan and cooling technology
| Cybenetics Noise Rating | – |
| Fan | High quality fan |
| Fan size (mm) | 120 |
| Bearing technology | Sleeve |
| Motor technology | 4-pole fan motor |
| Max. fan speed (rpm) | 2100 |
| dB(A)at 10% load | 9.7 |
| dB(A)at 20% load | 9.7 |
| dB(A)at 50% load | 14.1 |
| dB(A)at 100% load | 31.7 |
Output
| Multi-rail operation (12V rails) | 2 |
| 12V single rail operation | – |
| Overclocking key | – |
| +3.3V (A) | 24 |
| +5V (A) | 15 |
| +12V1 (A) | 33 |
| +12V2 (A) | 25 |
| +12V3 (A) | – |
| +12V4 (A) | – |
| +12V5 (A) | – |
| +12V6 (A) | – |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max.combined power12V (W) | 672 |
| Max.combined power12VHPWR (W) | – |
| Max.combined power3.3V + 5V (W) | 130 |
| Hold-up timeat 100% load (ms) | 17.0 |
| Hold-up timeat 80% load (ms) | 22.0 |
| Power good signal (ms) | 100 – 150 |
Cables and connectors
| Modular cables | – |
| Sleeved cables | P24,P4+4 |
| Flat cables | PCIe/ drives |
| Maximum cable length (cm) | 103 |
| Cable length to motherboard (cm) | 55 |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8(CPU) | – |
| P4(CPU) | – |
| 12VHPWR cables | – |
| PCI-e6+2-pin (GPU) | 4 |
| PCI-e6-pin (GPU) | – |
| SATA | 10 |
| PATA | 2 |
| FDD(Floppy) | 1 |
Protection
| OTP(over temperature protection) | |
| OCP(over current protection) | |
| OPP(over power protection) | |
| SCP(short circuit protection) | |
| OVP(overVoltageprotection) | |
| UVP(underVoltageprotection) | |
| SIP(Surge & Inrush protection) |
Safety certification
