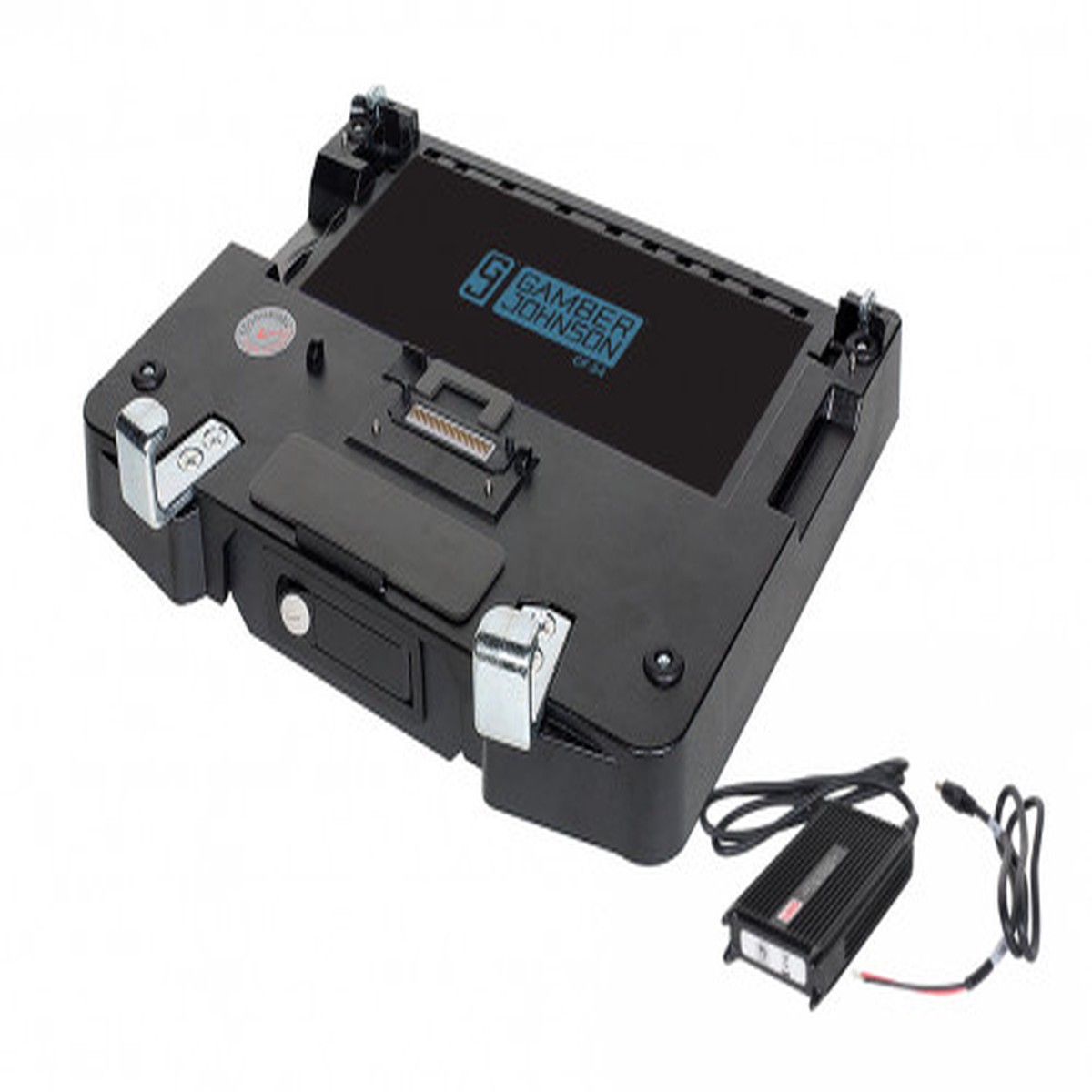

CF-54 DOCKING STATION KIT – includes NO RF Dock for Panasonic Toughbook 54 with LIND EXTERNAL Power supply 14103 – 7170-0250 | 7170-0250

Description

CF-54 DOCKING STATION KIT – includes NO RF Dock for Panasonic Toughbook 54 with LIND EXTERNAL Power supply 14103 Gamber-Johnson part number 7170-0250.SpecificationsWeight8.50 lbs. / 3.9 kgHeight3.50 in / 8.9 cmWidth13.48 in / 34.2 cmDepth11.85 in / 30.1 cmFeaturesDesigned to MIL-STD 810G test procedures and complies with FCC Class A standards Small footprint – designed to maximize available space inside of vehicle Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify a product as TOUGHBOOK Certified Rear-facing l/O ports, integrated cable strain relief system, and convenient cable management system Spring-loaded docking connector to ensure connectivity in the roughest terrain Front safety bracket and rear corners ensure proper alignment and docking connectivity Spring-loaded plate protects RF connector from damage when computer is not in the docking station. Plate draws back into the docking station when the computer is docked. This docking station accommodates the optional modular expansion area on the TOUGHBOOK 54/55 computer Special access area for smart card reader makes it easy to insert and eject card Push button latch with keyed lock for theft deterrence: Product DetailsModel: TOUGHBOOK 54/55Device OEM: PanasonicWarranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options AvailablePower Supply: Includes external Lind 120W auto bare wire leads power supply (Item No. 7300-0461)Testing Specifications: TOUGHBOOK Certified, RoHS, FCC C-Tick, E-Mark, Vibration Testing: MIL-STD 810G 514.5, Docking Handle Tested: 10,000 cycles, SAE Standard J1455 Crash TestPort Replicators: Ethernet – RJ45, Fully Powered USB 3.0 (2) – 9 pin, VGA – D-sub 15 pin, HDMI – 19 pin, Serial – D-sub 9 pin, Input Voltage – 15.6 V DC, RF SwitchAntenna Pass-through: No RFDevice Type: LaptopIndustry: Fire/Rescue, Public Safety, UtilityPort Replication: FullSub Type 1: Docking KitDownloadsProduct Sheet (PDF)Installation Guide (PDF)Testing Summary (PDF)
