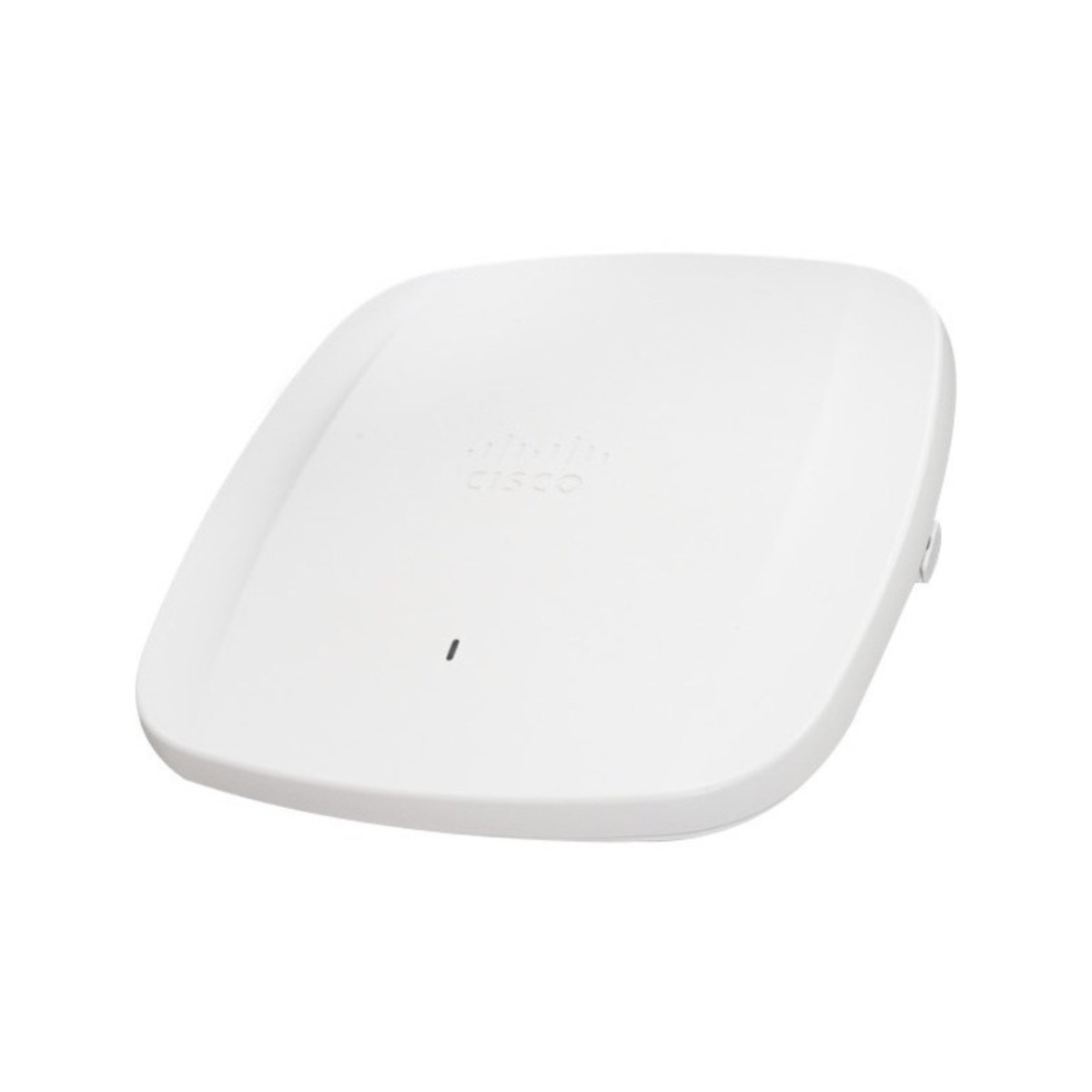

Cisco Meraki Catalyst 9166D1 Tri Band Wireless Access Point

The Cisco Meraki Catalyst 9166D1 Tri Band Wireless Access Point is a high-performance, enterprise-grade AP designed to deliver exceptional Wi-Fi connectivity in demanding environments, including K-12 schools. It offers exceptional throughput, coverage, and security, making it an ideal choice for educational institutions.

Key Features:

• Tri-band Wi-Fi 6E: Provides faster speeds and increased capacity, supporting a larger number of devices and applications.
• Enhanced coverage: The Catalyst 9166D1 offers excellent coverage, making it suitable for both indoor and outdoor use.
• Advanced security: Cloud-based management platform provides security features to protect against threats and ensure educational compliance.
• Easy management: Centralized cloud management simplifies network administration, reducing IT overhead and improving efficiency.
• Scalability: The Catalyst 9166D1 is highly scalable, allowing you to easily expand your network as your school’s needs grow.

Technical Specifications

Wireless LAN Standard: IEEE 802.11ax
Bluetooth Standard: Bluetooth 5.1
Network Band: Tri Band
Frequency Band: 2.40 GHz, 5.0 GHz, 6.0 GHz
Wireless Transmission Speed: 7.78 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes

Interfaces/Ports

Ethernet Technology: Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
USB: Yes
USB Standard: USB 2.0
Management Port: Yes

Network & Communication

Wi-Fi Generation: Wi-Fi 6E

Physical Characteristics

Form Factor: Ceiling Mountable
Antenna Form Factor: Internal
Height: 9.5″
Width: 9.5″
Depth: 2.3″
Weight (approximate): 3.50 lb
