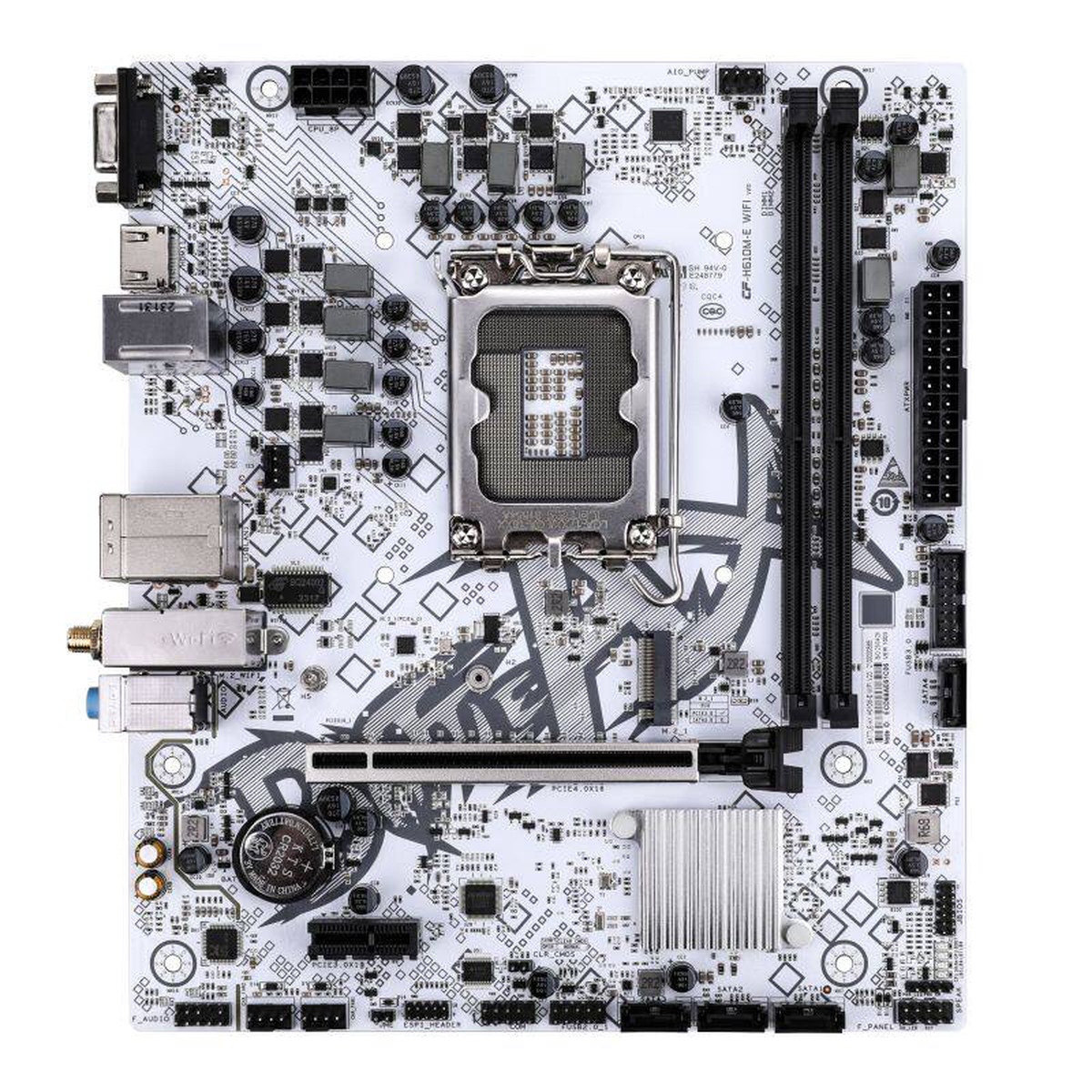

Colorful Battle-AX H610M-E WiFi V20 DDR4 Intel Motherboard White
Original price was: $225.25.$112.63Current price is: $112.63.
Description
BATTLE-AX H610M-E WIFI V20
Feature Highlights:
- Intel H610 chipset
- Support dual-channel DDR4-3200MHz memory
- Provide 1 PCIe 3.0 x4 M.2 SSD slot
- Equipped with HDMI+VGA display interface
- Equipped with Realtek 8111H Gigabit wired network card, RTL8821CE/AC3165/AW-CB231NF WiFi 5 Wireless network, Bluetooth 4.2
- Realtek ALC897 sound card chip with up to 5.1 channels
- Rear: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
- Front: 2 USB 3.2 Gen 1 Type-A interfaces, 2 USB 2.0 interfaces
Specification:
| Model | BATTLE-AX H610M-E WIFI V20 |
|---|---|
| Product Series | BATTLE-AX series |
| Chipset | Intel H610 |
| Processor | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor (* Please visit www.colorful.cn for the latest memory compatibility list) |
| Memory | 2 DDR4 memory slots are provided, which can support up to 64 GB of memory (a single slot can support up to 32 GB of memory) – DDR4-3200/2933/2666/2400MHz memory – support dual-channel memory technology (* Please visit the official website of Rainbow for the latest memory compatibility list) |
| SATA Ports | A total of 1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces are supported – M2_ 1 slot: supports 2242/2280 specification M.2 SSD (PCIe 3.0 x4, PCH channel) |
| Board I/O | Rear I/O: – 1PS/2 interface – 4USB 2.0 interfaces – 2USB 3.2 Gen 1 Type-A interfaces – 1HDMI 2.0 interface, Up to 4K 60Hz resolution – 1VGA interface – 1Gigabit network interface – 3Audio interfaces (audio input/audio output/microphone) On board: – 1CPU fan pin – 2System fan pins – 1water cooling pump pin – 1USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces – 1USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces – 1Front audio pin – 1Front panel pin – 1Speaker pin – 1COM port pin – 1ME write protection jumper – 1Clear CMOS jumper – 1BIOS burner pin – 1POST Card pin – 1Wake-up control jumper |
| Expansion Slots | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| BIOS | 128M UEFI, supporting multiple languages |
| Power Management | Support S3, S4, network S5 wake-up, support timed startup, call startup |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit network card, RTL8821CE/AC3165/AW-CB231NF WiFi 5 Wireless network, Bluetooth 4.2 |
| Audio | 5.1 sound card |
| Configuration | M-ATX 225mm x 194mm |
