Sale!

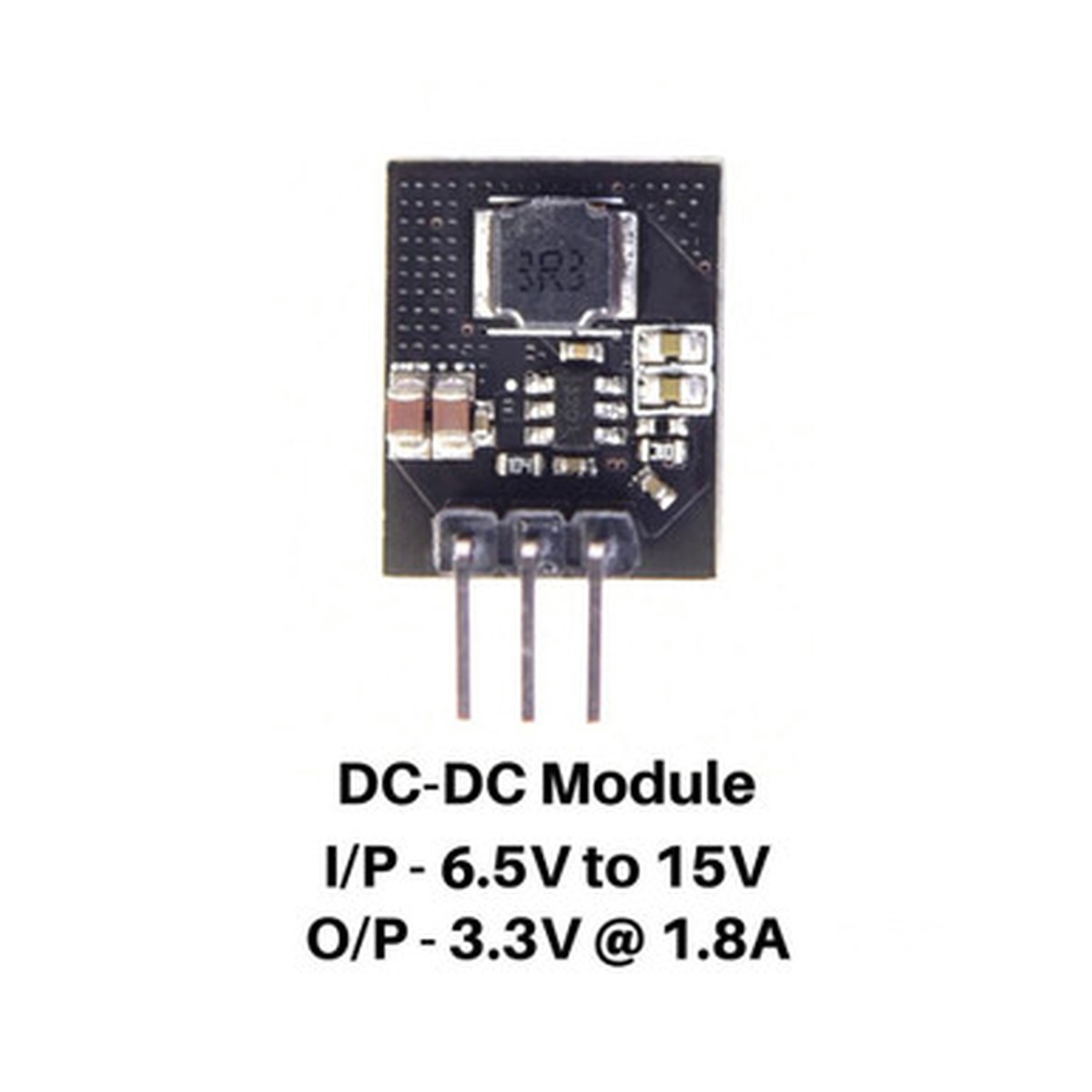

DC-DC LDO 3.3V – DC-DC Converter, 3.3V 1.8A Output, 4.5V to 15V DC Input
Original price was: $14.00.$6.00Current price is: $6.00.
Description
Description Show Reviews DC-DC Buck Module 3.3V 1.8A Output 4.5V to 15V DC Input -CE-DC-DC-LDOA-3.3 DC-DC LDO is a DC-DC Module with a TO-220 form factor. This is designed to replace existing Linear regulators in use, like LM7805, etc, and is pin-to-pin compatible. The main advantage of using this DC-DC is to reduce the heat generated in the Linear Regulator(LDO) and reduce the size of the design as now you will not need to put a separate heatsink on your board. Technical Specification Made in India Uses Texas Instruments DC-DC Converter IC Compact size: 16mm x 13mm Input Voltage: 4.5V to 15V DC Output Voltage: 3.3V Peak Efficiency: >91% Continuous Current: 1.8A for 3.3V Peak Current: 3A DC-DC operates at ~600Khz Protections: O/P short circuit(hiccup)/Thermal 100% of modules are tested in India at full load before shipping We will be coming up with other modules with high input voltage range soon Pinout Details Part Number I/P Voltage Output Voltage Current Power CE-DC-DC-LDOA-3.3 4.5V to 15V DC 3.3V 1.8A ~6W 0 Reviews Hide Reviews Show Reviews
