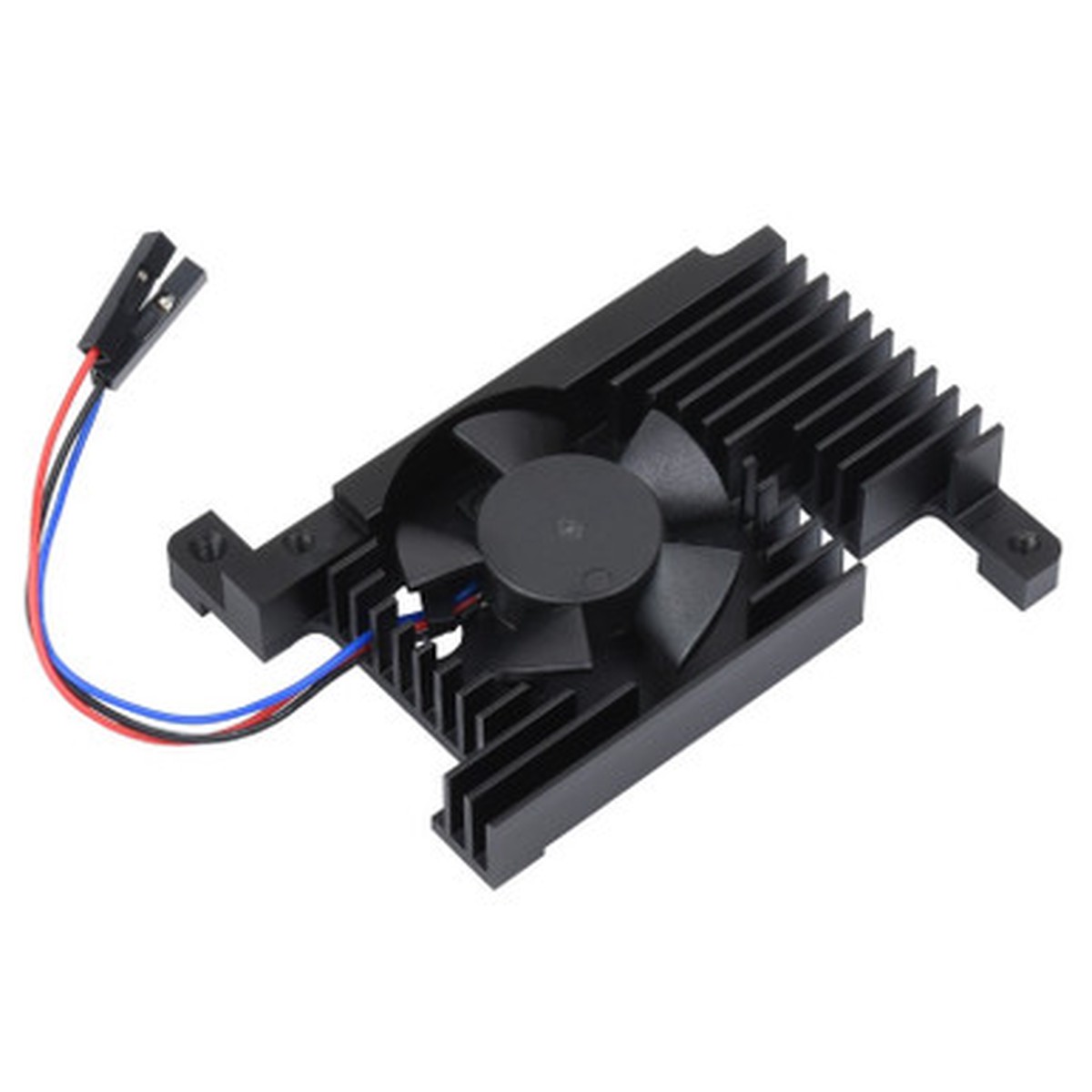

Dedicated All-In-One Aluminum Cooler for Raspberry Pi 4B, PWM, with Fan Adapter

Description

Description Show Reviews Waveshare 22931 – Dedicated All-In-One Aluminum Alloy Cooling Fan For Raspberry Pi 4B, PWM Speed Adjustment, Better Cooling, Low Noise, Space Saving -PI4-FAN-PWM-B w/ Fan Adapter V2 – PI4-FAN-PWM-B All-in-one, More convenient, Space efficient Low Noise, More Practical, With Thermal Tapes Matching With The Pi 4B On Size And Mounting Holes, Fast Heat Dissipation, Lightweight And Silent Specifications Supported Pi Raspberry Pi 4 Model B 1GB/2GB/4GB/8GB Version Power supply DC 5V input (can be powered from Raspberry Pi) INTERFACE 3-wire PWM speed-adjustable fan header rated power 0.3W (5V, 0.60.02A) Cable length 8010mm Fan 550010%RPM Includes PI4-FAN-PWM x1 Silicone thermal tape x4 and Screw x2 FAN Adapter V2 x1 Weight: 0.048 kg Raspberry Pi 4B Cooling Solution Comparing How To Install 1. Paste thermal pad to Raspberry Pi 4B as shown 2. Fix PI4-FAN-PWM with screws from the back of the Raspberry Pi 3. Connect the cables to GPIO. Red cable to 5V. Black to GND and Blue one to PWM pin(TXD/GPIO12/GPIO18 selectable) 4. When used with FAN Adapter, connect the cable as picture above, the default PWM pin is D12(GPIO12) ,You can switch to TXD or D18(GPIO18) by modifying the 0R resistor. Heat Sink Introduction Outline Dimensions Resources Wiki: www.waveshare.com/wiki/PI4-FAN-PWM 0 Reviews Hide Reviews Show Reviews
