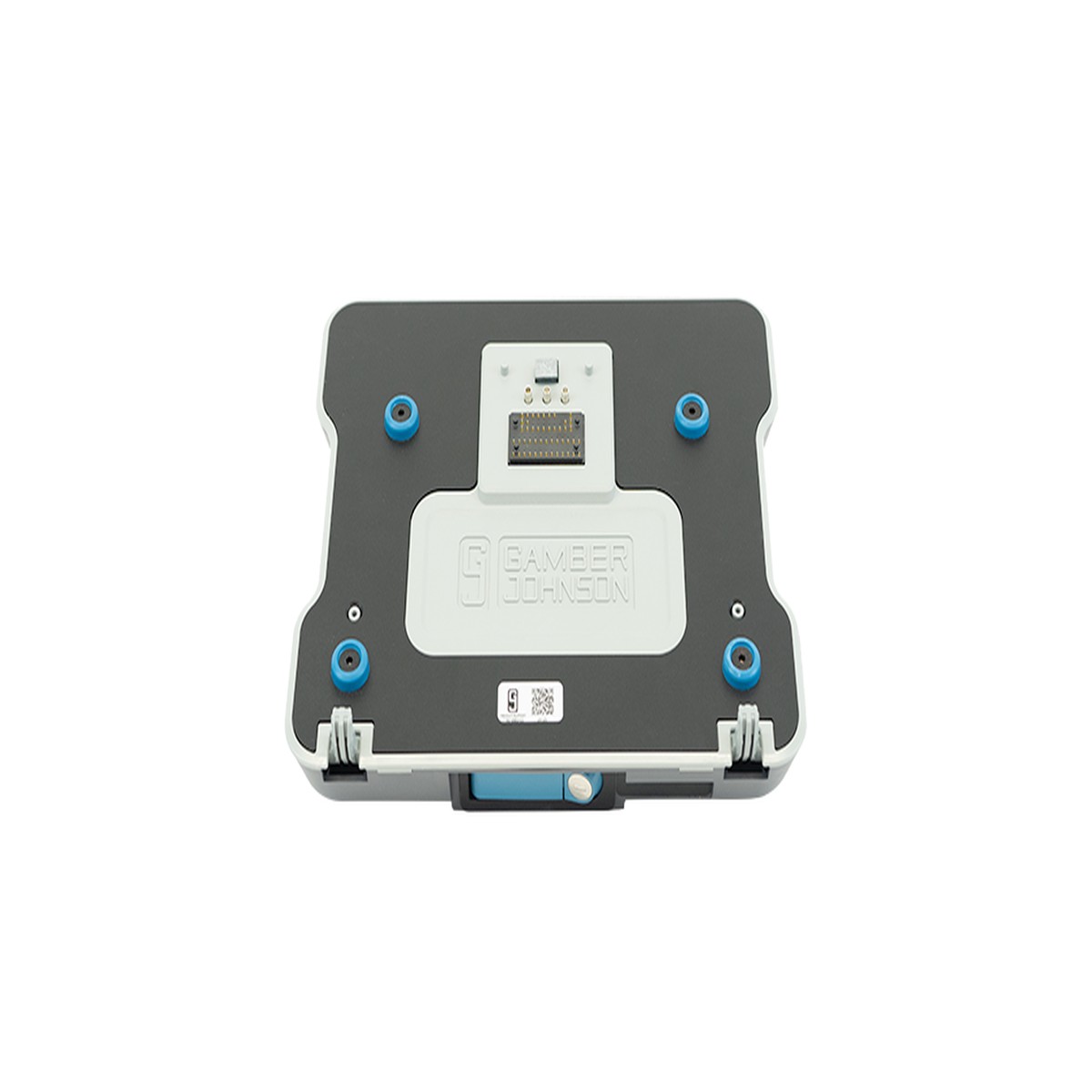

Dell Rugged Laptop Vehicle Docking Station, Full Port, Tri RF

Description

Dell Rugged Laptop Vehicle Docking Station, Full Port, Tri RF Gamber-Johnson part number 7160-1982-13.SpecificationsWeight5.6 lbs / 2.5 kgHeight2.36 in / 6.0 cmWidthHooks expand from 10.7 in – 12.85 in / 27.2 cm – 32.6 cmDepth12.13 in / 30.8 cmFeaturesAccess to all device control buttons and ports while the computer is dockedAdjustable front hooks can be set to accommodate the Dell Latitude 12 and 14 Rugged Extreme and 14 Rugged laptop computersRear-facing I/O ports; integrated cable strain relief and cable management systemFront-facing docking/release latch Keyed lock for theft deterrenceOptional Tri RF (WWAN,WLAN, GPS) TNC Gamber-Johnson rugged construction and reliabilityComposite design for reduced weight and durabilityVESA 75mm mounting patternNote: Docking Drivers are required for this docking station. Please find the drivers here. Product DetailsModel: 12 Rugged Extreme Laptop (7204/7214), 13 Pro Rugged Laptop (RA13250), 14 Pro Rugged Laptop (RB14250), 14 Rugged Extreme Laptop (7404/7414/7424/7330), 14 Rugged Laptop (5404/5414/5420/5424/5430)Device OEM: DellWarranty: 3-year Limited Lifetime Warranty, Extended Warranty/Gamber Guard Options AvailablePower Supply: Not included, LIND 120W Auto Power Adapter – Barrel Input with Bare-Wire Leads (Item No. 7300-0714), LIND 12-32 VDC isolated power supply (Item No. 7300-0305), LIND 20-60 VDC isolated power supply (Item No. 7300-0306), LIND 72-110 VDC Isolated Power Adapter (Item No. 7300-0622)Testing Specifications: Cycle Tested: 30K Cycles, Docking Connector, Latching & Locking Mechanisms, MIL-STD 810G Environmental Testing: Humidity, High/Low Temperature, (Storage/Operational), MIL-STD 810G Shock/Vibration Tested, RoHS, FCC, CE, SAE J1455 Shock Crash Hazard TestPort Replicators: (1) Serial, D-sub 9-pin, (1) HDMI, (1) USB-A 2.0, (2) USB-A 3.0, (1) USB-C 3.0, (1) Ethernet, RJ45, Power input, 19VDC, Tri RF Pass-through (optional), TNCAntenna Pass-through: Tri RFDevice Type: LaptopIndustry: Fire/Rescue, Public Safety, UtilityPort Replication: FullSub Type 1: DockDownloadsProduct Sheet (PDF)Installation Guide (PDF)Testing Summary (PDF)
