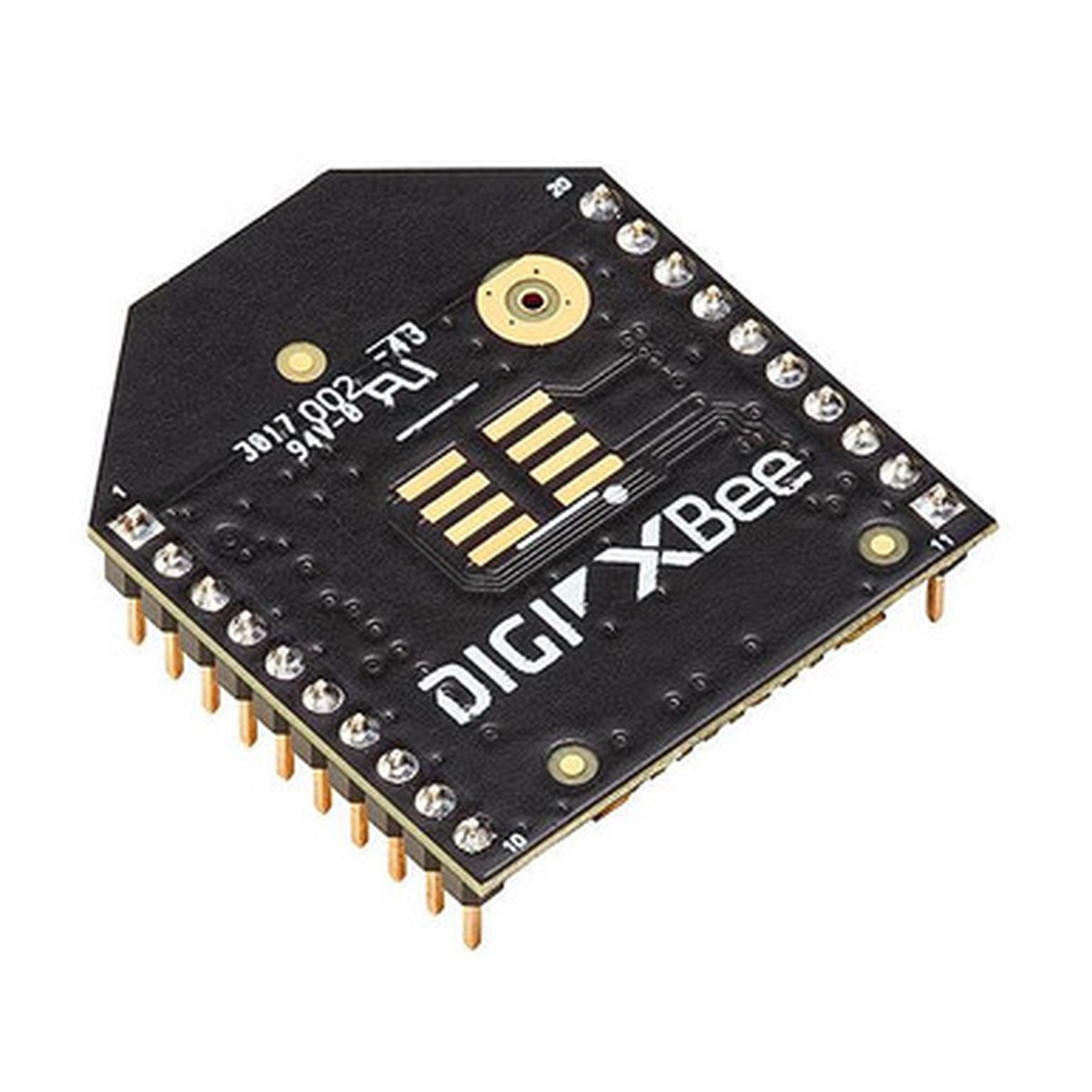

Digi XBee3 Module, 2.4 Ghz ZB 3.0, PCB Ant, TH MT – XB3-24Z8PT-J

Description

Description Show Reviews Digi XBee3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed. Digi XBee3 Zigbee 3.0 offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others. WithDigi Remote Manager,Digi XBee3 modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and XCTU software tools simplify adding functionality, configuration and testing. From edge computing to future migration, Digi XBee modules offer size, weight, power and performance advantages ideal for scalable device connectivity. A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software, the Digi XBee3 Series is engineered to accelerate development and deployment. Features At 13 mm x 19 mm, the new Digi XBee3 micro form factor allows for more compact and portable applications Digi XBee3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh and BLE, all configurable via Digi XCTU Eliminate the need for an external microcontroller and create smart end nodes using MicroPython Intrinsic IoT security with Digi TrustFence , a layered approach securing the edge device, through the gateway, into and out of the IoT Specifications Digi Xbee3 Zigbee 3.0 PERFORMANCE TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC DATA RATE RF 250 Kbps, Serial up to 1 Mbps INDOOR/URBAN RANGE* Up to 200 ft (60 m) OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 4000 ft (1200 m) TRANSMIT POWER +8 dBm RECEIVER SENSITIVITY (1% PER) -103 dBm Normal Mode FEATURES SERIAL DATA INTERFACE UART, SPI, I2C CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA) FREQUENCY BAND ISM 2.4 GHz FORM FACTOR Micro, Through-Hole, Surface Mount INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum) ADC INPUTS (4) 10-bit ADC inputs DIGITAL I/O 15 ANTENNA OPTIONS Through-Hole: PCB Antenna, U.FL Connector, RPSMA Connector SMT: RF Pad, PCB Antenna, or U.FL Connector Micro: U.FL Antenna, RF Pad, Chip Antenna OPERATING TEMPERATURE -40 C to +85 C DIMENSIONS (L X W X H) Through-Hole: 0.960 x 1.087 in (2.438 x 2.761 cm) SMT: 0.866 x 1.33 x 0.120 in (2.199 x 3.4 x 0.305 cm) Micro: 0.533 x 0.76 x 0.087 in (13 x 19 x 2 mm) PROGRAMMABILITY MEMORY 1 MB / 128 KB RAM (32KB are available for MicroPython) CPU/CLOCK SPEED HCS08 / up to 50.33 MHz NETWORKING AND SECURITY PROTOCOL Zigbee 3.0 ENCRYPTION 128/256 bit AES RELIABLE PACKET DELIVERY Retries/Acknowledgements IDS PAN ID and addresses, cluster IDs and endpoints (optional) CHANNELS 16 channels POWER REQUIREMENTS SUPPLY VOLTAGE 2.1 to 3.6V TRANSMIT CURRENT 40 mA @ 8 dBm RECEIVE CURRENT 17 mA POWER-DOWN CURRENT 2 micro Amp @ 25 degrees C Datasheet PDF User Guide 0 Reviews Hide Reviews Show Reviews
