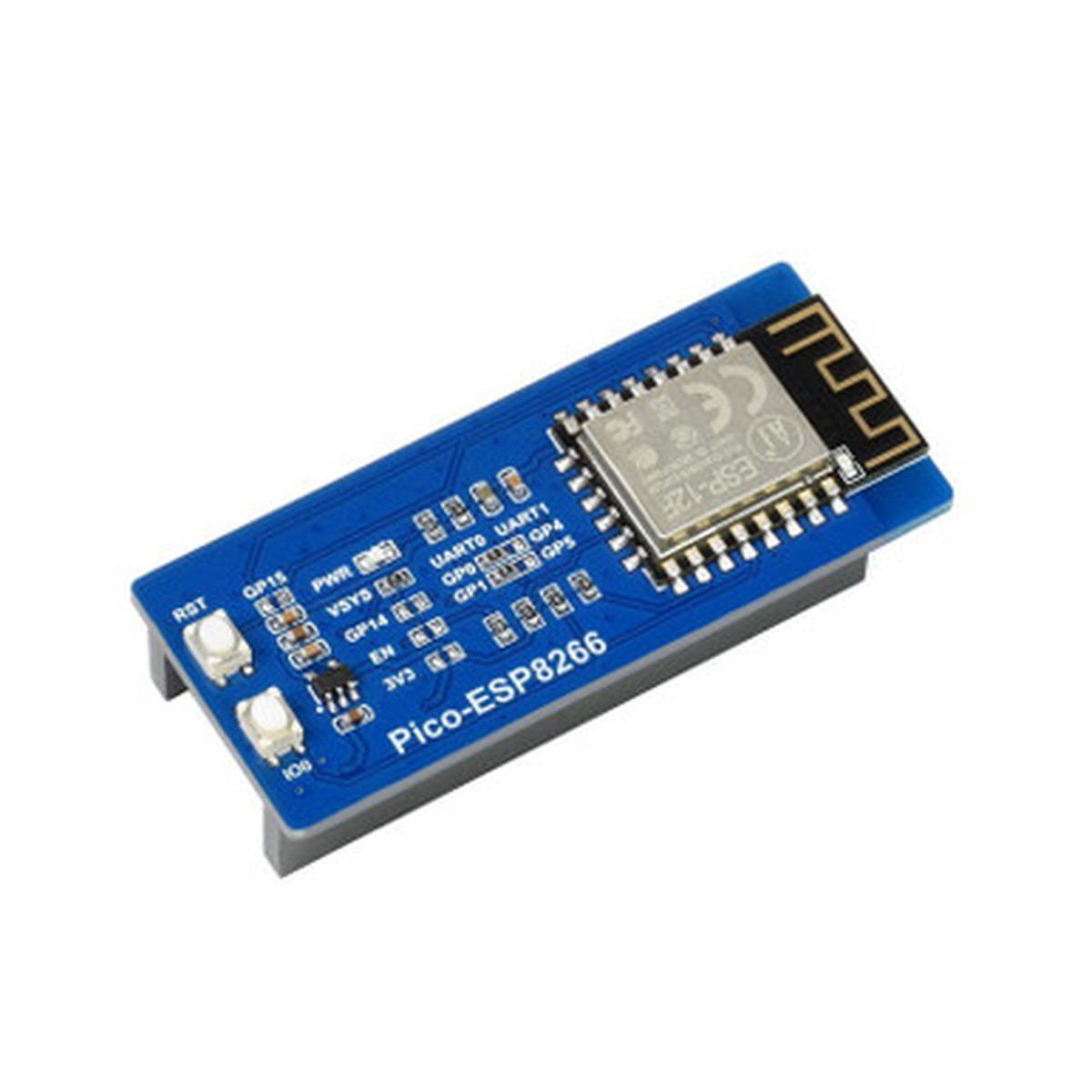

ESP8266 WiFi Module for Raspberry Pi Pico, Supports TCP/UDP Protocol

Description

Description Show Reviews Waveshare 20182 – ESP8266 WiFi Module For Raspberry Pi Pico, Supports TCP/UDP Protocol Features The Pico-ESP8266 is a WiFi expansion module designed for Raspberry Pi Pico, which can be controlled via UART AT command, and supports TCP/UDP communication protocol. It is an easy solution to enable WiFi feature for Raspberry Pi Pico, suitable for sorts of IoT communication projects. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series UART communication, controlled via AT command, helps you get started quickly Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal, more stable connection 2x functional buttons, convenient for user to update AT firmware through Raspberry Pi Pico Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Communication interface UART UART baudrate 115200 bps WiFi standard IEEE 802.11b/g/n Frequency range 2400 ~ 2483.5 MHz WiFi operating mode WiFi STA, WiFi AP, WiFi STA+AP Antenna PCB antenna Operating voltage 3.3 V Operating temperature -40 ~ 85 Dimensions 58 25 mm Includes Pico-ESP8266 x1 What’s On Board ESP8266 module ESP8266 reset button connects to ESP8266 reset pin ESP8266 BOOT button connects to ESP8266 GPIO 0, press to enter awaiting download mode while reseting SPX3819M5 3.3V linear regulator Pinout Definition Outline Dimensions Resources WIKI: Pico-ESP8266 * Resources for different product may vary, please check the wiki page to confirm the actually provided resources. 0 Reviews Hide Reviews Show Reviews
