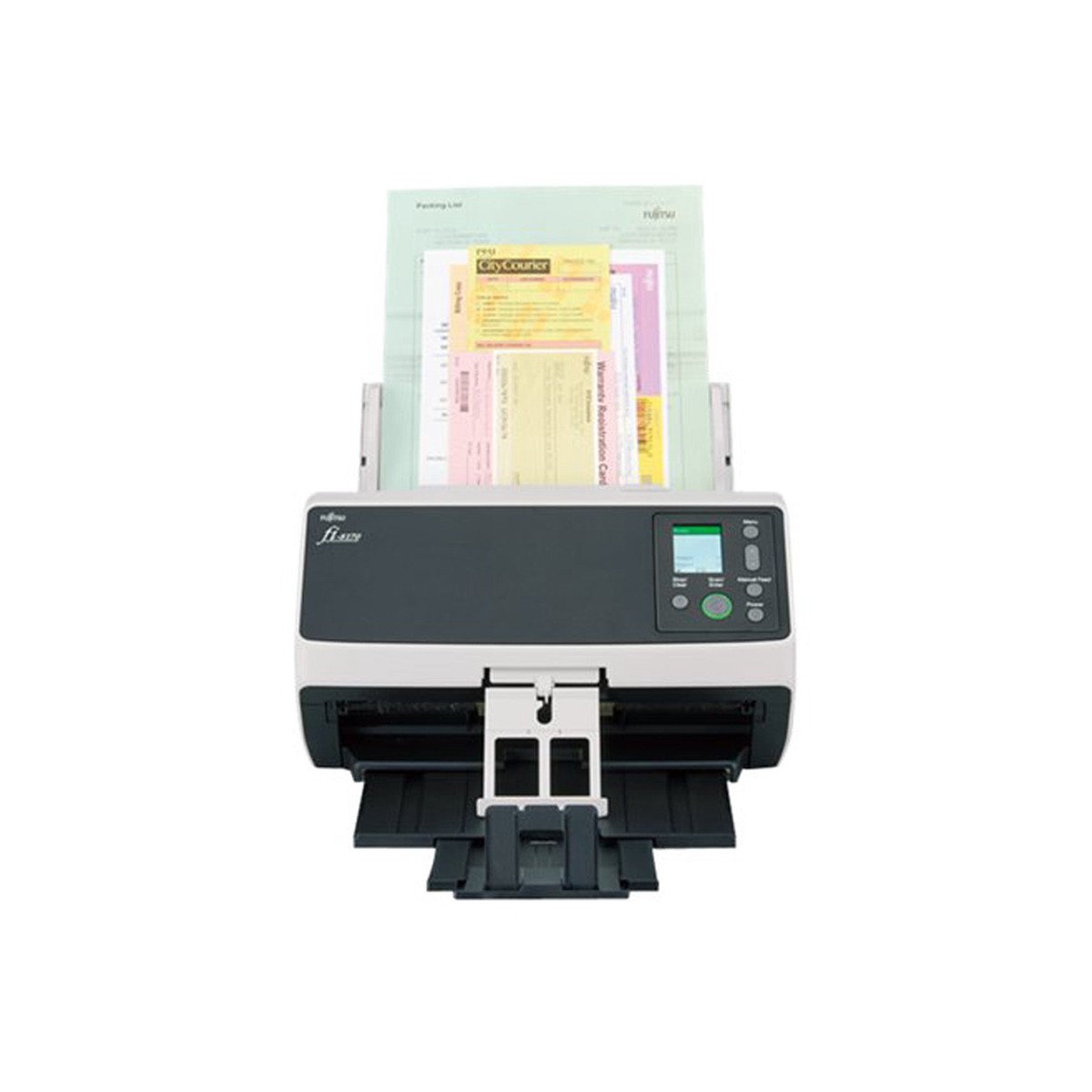

FUJITSU FI-8170 Document Scanner

Made for demanding workflows, the compact Fujitsu fi-8170 employs innovative feeding functionality and proprietary Clear Image Capture (CIC) technology to deliver industry-leading reliability. Built upon the platform of the best selling scanner, the fi-8170 gives both large and small organizations unparalleled, real-world productivity into critical workflows for customer onboarding, accounting, administration and much more.

Technical Specifications:

• Product Description:	Fujitsu fi-8170 – document scanner – desktop – Gigabit LAN, USB 3.2 Gen 1×1
  Device Type:	Document scanner – desktop
  Interface Type:	Gigabit LAN, USB 3.2 Gen 1×1
  Scanning Sensor Type:	Dual CIS
  Light Source:	3-color RGB LED
  Max Supported Document Size:	8.5 in x 14 in
  Input Type:	Color
  Grayscale / Color Depth (External):	8-bit (256 gray levels) / 24-bit (16.7 million colors)
  Optical Resolution:	600 dpi x 600 dpi
  Interpolated Resolution:	1200 dpi x 1200 dpi
  Max Document Scan Speed:	70 ppm (mono) / 70 ppm (color)
  Max Document Size:	8.5 in x 240 in
  Automatic Duplexing:	Yes
  Supported Document Type:	Plain paper, plastic card, passport
  Document Feeder Type:	Manual, automatic
  Feeder Capacity:	100 sheets
  Duty Cycle:	10000 scans per day
  Power:	AC 100-240 V (50/60 Hz)
  System Requirements:	Apple MacOS, Microsoft Windows Server 2008 R2, Ubuntu, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Windows 11
  Dimensions (WxDxH):	11.8 in x 6.7 in x 6.4 in
  Weight:	8.82 lbs
  Environmental Standards:	ENERGY STAR Qualified

• General


  Type:	Document scanner – desktop
  Interface Type:	Gigabit LAN, USB 3.2 Gen 1×1
  Max Supported Document Size:	8.5 in x 14 in

• Scanner


  Input Type:	Color
  Grayscale Depth (External):	8-bit (256 gray levels)
  Color Depth (External):	24-bit (16.7 million colors)
  Optical Resolution:	600 dpi x 600 dpi
  Interpolated Resolution:	1200 dpi x 1200 dpi
  Automatic Duplexing:	Yes
  Scanning Sensor Type:	Dual CIS
  Lamp / Light Source Type:	3-color RGB LED
  Max Document Scan Speed B/W:	70 ppm
  Max Document Scan Speed Color:	70 ppm
  Duty Cycle:	10000 scans per day
  Scanner Speed Details:	70 ppm – portrait – A4 – 200 dpi 70 ppm – portrait – A4 – 300 dpi 140 ipm – duplex – portrait – A4 – 200 dpi 140 ipm – duplex – portrait – A4 – 300 dpi
  Scanner Features:	Color Dropout, Image Emphasis, Dynamic Threshold, Error Diffusion, automatic color detection, Dither, Advanced DTC, Punch Hole Removal, Deskew, Blank Page Detection, descreening, Vertical Line Reduction, halftone removal
  Compliant Standards:	TWAIN, ISIS

• Media Handling


  Max Document Size:	8.5 in x 240 in
  Supported Document Type:	Plain paper, plastic card, passport
  Supported Document Size Details:	Long document – up to 8.5 in x 240 in ADF – up to 8.5 in x 14 in
  Document Feeder Type:	Manual, automatic
  Feeder Capacity:	100 sheets

• Expansion / Connectivity


  Interfaces:

  USB 3.2 Gen 1×1 – Type B Gigabit LAN

• Miscellaneous


  Included Accessories:	ADF paper chute
  Cables Included:	1 x USB cable
  Compliant Standards:	RoHS

• Environmental Standards


  EPEAT Compliant:	EPEAT Silver
  ENERGY STAR Certified:	Yes

• Power


  Power Device:	External power adapter
  Voltage Required:	AC 100-240 V (50/60 Hz)
  Power Consumption Operational (Standby):	28 Watt
  Power Consumption Stand by:	0.2 Watt
  Power Consumption Sleep:	2 Watt

• Software / System Requirements


  Software Included:	ABBYY FineReader for ScanSnap, Scanner Central Admin, Software Operation Panel, PaperStream Capture, Error Recovery Guide, PaperStream NX Manager, PaperStream ClickScan
  OS Required:	Apple MacOS, Microsoft Windows Server 2008 R2, Ubuntu, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8.1 / 10, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Windows 11

• Dimensions & Weight


  Width:	11.8 in
  Depth:	6.7 in
  Height:	6.4 in
  Weight:	8.82 lbs

• Environmental Parameters


  Min Operating Temperature:	41 F
  Max Operating Temperature:	95 F
  Humidity Range Operating:	15 – 80% (non-condensing)

• UNSPSC Code


  UNSPSC Code:

  43211711
