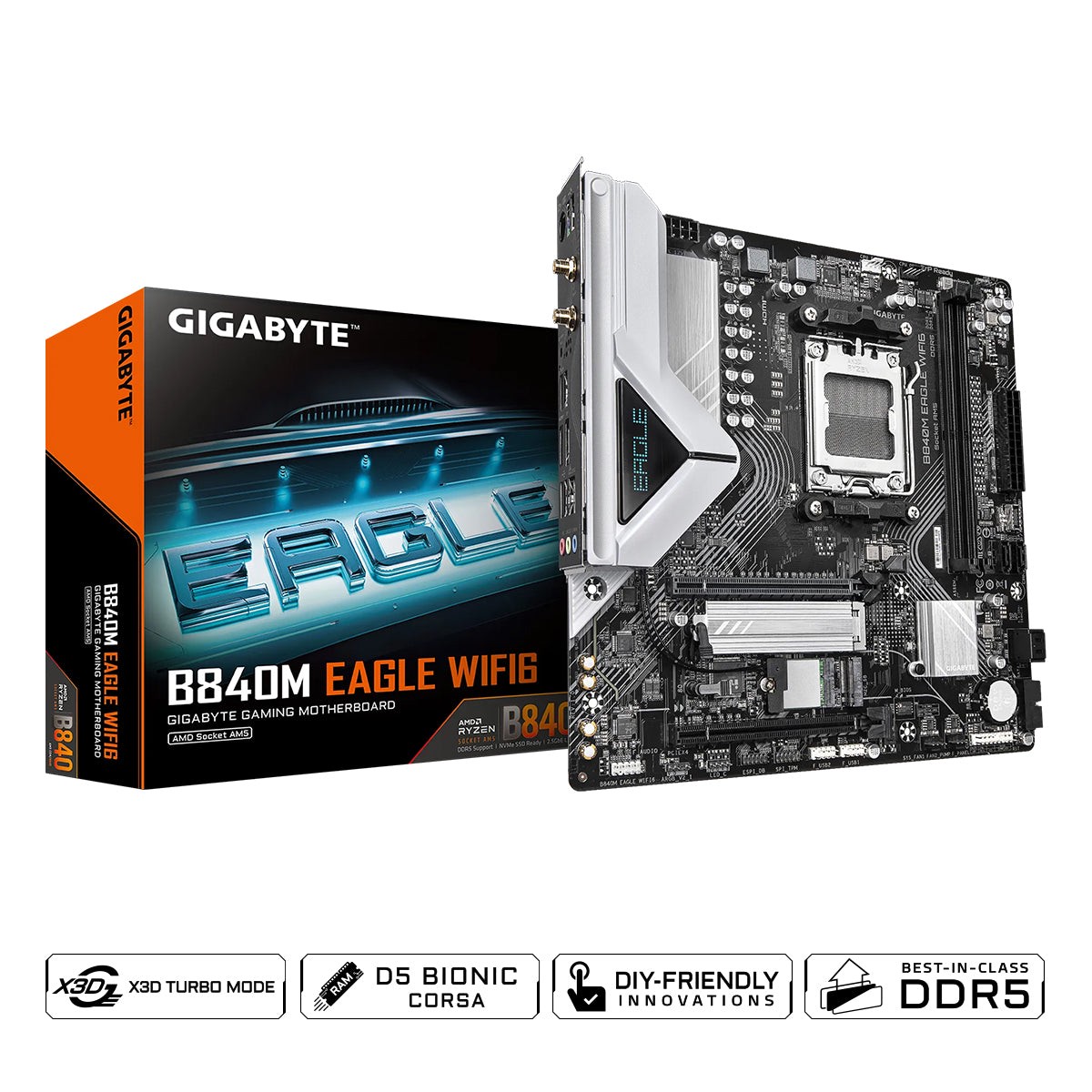

Gigabyte B840M Eagle WiFi6 DDR5 AMD Gaming Motherboard
Original price was: $386.64.$146.00Current price is: $146.00.
Description
Key Features
- X3D Turbo ModeUnleash new era gaming performance
- AMD Socket AM5Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR52*DIMMs with AMD EXPOMemory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-LatchPCIe and M.2slots with Quick Release & Screwless Design
- EZ-LatchM.2 heatsinks with screwless design
- Friendly UIMulti-Theme, AIO FanControl, and Q-Flash Auto ScaninBIOS and SW.
- Ultra-Fast Storage2*M.2 slots
- Efficient ThermalVRM Thermal Armor Advanced& M.2 Thermal Guard
- FastNetworking2.5GbE LAN& Wi-Fi 6
- Extended ConnectivityHDMI, Displayport
- PCIe UD SlotPCIe x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Specifications:
| CPU | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) |
|---|---|
| Chipset | AMD B840 |
| Memory | Support for DDR5 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version and HDR. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek Wi-Fi 6 RTL8851BE – WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 3.0 x2 SSDs RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: – 2 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset: – 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header – 2 x USB 3.2 Gen 1 ports available through the internal USB headers – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 1 x HDMI port (Note) 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks (Note) Actual support may vary by CPU. |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
