Description

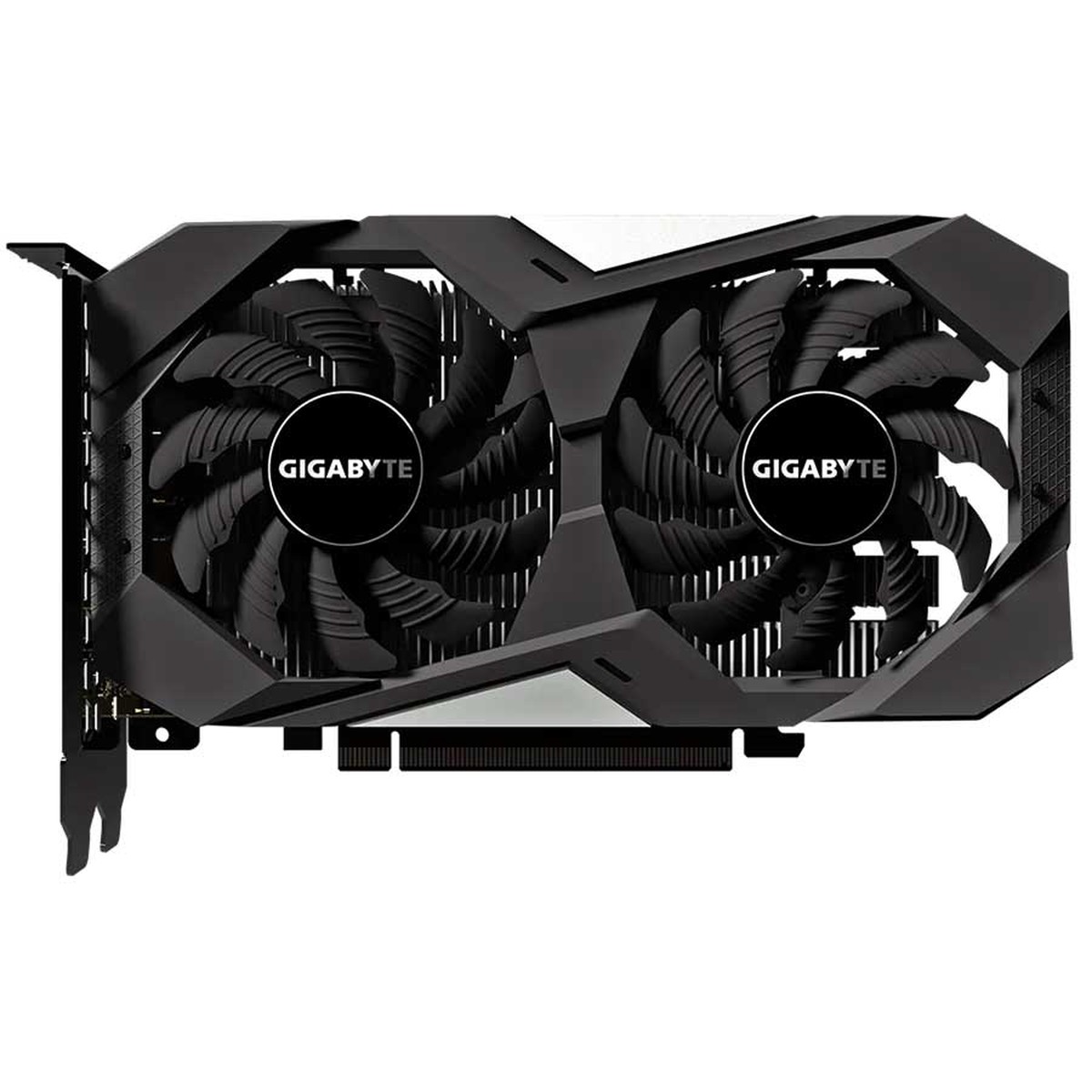

GeForce GTX 1650 OC 4G

Features
Powered by GeForce GTX 1650
NVIDIA Turing architecture and GeForce Experience
Integrated with 4GB GDDR5 128-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
80 mm unique blade fan

Core Clock
1710 MHz (Reference card is 1665 MHz)

WINDFORCE 2X COOLING SYSTEM

WINDFORCE 2X cooling system features 2x 80mm unique blade fans, alternate spinning fan, and 3D active fan, together delivering an effective heat dissipation.

ALTERNATE SPINNING

The GIGABYTE Alternate Spinning is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

BUILT STRONG

ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

Specifications:

• Graphics ProcessingGeForce GTX 1650
• Core Clock1710 MHz (Reference Card: 1665 MHz)
• CUDA Cores896
• Memory Clock8002 MHz
• Memory Size4 GB
• Memory TypeGDDR5
• Memory Bus128 bit
• Memory Bandwidth (GB/sec)128 GB/s
• Card BusPCI-E 3.0 x 16
• Digital max resolution7680x4320@60Hz
• Multi-view3
• Card sizeL=191 W=112 H=36 mm
• PCB FormATX
• DirectX12
• OpenGL4.6
• Recommended PSU300W
• Power ConnectorsN/A
• OutputDisplayPort 1.4 *1
  HDMI 2.0b *2
• SLI SupportNo
• Accessories1. Quick guide
  2. Driver CD
