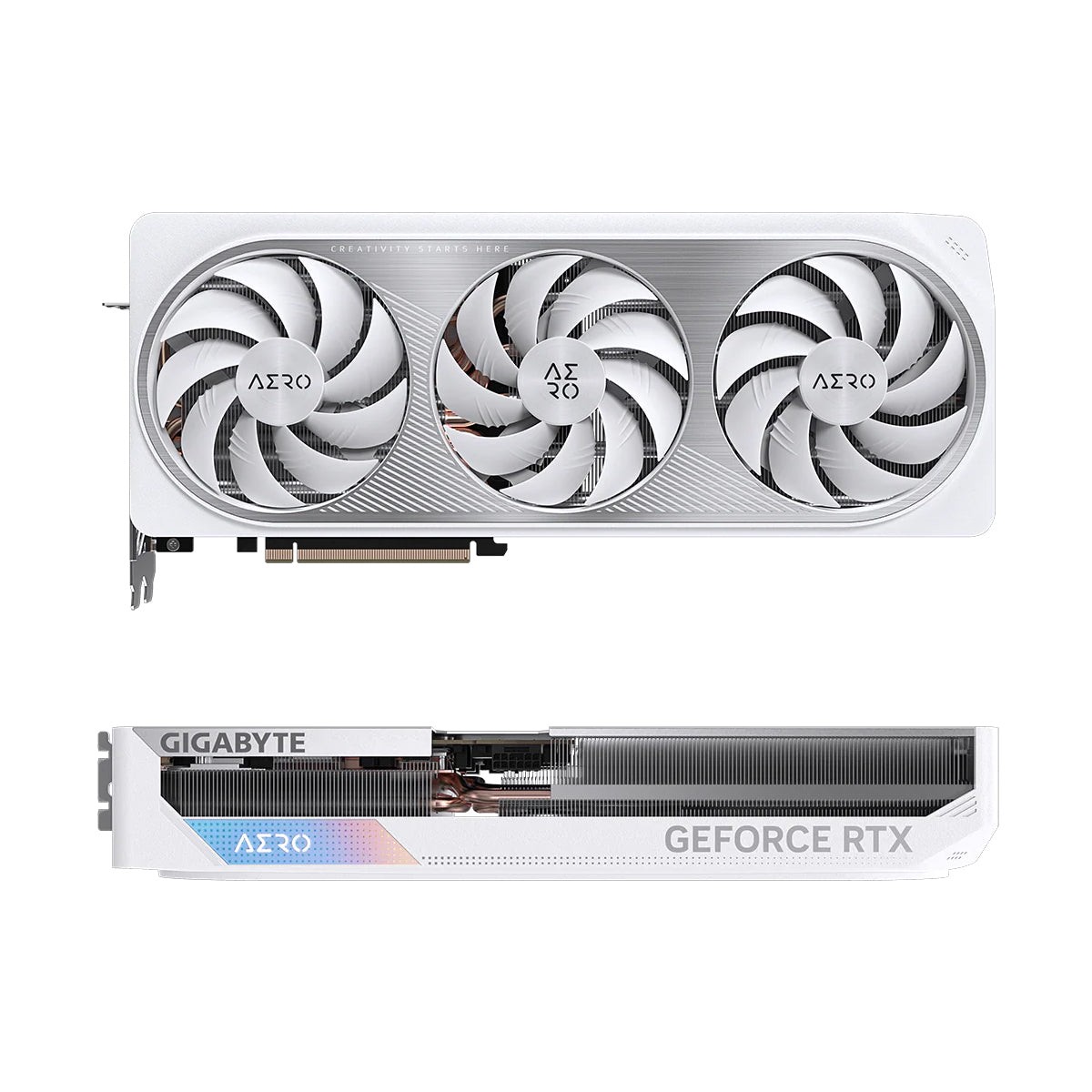

Gigabyte GeForce RTX 4070 Ti Aero OC V2 12GB GDDR6X Graphics Card

Description

KEY FEATURE

• Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Powered by GeForce RTX 4070 Ti
• Integrated with 12GB GDDR6X 192bit memory interface
• WINDFORCE Cooling System
• RGB Fusion
• Dual BIOS
• Protection metal back plate
• Anti-sag bracket
• 4 Years Warranty (Online registration required)

CORE CLOCK

2640 MHz (Reference Card: 2610 MHz)

The Ultimate Platform for Gamers and Creators

Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors

Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores

Up to 4x performance with DLSS 3
vs. brute-force rendering

Third-Gen RT Cores

Up to 2x ray tracing performance

Cutting-Edge GPUs

NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics

Dedicated Ray Tracing Cores

AI-Accelerated Performance

NVIDIA DLSS 3

Game-Winning Responsiveness

NVIDIA Reflex low-latency platform

Built for Live Streaming

NVIDIA Encoder

AI-Enhanced Voice and Video

NVIDIA Broadcast app

Fast-Track Your Creativity

NVIDIA Studio

Performance and Reliability

Game Ready and Studio Drivers

Ray Tracing

Hyperrealistic. Hyperfast.

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA DLSS 3

The performance multiplier, powered by AI.

DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

VAPOR CHAMBER & HEAT-PIPE

The vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

Specifications:

• Graphics ProcessingGeForce RTX 4070 Ti
• Core Clock2640 MHz (Reference Card: 2610 MHz)
• CUDA Cores7680
• Memory Clock21 Gbps
• Memory Size12 GB
• Memory TypeGDDR6X
• Memory Bus192 bit
• Card BusPCI-E 4.0
• Digital max resolution7680x4320
• Multi-view4
• Card sizeL=336 W=140 H=58 mm
• PCB FormATX
• DirectX12 Ultimate
• OpenGL4.6
• Recommended PSU750W
• Power Connectors16 pin *1
• OutputDisplayPort 1.4 *3
  HDMI 2.1 *1
• Accessories1. Quick guide
  2. Anti-sag bracket
  3. Anti-sag bracket installation guide
  4. One 16-pin to two 8-pin power adaptor
