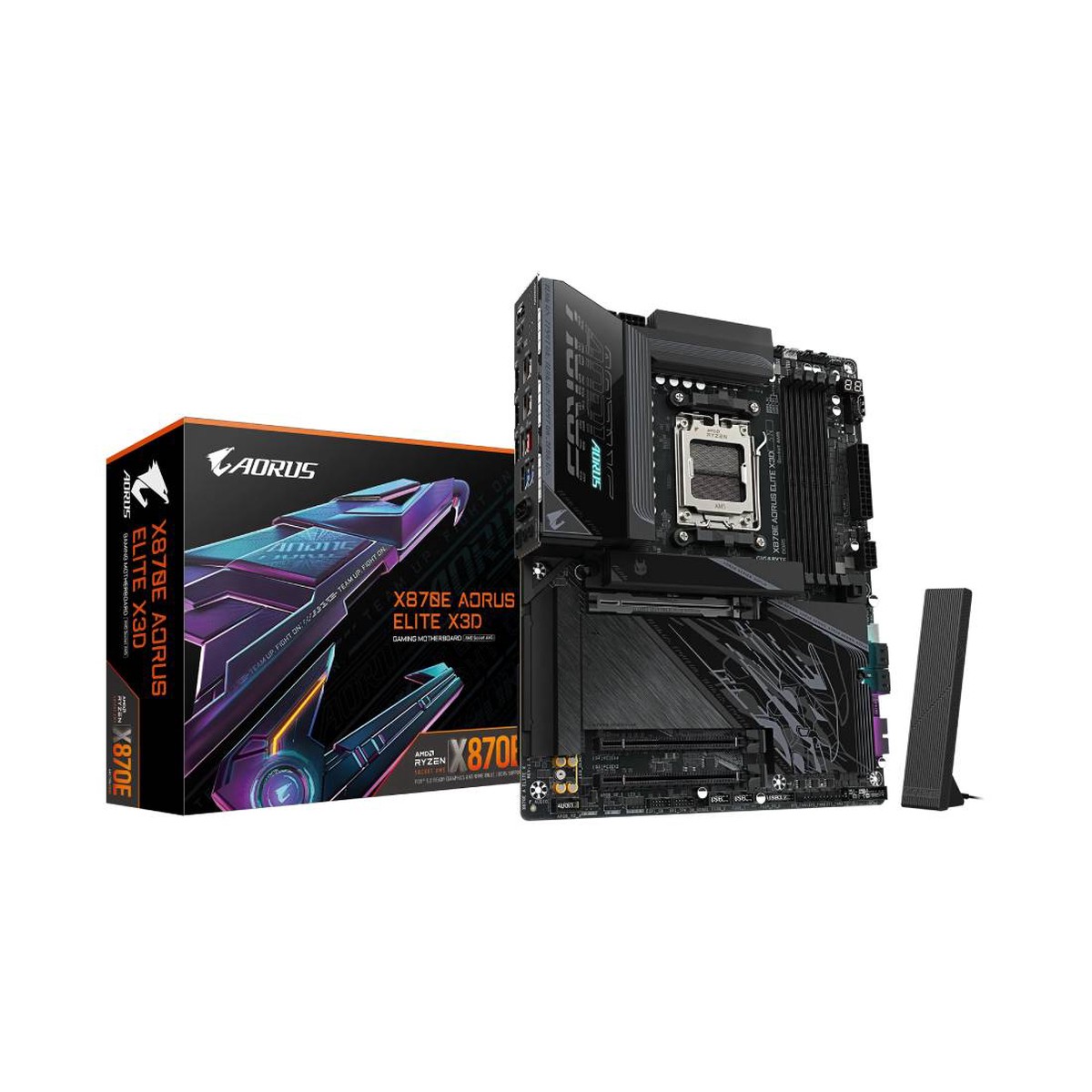

Name: Gigabyte X870E AORUS Elite X3D AMD AM5 LGA 1718 ATX Motherboard -
SKU: M471531867324
Availability: InStock

Description

Model	GIGABYTE X870E AORUS ELITE X3D
CPU Support	AMD Ryzen 9000 / 8000 / 7000 Series
CPU Socket	AMD AM5
Chipset	AMD X870E
Memory Type	DDR5
Memory Slots	4 DDR5 DIMM
Maximum Memory	Up to 256GB
Memory Speed	Up to DDR5-9000 (O.C.)
Memory Architecture	Dual Channel
Memory Support	AMD EXPO / Intel XMP
Graphics Output	2 USB4 Type-C, 1 HDMI 2.1, 1 Front HDMI
Audio	Realtek ALC1220, High Definition Audio, 7.1-Channel
S/PDIF	1 Optical S/PDIF Out
LAN	Realtek 5GbE LAN
Wi-Fi	Qualcomm Wi-Fi 7, 2.4GHz / 5GHz / 6GHz
Bluetooth	Bluetooth 5.4
Wireless Standard	802.11a/b/g/n/ac/ax/be, 320MHz
PCIe Slots	1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 3.0 x2
M.2 Slots	4 M.2
M.2 Support	Up to PCIe 5.0 x4/x2
SATA	4 SATA 6Gb/s
Storage RAID	NVMe: RAID 0 / 1 / 5 / 10; SATA: RAID 0 / 1 / 10
USB4	2 USB4 Type-C Rear
USB 3.2 Gen 2×2	1 Internal Type-C, up to 65W PD 3.0 / QC 4+
USB 3.2 Gen 2	5 Type-A Rear + 1 Type-C Rear
USB 3.2 Gen 1	3 Rear + 4 Internal
USB 2.0	4 Internal
RGB Support	3 Addressable RGB Gen2 + 1 RGB Header
Fan Headers	CPU / Water Pump / System Fan Headers
Temperature Monitoring	2 Temperature Sensor Headers
Noise Detection	Supported
BIOS	512 Mbit AMI UEFI BIOS
Special Features	Q-Flash Plus, Q-Flash, Smart Backup, GIGABYTE Control Center
Operating System	Windows 11 64-bit
Form Factor	ATX
Dimensions	30.5 24.4 cm
