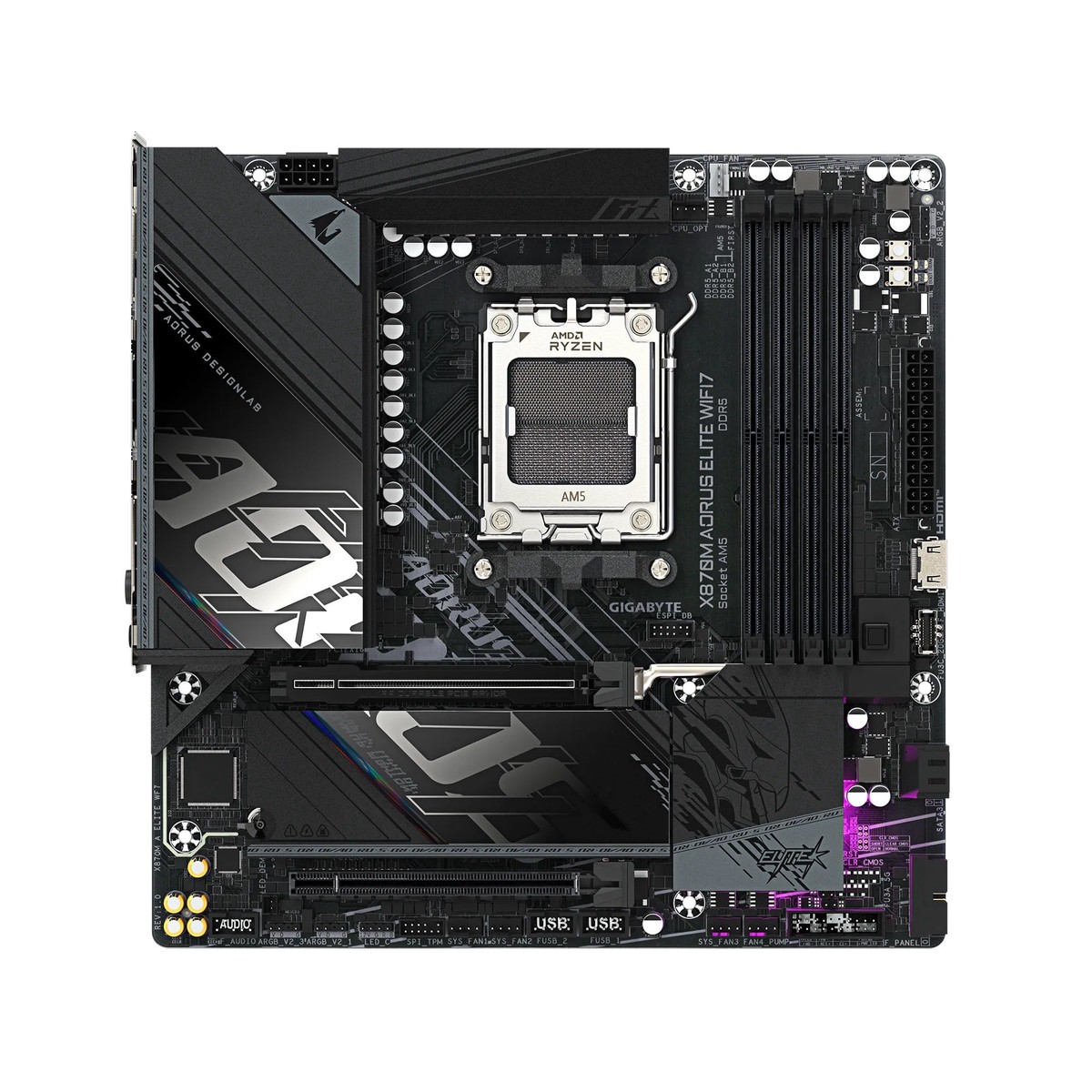

Gigabyte X870M Aorus Elite WiFi7 DDR5 AMD Gaming Motherboard
Original price was: $800.04.$146.00Current price is: $146.00.
Description
Gigabyte X870M Aorus Elite WiFi7 DDR5 AMD Gaming Motherboard
Key Features
- X3D Turbo ModeUnleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR54*DIMMs with AMD EXPOMemory Module Support
- WIFI EZ-PlugQuick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-LatchPCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch ClickM.2 heatsinks with screwless design
- Sensor Panel LinkOnboard video port for hassle-free in-chassis panel setup
- Friendly UIMulti-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage2*M.2 slots, including PCIe 5.0 x4
- Efficient ThermalVRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
- Fast Networking2.5GbE LAN & Wi-Fi 7
- Extended ConnectivityDual USB4 Type-C with DP-Alt, HDMI
- PCIe UD Slot XPCIe 5.0 x16 slot with 10X strength for graphics card
Specification:
| CPU | AMD Socket AM5, support for: Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | DDR5 8200(O.C) to 4400 MT/s supported 4 x DDR5 DIMM sockets, up to 256 GB Dual channel architecture Supports AMD EXPO and XMP profiles |
| Onboard Graphics | Integrated AMD Radeon Graphics 2 x USB4 Type-C (3840×2160@240Hz) 1 x HDMI (4096×2160@60Hz) 1 x front HDMI (1920×1080@30Hz) |
| Audio | Realtek ALC1220 CODEC, DSD Audio 7.1-channel HD Audio S/PDIF Out supported |
| LAN | Realtek 2.5GbE LAN |
| Wireless | Realtek Wi-Fi 7 RTL8922AE Bluetooth 5.4 Supports 2.4/5/6 GHz bands *Requires Windows 11 SV3 |
| Expansion Slots | 1 x PCIe x16 (CPU): – Ryzen 9000/7000: PCIe 5.0 x16 – Ryzen 8000 Phoenix 1: PCIe 4.0 x8 – Phoenix 2: PCIe 4.0 x4 1 x PCIe x4 (Chipset): PCIe 4.0 x4 |
| Storage Interface | 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x2 1 x M.2 (M2C_SB): PCIe 4.0 x2 2 x SATA 6Gb/s RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) *RAID 5 only on Ryzen 9000 |
| USB | Rear: – 2 x USB4 Type-C – 1 x USB 3.2 Gen 2 Type-A (red) – 4 x USB 2.0 – 4 x USB 3.2 Gen 1 Internal: – 1 x USB 3.2 Gen 2×2 Type-C – 1 x USB 3.2 Gen 2 Type-A – 2 x USB 3.2 Gen 1 – 4 x USB 2.0 |
| Internal I/O | 1 x 24-pin ATX 1 x 8-pin ATX 12V 1 x CPU fan / 1 x pump header 3 x system fan / 1 x pump header 3 x ARGB Gen2 / 1 x RGB header 2 x M.2 Socket 3 2 x SATA 6Gb/s Front panel, audio, TPM, HDMI headers USB 3.2 Gen 2×2, USB 3.2 Gen 1, USB 2.0 |
| Back Panel I/O | 1 x Clear CMOS / Q-Flash Plus button 1 x HDMI 4 x USB 2.0 / 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A (red) 2 x USB4 Type-C (DisplayPort capable) 1 x RJ-45 2 x antenna connectors 2 x audio jacks + Optical S/PDIF Out |
| Monitoring | Voltage / Temp / Fan / Water flow Fan fail warning / Fan control |
| BIOS | 256 Mbit AMI UEFI BIOS Supports PnP, DMI 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center Q-Flash / Q-Flash Plus Smart Backup |
| Software | Norton Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | Micro ATX (24.4 x 24.4 cm) |
