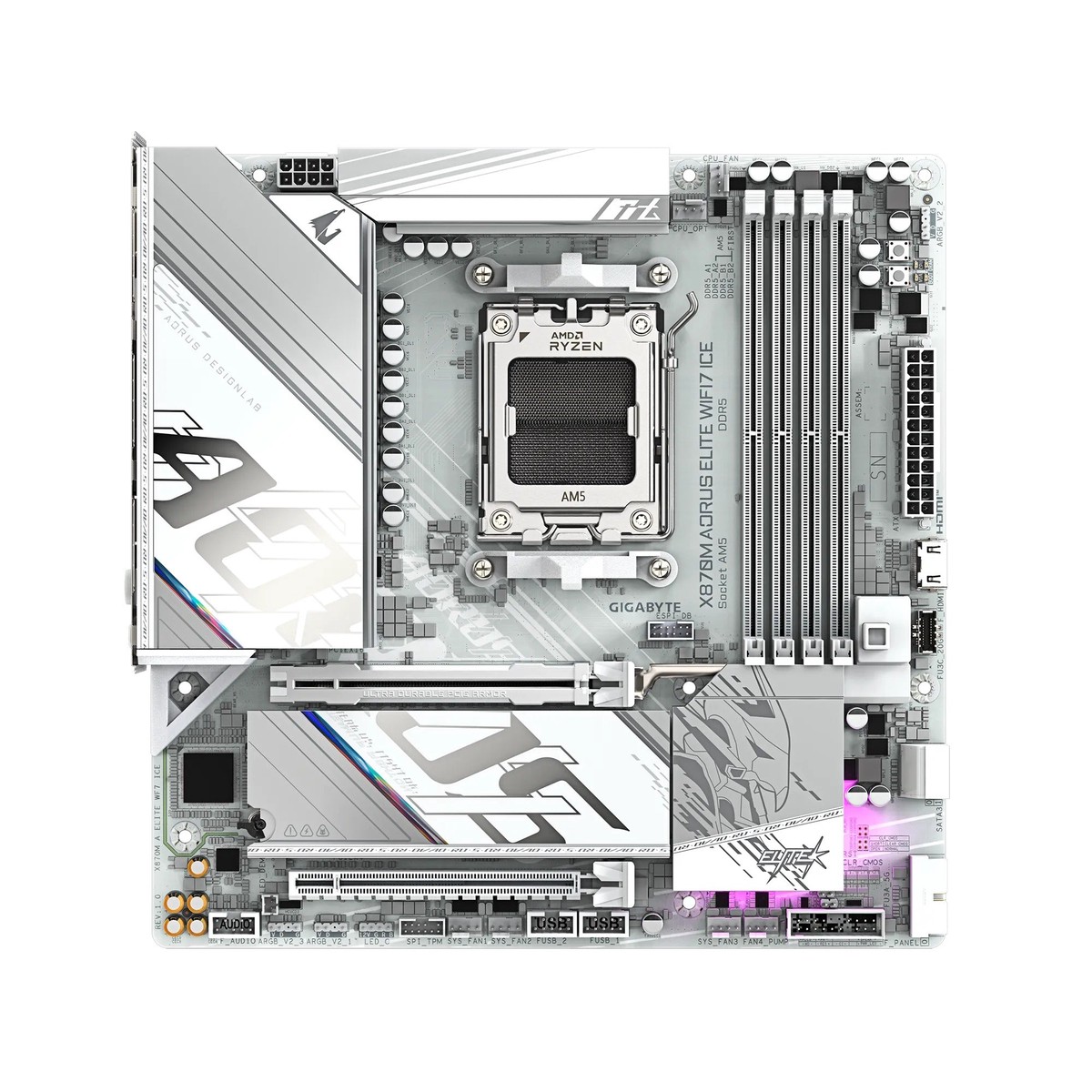

Gigabyte X870M Aorus Elite WiFi7 Ice DDR5 AMD Gaming Motherboard
Original price was: $802.95.$148.00Current price is: $148.00.
Description
Gigabyte X870M Aorus Elite WiFi7 Ice DDR5 AMD Gaming Motherboard
Key Features
- X3D Turbo ModeUnleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR54*DIMMs with AMD EXPOMemory Module Support
- WIFI EZ-PlugQuick and easy design for Wi-Fi antenna installation
- D5 Bionic Corsa for Infinite Memory Performance
- EZ-LatchPCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch ClickM.2 heatsinks with screwless design
- Sensor Panel LinkOnboard video port for hassle-free in-chassis panel setup
- Friendly UIMulti-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
- Ultra-Fast Storage2*M.2 slots, including PCIe 5.0 x4
- Efficient ThermalVRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
- Fast Networking2.5GbE LAN & Wi-Fi 7
- Extended ConnectivityDual USB4 Type-C with DP-Alt, HDMI
- PCIe UD Slot XPCIe 5.0 x16 slot with 10X strength for graphics card
Specification:
| CPU | AMD Socket AM5, support for: – AMD Ryzen 9000 Series Processors – AMD Ryzen 8000 Series Processors – AMD Ryzen 7000 Series Processors (Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset | AMD X870 |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXPO and XMP memory modules (See “Memory Support List” on GIGABYTEs website for compatibility.) |
| Onboard Graphics | Integrated AMD Radeon Graphics + ASMedia USB4 Controller: – 2 x USB4 Type-C ports, up to 3840×2160@240Hz * DisplayPort 1.4 and HDR supported Integrated AMD Radeon Graphics: |
| Audio | Realtek ALC1220 CODEC (line-out supports DSD audio) High Definition Audio, 2/4/5.1/7.1-channel * Jack functions configurable in software Support for S/PDIF Out |
| LAN | Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless Communication | Realtek Wi-Fi 7 RTL8922AE – 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz) – Bluetooth 5.4 – Supports 11be 160MHz * Requires Windows 11 SV3. No Windows 10 driver. ** 6GHz availability depends on country. |
| Expansion Slots | CPU: – 1 x PCIe x16 (PCIEX16) Ryzen 9000/7000: PCIe 5.0 x16 Ryzen 8000 Phoenix 1: PCIe 4.0 x8 Ryzen 8000 Phoenix 2: PCIe 4.0 x4 * Supports GPU or NVMe SSD only Chipset: |
| Storage Interface | CPU: – 1 x M.2 (M2A_CPU) (25110/22110/2580/2280) Ryzen 9000/7000: PCIe 5.0 x4/x2 Ryzen 8000 Phoenix 1/2: PCIe 4.0 x4/x2 Chipset: RAID Support: |
| USB | CPU + ASMedia: – 2 x USB4 Type-C (rear) CPU: CPU + USB 2.0 Hub: Chipset + USB 3.2 Gen 1 Hub: Chipset: |
| Internal I/O Connectors | 1 x 24-pin ATX main power 1 x 8-pin ATX 12V 1 x CPU fan 1 x CPU fan/water pump 3 x system fan 1 x system fan/water pump 3 x addressable RGB Gen2 headers 1 x RGB LED header 2 x M.2 Socket 3 2 x SATA 6Gb/s 1 x front panel 1 x front panel audio 1 x USB Type-C (USB 3.2 Gen 2×2) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x TPM header 1 x HDMI port 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x Clear CMOS button 1 x Q-Flash Plus button 1 x HDMI port 4 x USB 2.0/1.1 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 Type-A (red) 2 x USB4 Type-C (DisplayPort) 1 x RJ-45 2 x antenna connectors 2 x audio jacks 1 x optical S/PDIF Out |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage/Temperature/Fan speed detection Water cooling flow detection Fan fail warning Fan speed control* * Fan support may vary by model |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * App availability varies per model Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | Micro ATX; 24.4 cm x 24.4 cm |
