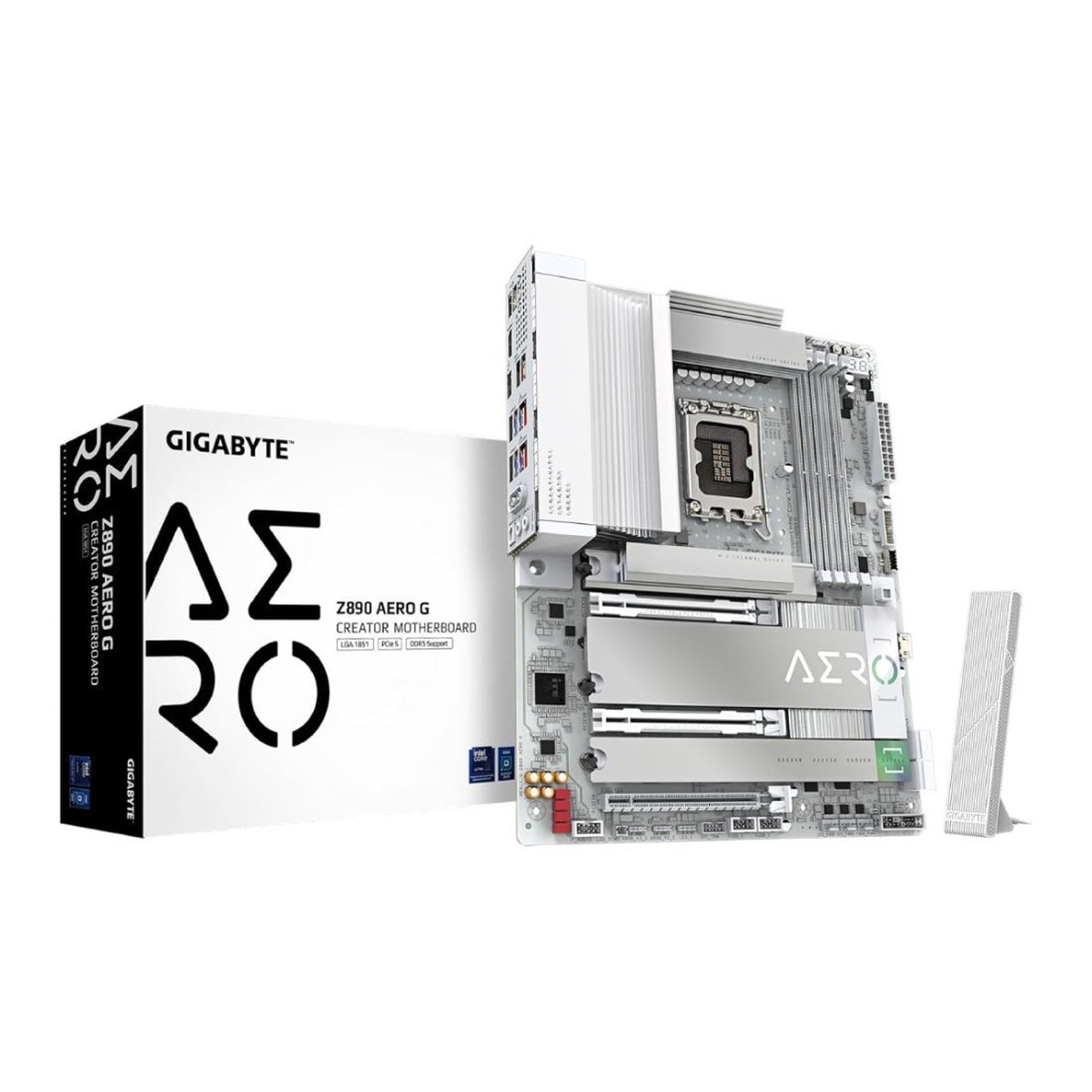

Name: Gigabyte Z890 AERO G Wifi DDR5 LGA1851 ATX Gaming Motherboard -
SKU: M471531872443
Availability: InStock

Description

CPU	Intel
Socket	LGA1851 socket: Support for Intel Core Ultra Processors
Back Panel I/O	2 x USB 2.0/1.1 ports 1 x HDMI port (Note) 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x Intel Thunderbolt 4 connectors (USB Type-C ports) 2 x RJ-45 ports 4 x USB 3.2 Gen 1 ports 2 x SMA antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Memory Slots	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity of system memory
Storage Expansion	-1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Internal I/O	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Audio	Realtek ALC1220 CODEC
Wireless	Bluetooth / Wi-Fi
Software	Windows 11
Dimensions	ATX
