Industrial USB TO TTL Converter, Original FT232RL, Multi Protection & Systems Support

Description

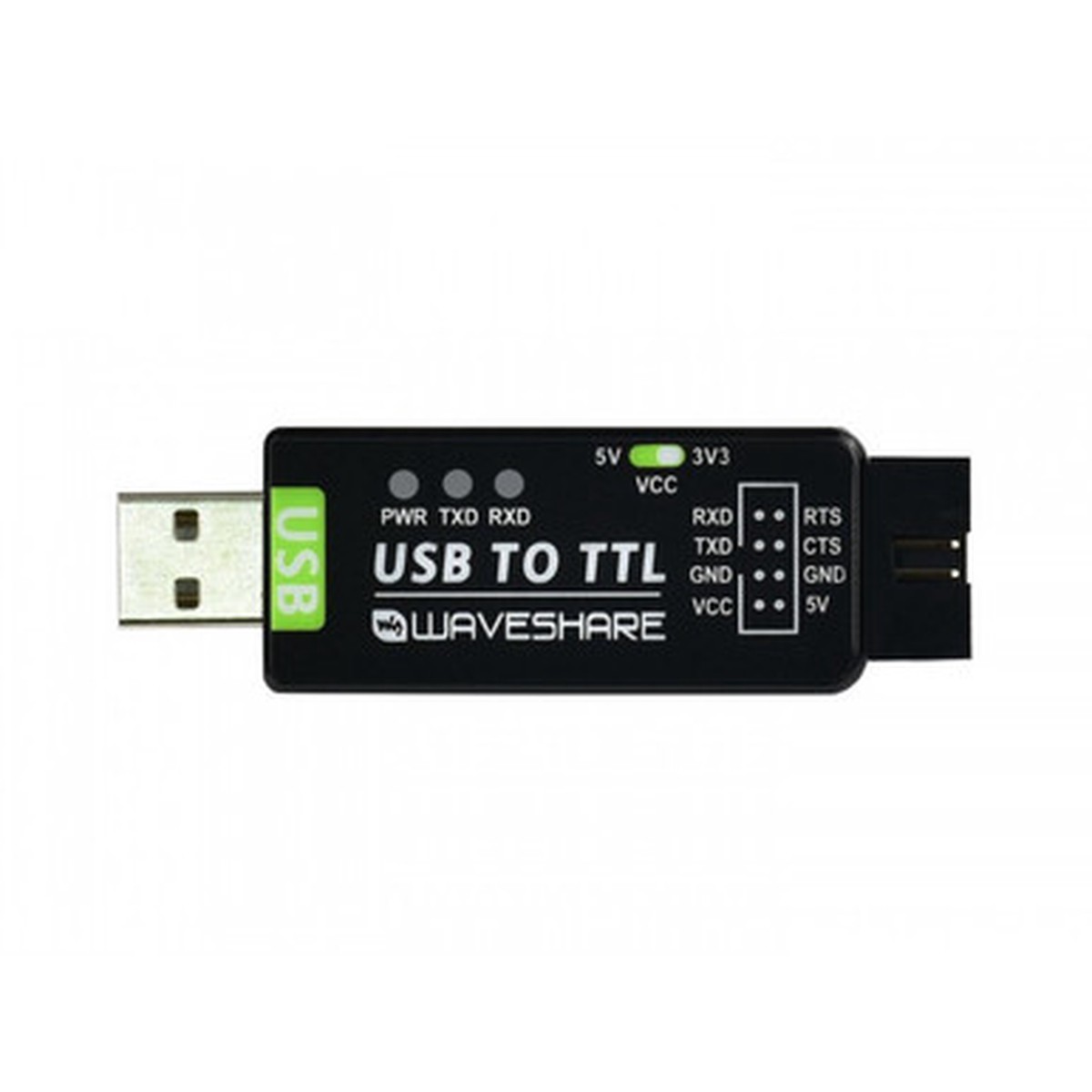

Description Show Reviews Waveshare17939 -Industrial USB TO TTL Converter, Original FT232RL Onboard, Multi Protection Circuits, Multi Systems Support USB signal & Pinouts Definition 5V 5V output VCC 3.3V or 5V output, configured by switch GND Ground TXD Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) RXD Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX) RTS Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) CTS Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS) USB cable is not included This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage Specifications Product category Industrial USB TO TTL converter Host port USB Data rate 300bps ~ 3Mbps Device Port UART USB port Connector: USB-A Protection: resettable fuse, ESD protection UART port Connector: 8PIN fool-proof header Protection: IO protection diode Indicator PWR: power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data Package content USB TO TTL x1 8PIN fool-proof wire x1 0 Reviews Hide Reviews Show Reviews
