Description

Specifications:

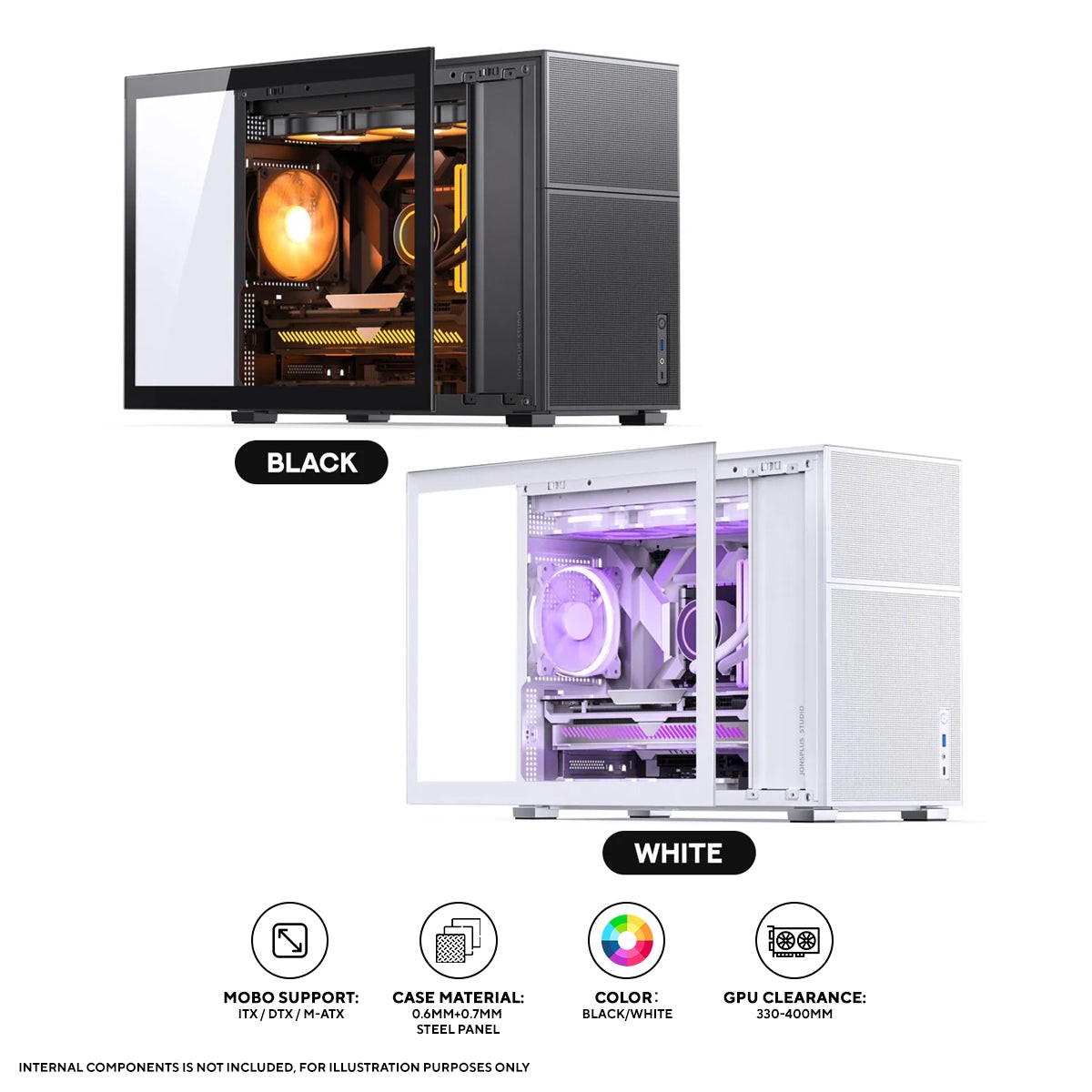

Model D31 MESH
Dimension:

205mm (W) * 347.5mm(H) *440mm(D) (Vol: 31.3L)

*Depth does not include the PCI brackets outside the chassis, height does not include case stand
05mm (W) * 363mm(H) * 452mm(D) (overall size)

Material 0.6mm+0.7mm steel panel
Drive Bay 2.5SSD*2+3.5HDD*1
Motherboard ITX / DTX / M-ATX
PCI expansion slots 4
Front I/O USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
Power supply support ATX
CPU cooler support 168mm
Graphics card support 330-400mm
Fan mounting position Top 120mm*3 or 140mm*2
Rear 120*1mm
Bottom 120mm*3 or 140mm*2
Front 120mm*1
Radiator support Top 240/280/360*1
Rear 120*1
Bottom 240/360*1
Weight Net 5.8KG
