Description

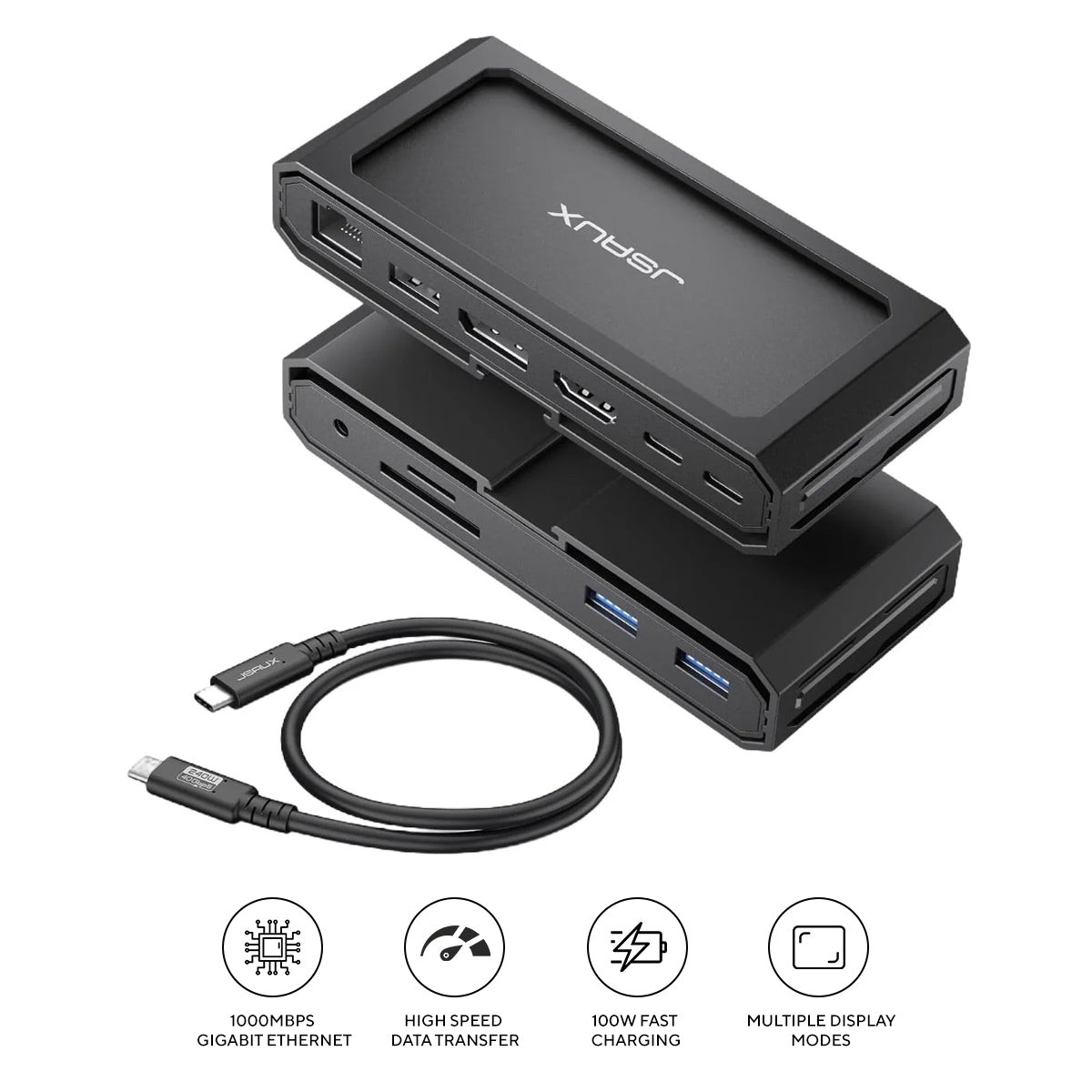

  • 11-in-1 USB-C Docking Station:This USB-C Docking Station includes a Gigabit Ethernet network, fast 100W USB-C PD charging, 8K HDMI, 8K DisplayPort, 2 USB 3.0 ports, 1 USB 2.0 port, SD and TF card readers, and 3.5mm Mic/Audio ports.
  • Single 8K or Dual 4K Display Docking Station:Connect a single 8K or dual 4K display using DP and HDMI outputs.
  • Stability and Efficient Transfer:Enjoy fast data transfer with 2 USB 3.0 ports (5Gbps) and 1 USB 2.0 port (480Mbps). The built-in SD and TF card slots support simultaneous card reading at up to 5Gbps.
  • Gigabit Ethernet and 3.5mm Mic/Audio:Support Ethernet 1000Mbps connection, making downloading and running games faster and more stable. Plug and Play, No more additional drivers are required.
  • 100W Max Power Delivery:Charge your tablets, notebooks, Steam Deck, and ROG Ally at full speed.
  • Wide Compatibility:This docking station works with most systems and supports Windows/Android/macOS/Linux systems, ensuring compatibility with a wide range of devices.

Note:

  • If you face operational issues, ensure your USB-C cable is correctly connected to the ‘IN-USB-C’ port. We recommend using the provided USB-C cable for best results. If you choose to use an alternative USB-C cable, please ensure that it adheres to the USB-C 3.2 standard.
  • The included USB-C cable may vary from the one shown in the picture, but it won’t affect its normal functionality.
  • It is recommended to use a100W chargerto better experience ROG Allys high-performance 30W mode.
  • NOT compatible with AYA NEO console. Cannot guarantee 30W Turbo Mode for Rog Ally. It may require a charger over 65W, based on current information. Ultimately, enabling 30W Turbo Mode depends on the specific charger used.

Specifications:

Size 120*61.8*23.5mm
Weight about 130g
Material Aluminum alloy+ABS&PC
ARC Compatible with ARC, CEC audio back transmission function
Input USB-C Female 1USB-C PD 1
Output USB-A3.0 2USB-A2.0 1HDMI 1DP 1RJ451SD1TF13.5mm Female Audio1
Ports USB-C Female compatible with 3.2 standard and thunderbolt 3 interfaces
PD Supports PD 100W charge
HDMI: Supports up to 8K@30Hzbackward compatible with 4K@120Hz, 4K@60Hz, 2K@144Hz2K@120Hz
DP: Supports up to 8K@30Hz, backward compatible with 4K@120Hz,
4K@60Hz, 2K@165Hz, 2K@144Hz, 2K@120Hz
USB-A: USB3.0 standard, Supports 5Gbps, 5V/1A power supply
USB-A: USB2.0 standard, Supports 480Mbps, 5V/1A power supply
RJ45: Adaptive 10/100/1000M Ethernet
SD/TF Maximum read and write speed 5Gbps, support simultaneous read and write
3.5mm Female Audio3.5mm Mic/Audio(2 in 1) port
USB-C to USB-C cable USB 3.2 Standard, Supports 10Gbps Max transmission speed, supports 100W charge,5A electricity
Notes: HDMI+DP simultaneous output supports 4K@60Hz output
Package List Includes HB1101*1, a USB-C to USB-C 3.2 cable.
