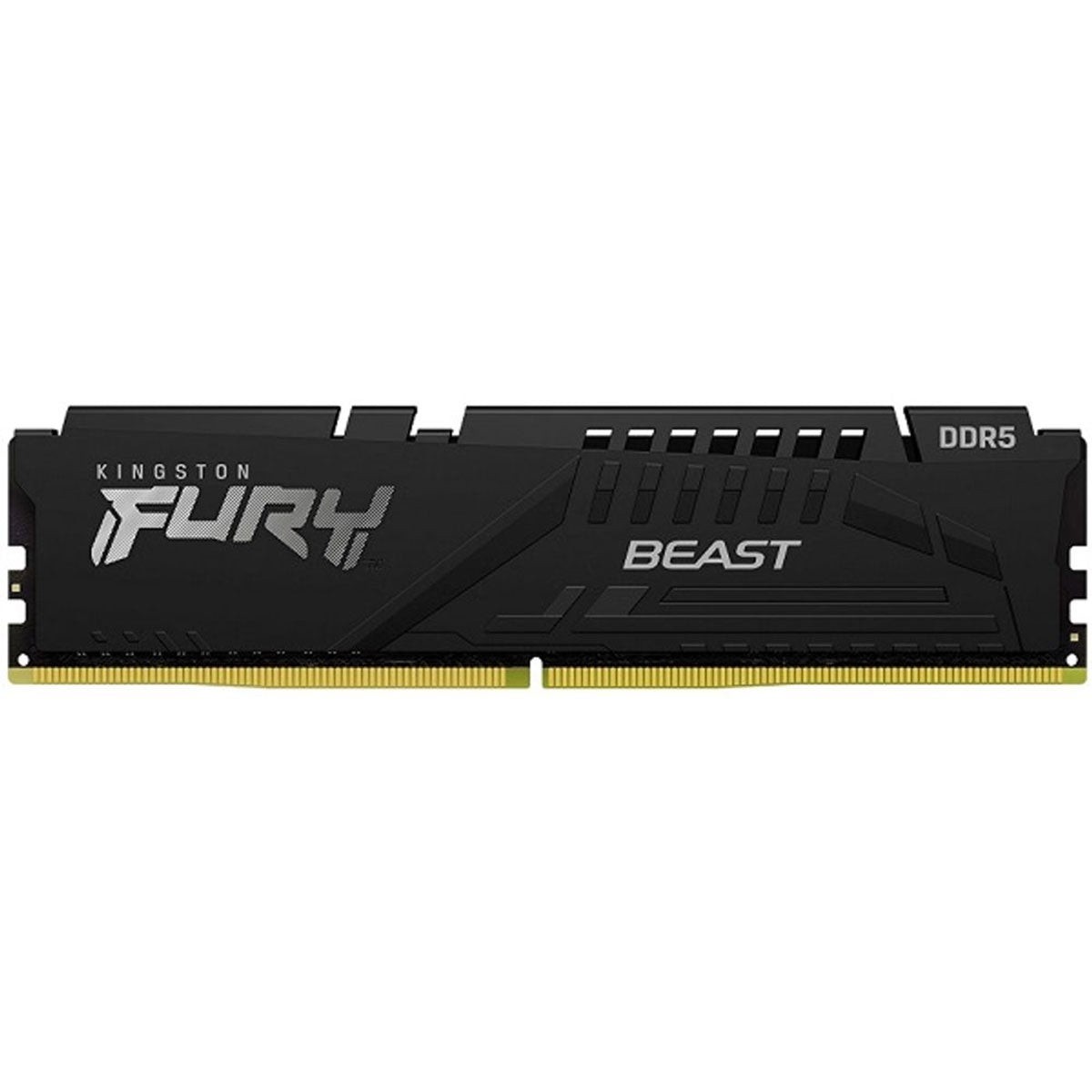

Kingston Fury Beast 16GB DDR5 6000MT/s CL36-44-44 1.35V EXPO/XMP Desktop Memory (KF560C36BBE2-16)

Description

Kingston FURY KF560C36BBE2-16 is a 2G x 64-bit (16GB)DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memorymodule, based on eight 2G x 8-bit FBGA components per module.The module supports AMD EXPO v1.1 and Intel Extreme
Memory Profiles (Intel XMP) 3.0. Each module has beentested to run at DDR5-6000 at a low latency timing of 36-44-44 at1.35V. The SPDs are programmed to JEDEC standard latencyDDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMMuses gold contact fingers. The JEDEC standard electricaland mechanical specifications are as follows:

DEFAULT FEATURES

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37 (34.9mm), w/heatsink
