Sale!

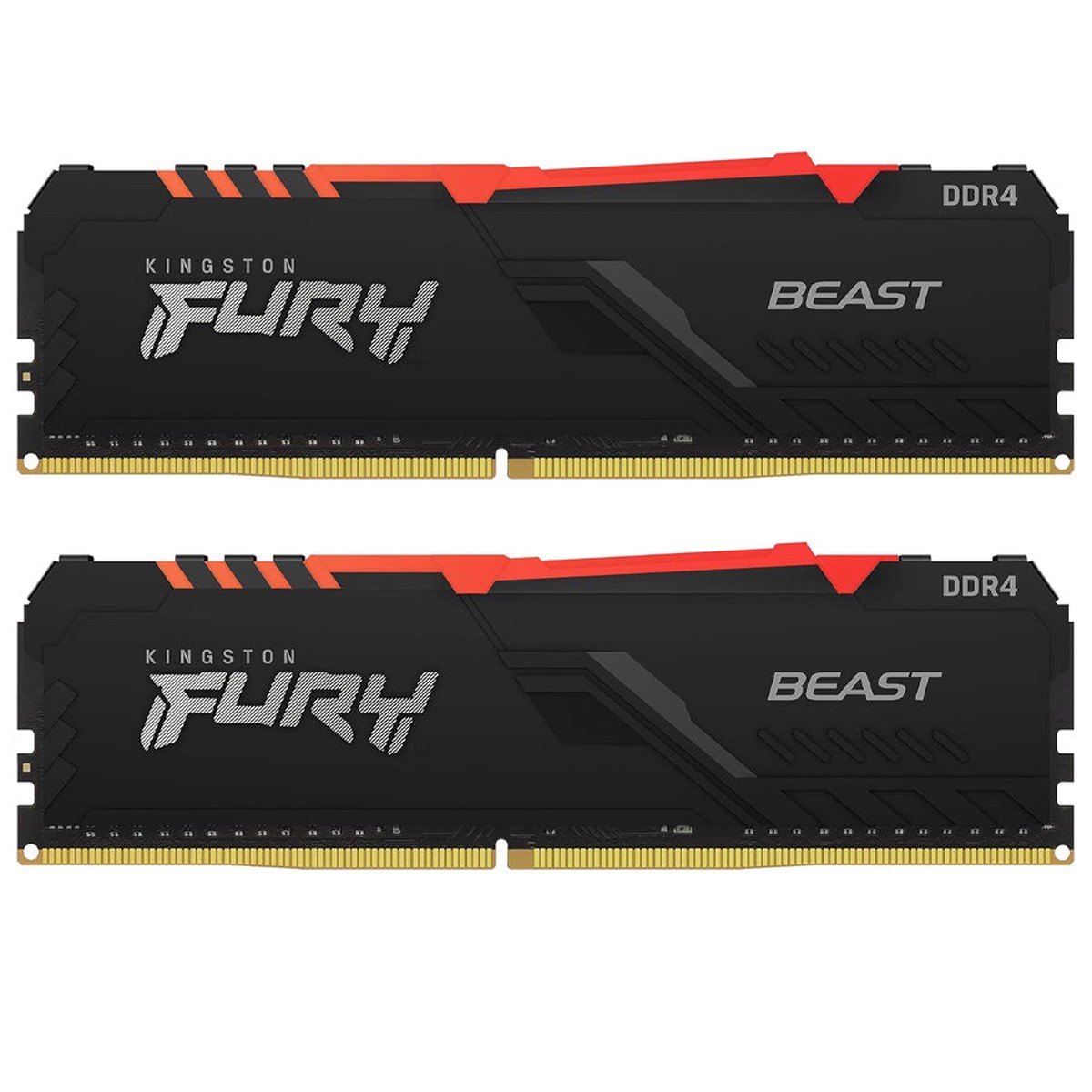

Kingston Fury Beast 32GB (16GBX2) RGB DDR4 3600MHZ (KF436C18BBAK2/32)
Original price was: $381.34.$147.00Current price is: $147.00.
Description
Kingston FURY KF436C18BBAK2/32 is a kit of two 2G x 64-bit (16 GB) DDR4-3600 CL18 SDRAM (Synchronous DRAM) 1Rx8 memory modules, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. The total kit capacity is 32 GB.
Each module has been tested to run at DDR4-3600 with low-latency timings of 18-22-22 at 1.35 V. The SPDs are programmed to JEDEC-standard DDR4-2400 timings of 17-17-17 at 1.2 V. Each 288-pin DIMM uses gold contact fingers.
Specifications:
| CL (IDD) | 17 cycles |
| Row Cycle Time (tRCmin) | 45.75 ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 350 ns (min.) |
| Row Active Time (tRASmin) | 32 ns (min.) |
| UL Rating | 94 V – 0 |
| Operating Temperature | 0C to +70C |
| Storage Temperature | -40C to +85C |
| Factory Timing – Default (JEDEC) | DDR4-2400 CL17-17-17 @ 1.2V |
| Factory Timing – XMP Profile #1 | DDR4-3600 CL18-22-22 @ 1.35V |
| Factory Timing – XMP Profile #2 | DDR4-3000 CL16-18-18 @ 1.35V |
| Power Supply (VDD) | 1.2V Typical |
| VDDQ | 1.2V Typical |
| VPP | 2.5V Typical |
| VDDSPD | 2.2V to 3.6V |
| On-Die Termination (ODT) | Supported |
| Internal Banks | 16 banks; 4 groups of 4 banks each |
| Data Strobe | Bi-Directional Differential |
| Pre-Fetch | 8-bit |
| Burst Length | Switch on-the-fly BL8 or BC4 (Burst Chop) |
| Module Height | 1.62 (41.2 mm) with heatsink |
