Kit, Ford Super Duty F250-F750 2011-2015, MCS | 7170-0132 | 7170-0132

Description

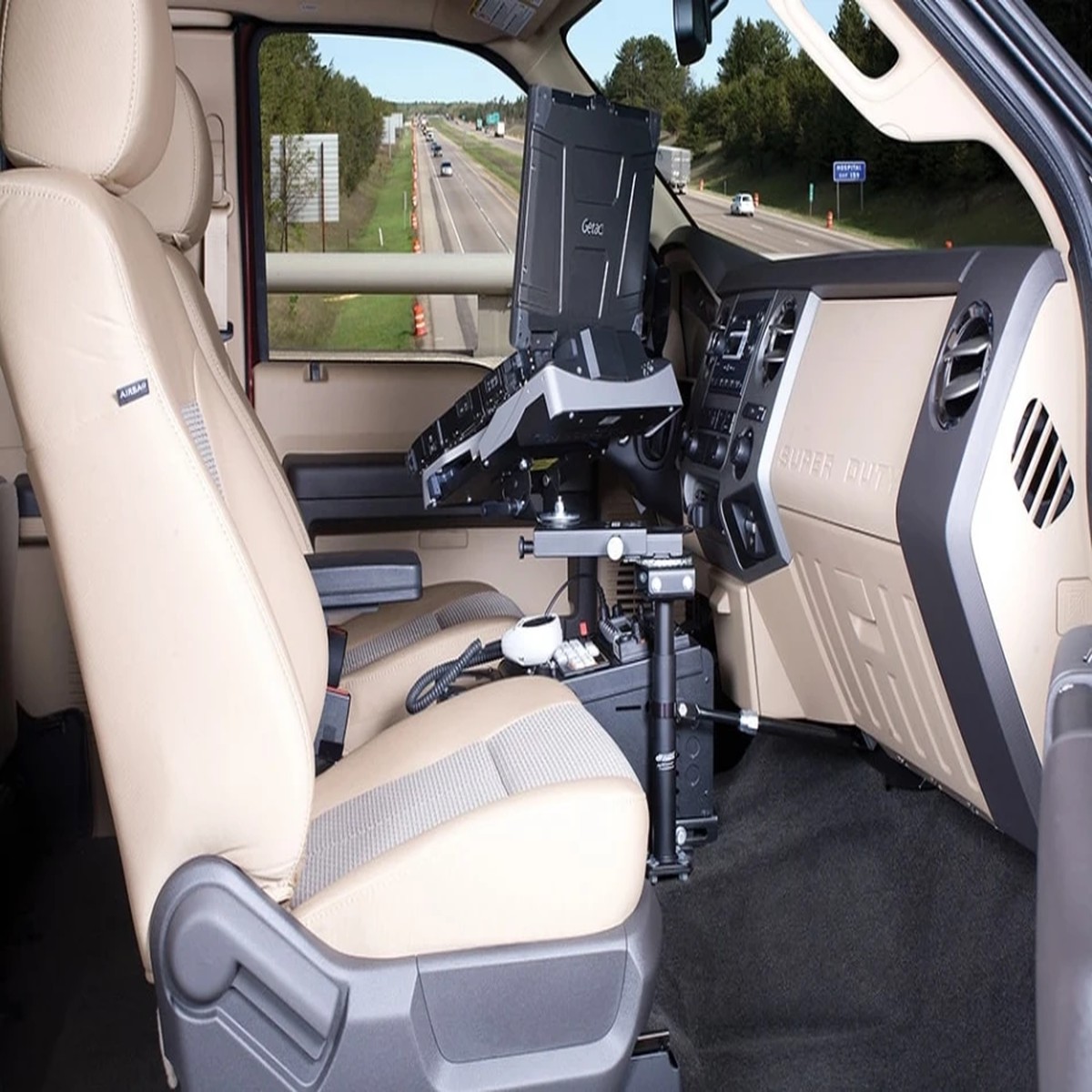

Kit, Ford Super Duty F250-F750 2011-2015, MCS | 7170-0132 Items such as control heads, radios, docking stations, cup holder and computers shown in photos are not included. KIT COMPONENTS Leg Kit (7160-0301)Leg Kit is a no-drill solution and attaches to the seat studs. 29 Top Plate (7160-0085)Top plate allows console box to be off set towards the passenger for added space. 13 Console Box (MCS-EPIC13)The two-piece flexible design allows for multiple height/angle combinations based on radio requirements. Console box comes withblank filler panelsand faceplates. Side Extension Mounting Plate(7160-0106)Provides off-set mounting surface Pole System(DS-LOWER-9&7160-0178)Pole system includes the lower tube and the center upper pole. Combined they allow the user to ergonomically position the computer to fit them best. 9″ Locking Swing Arm – Mongoose (7160-0220)Locking Slide Arm can rotate around 360 with locking points every 15. Slide Arm can extend out from 9″ to 13″ from center pole and locks automatically in the retracted 9 position. Motion Attachment has tilt capabilities up to 90 forward/26 backward and can be swiveled up to 360. Motion Attachment works with VESA 75mm, Gamber-Johnson 2×4, NEC or AMPS hole patterns. Support Brace (7160-0230)Support Brace provides additional mount system support in rugged driving conditions and reduces mounting system vibration. Armrest (MCS-ARMREST)The Armrest is height adjustable for better ergonomic positioning. The padded armrest flips up to allow access to the console box or cupholder if needed. Accessories(7160-0847)The cupholder mounts to the front of the console box. It holds two cups and is compatible with most cup sizes. Must order as is. There are no substitutionfor accessories. Accessories may need to be assembled. EXTRA ACCESSORIES Gamber-Johnson offers a variety of extra accessories for the console box including full faceplates, LED lights, mic clips, cigarette adapter kits and power distribution blocks. (These are not included in the Packaged solutions, must order separately).
