KIT: Panasonic Toughbook 40 QUAD RF FULL Port Replication Laptop Dock (7160-1728-02) and LIND power adapter (#7300-0461) | 7170-0943-02 | 7170-0943-02

Description

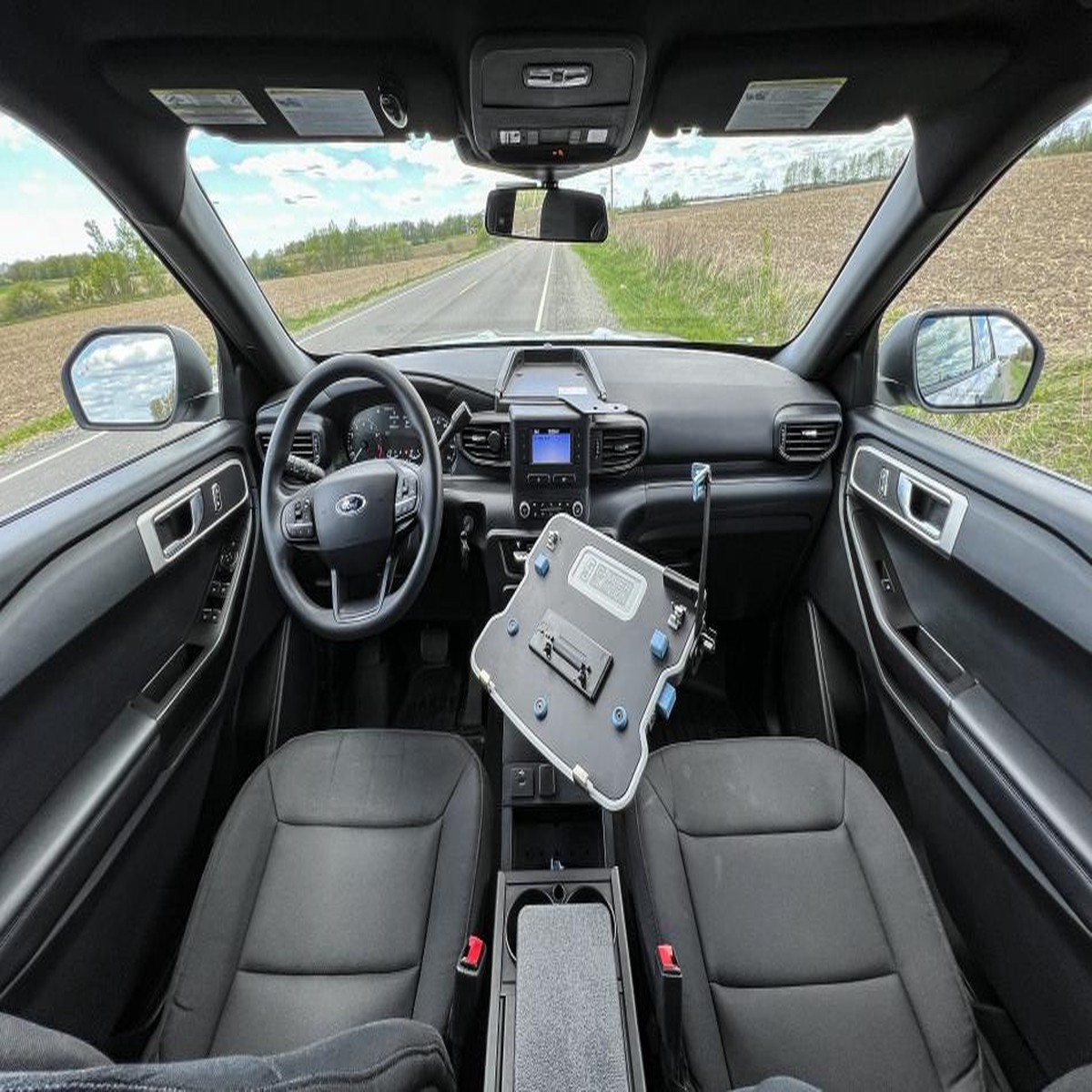

KIT: Panasonic Toughbook 40 QUAD RF FULL Port Replication Laptop Dock (7160-1728-02) and LIND power adapter (#7300-0461) |7170-0943-02 This docking station is designed for reliable compatibility with the Panasonic Toughbook 40 rugged computer. This docking station features Quad RF antenna pass-through and full port replication including Ethernet, Serial, HDMI, USB-A, USB-C, and USB-C with DisplayPort. Gamber-Johnson Toughbook 40 docking station kit includes Panasonic Toughbook 40 docking station with Quad RF (7160-1728-02) and Lind external power Adapter (7300-0461). ANTENNA PASS-THROUGH Quad RF (SMA) PORT REPLICATOR Panasonic Certified Electronics (2) Ethernet,RJ45 (1) Serial, 9-pin (1) HDMI, 19 pin (1 each) Mic / Aux (2) USB-C 10Gbps (Max1.5A@5V) with DisplayPort Alternate Mode* (1) USB-C 0.5Gbps (500mA) front facing (1) USB-A 10Gbps (900mA) (2) USB-A 0.5Gbps (500mA) Power input (15V) *The two USB Type-C ports support DisplayPort Alternate Mode. When the two ports are connected, only one port can be used for display output. The port closer to the HDMI port takes priority). POWER ADAPTER Yes, it includes an external Lind 120W auto bare wire leads power adapter (7300-0461) FEATURES Uses Panasonic Toughbook Certified electronics for reliable connectivity Access to all computer control buttons and most ports while docked Rear-facing I/O ports; integrated cable strain relief and cable management system LED indicator light reflects docking connection to ensure proper docking Shutter cover for extra docking connector protection Designed to the footprint of the computer to preserve cabin space Right-facing docking/release latch for easy docking and undocking Keyed lock for theft deterrence Gamber-Johnson rugged construction and reliability Composite design for reduced weight and durability VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments CERTIFICATES & TESTING MIL-STD 810G Shock/Vibration Tested MIL-STD 810G Environmental Testing: Humidity, High/low temperature, (storage/operational) Cycle Tested: 30K cycles, docking connector, latching & locking mechanisms RoHS, FCC, CE SAE J1455 Shock Crash Hazard Test KIT INCLUDES Panasonic Toughbook 40 Docking Station, Quad RF (7160-1728-02) Lind 120W Automobile Bare Wire Leads Power Adapter for Panasonic (7300-0461) Mounting Hardware Installation Instructions WARRANTY 3-Year Limited Warranty EXTENDED WARRANTY Yes – seeGamber Guard
