Description

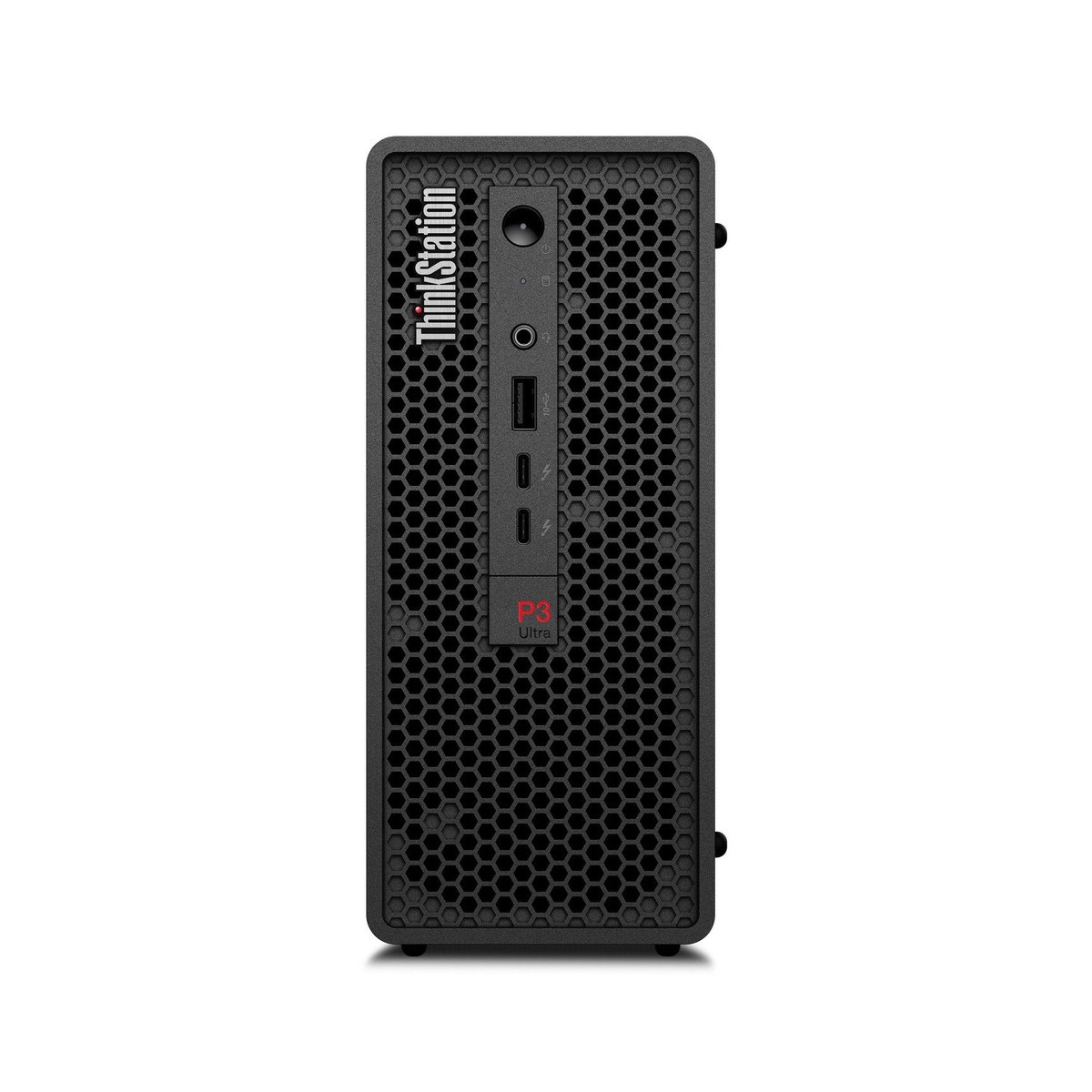

Lenovo ThinkStation P3 Ultra SFF Desktop Workstation
The Lenovo ThinkStation P3 Ultra is a compact yet powerfully configured professional workstation built for demanding creative, engineering, and scientific workflows in business, education, and institutional environments. Designed by Lenovo’s renowned ThinkStation team, it delivers workstation-class performance in a surprisingly small footprint, making it ideal for space-conscious classrooms, labs, and offices. Available in multiple configurations to match a variety of budget and performance needs, the ThinkStation P3 Ultra is ISV-certified and engineered for reliability under continuous, heavy workloads. It’s the ideal choice for schools, higher education institutions, and professional teams that need serious computing power without sacrificing desk space.
Key Features
- Ultra-Compact Workstation Form Factor: The ThinkStation P3 Ultra packs full workstation performance into a chassis roughly the size of a large book, freeing up valuable desk and lab space while still supporting multiple displays and professional-grade peripherals.
- ISV-Certified Professional Performance: Independently certified by leading independent software vendors (ISVs), the P3 Ultra ensures compatibility and stability with professional applications used in architecture, media production, engineering, and scientific research.
- Professional Graphics Support: The system supports dedicated professional-grade GPU options, enabling high-fidelity rendering, CAD visualization, and GPU-accelerated computing tasks critical for creative and technical users.
- Robust Connectivity and Expandability: Featuring a rich array of front and rear ports including USB-A, USB-C, Thunderbolt, DisplayPort, and Ethernet, the P3 Ultra connects seamlessly to monitors, peripherals, storage devices, and networks without requiring additional adapters.
- Enterprise-Grade Manageability: With Intel vPro technology support, IT administrators can remotely manage, monitor, and secure fleets of devices an essential capability for schools and institutions managing large deployments.
- Windows 11 Pro Ready: Ships with Windows 11 Pro, providing access to advanced security features, BitLocker encryption, remote desktop, and enterprise management tools suited for professional and educational environments.
Specifications (30HA0073US)
| Brand |
Lenovo |
| Model |
ThinkStation P3 Ultra |
| MPN |
30HA0073US |
| Processor |
Intel Core i5-14600 (14th Gen, up to 5.2 GHz, 14-core) |
| RAM |
32GB DDR5 |
| Storage |
1TB SSD (1x 1TB) |
| Operating System |
Windows 11 Pro (vPro) |
| Form Factor |
Ultra Small Form Factor (SFF) Desktop Workstation |
| Graphics |
Intel UHD Graphics 770 (integrated); supports dedicated GPU options |
| Chipset |
Intel W680 |
| Memory Slots |
4x SODIMM slots, up to 128GB DDR5 |
| Storage Interface |
M.2 NVMe PCIe SSD |
| Display Output |
DisplayPort 1.4, HDMI 2.1, Thunderbolt 4 (supports up to 4 displays) |
| Ports (Front) |
2x USB-A 3.2 Gen 1, 1x USB-C 3.2 Gen 2, 1x Headphone/Microphone combo jack |
| Ports (Rear) |
2x Thunderbolt 4 (USB-C), 2x DisplayPort 1.4, 1x HDMI 2.1, 4x USB-A 3.2 Gen 1, 1x RJ-45 Ethernet, 1x Audio Line-in, 1x Audio Line-out |
| Networking |
Intel I219LM Gigabit Ethernet; Wi-Fi 6E (802.11ax), Bluetooth 5.3 (optional) |
| vPro |
Intel vPro Enabled |
| Security |
TPM 2.0, Intel vPro, Kensington Lock slot, optional fingerprint reader |
| Power Supply |
230W external power adapter |
| Dimensions |
Approximately 37mm x 179mm x 182.9mm (1.46″ x 7.05″ x 7.2″) |
| Weight |
Approximately 1.45 kg (3.20 lbs) |
| Compliance |
ENERGY STAR, EPEAT Gold, ISV Certified |
Specifications (30HA00APUS)
| Brand |
Lenovo |
| Model |
ThinkStation P3 Ultra |
| Processor |
Intel Core i7-14700 vPro |
| RAM |
64GB |
| Storage |
2TB SSD |
| Display Size |
N/A (Desktop Workstation) |
| Display Resolution |
N/A (Desktop Workstation) |
| Operating System |
Windows 11 Pro |
| Connectivity |
Wi-Fi 6E, Bluetooth 5.3, Ethernet (RJ-45) |
| Ports |
USB-A, USB-C (Thunderbolt 4), HDMI, DisplayPort, SD Card Reader, Audio Jack |
| Battery Life |
N/A (Desktop Workstation) |
| Weight |
Approximately 3.7 kg (8.16 lbs) |
| Dimensions |
Approximately 371 x 175 x 360 mm (14.6 x 6.9 x 14.2 in) |
Specifications (30HA00AQUS)
| Brand |
Lenovo |
| Model |
ThinkStation P3 Ultra |
| Processor |
Intel Core i7-14700 vPro |
| RAM |
64GB |
| Storage |
2TB SSD |
| Display Size |
N/A (Desktop Workstation) |
| Display Resolution |
N/A (Desktop Workstation) |
| Operating System |
Windows 11 Pro |
| Connectivity |
Wi-Fi 6E, Bluetooth 5.3, Gigabit Ethernet |
| Ports |
USB-A, USB-C (Thunderbolt 4), HDMI, DisplayPort, RJ-45 |
| Battery Life |
N/A (Desktop Workstation) |
| Weight |
Approximately 4.0 kg (8.8 lbs) |
| Dimensions |
Approximately 179 x 372 x 175 mm (7.0 x 14.6 x 6.9 in) |
Specifications (30HA00ARUS)
| Brand |
Lenovo |
| Model |
ThinkStation P3 Ultra |
| Processor |
Intel Core i7-14700K vPro, up to 5.6 GHz, 20 Cores (8P + 12E), 33MB Cache |
| RAM |
32GB DDR5 |
| Storage |
1TB SSD |
| Display Size |
N/A (Desktop Workstation) |
| Display Resolution |
N/A (Desktop Workstation) |
| Operating System |
Windows 11 Pro |
| Connectivity |
Wi-Fi 6E (802.11ax), Bluetooth 5.3, Gigabit Ethernet |
| Ports |
USB-C (Thunderbolt 4), USB-A 3.2 Gen 2, USB-A 3.2 Gen 1, HDMI 2.1, DisplayPort 1.4, SD Card Reader, 3.5mm Audio Jack |
| Battery Life |
N/A (Desktop Workstation) |
| Weight |
Approximately 3.7 kg (8.16 lbs) |
| Dimensions |
Approximately 37.4 mm x 179 mm x 370 mm (W x H x D) |
