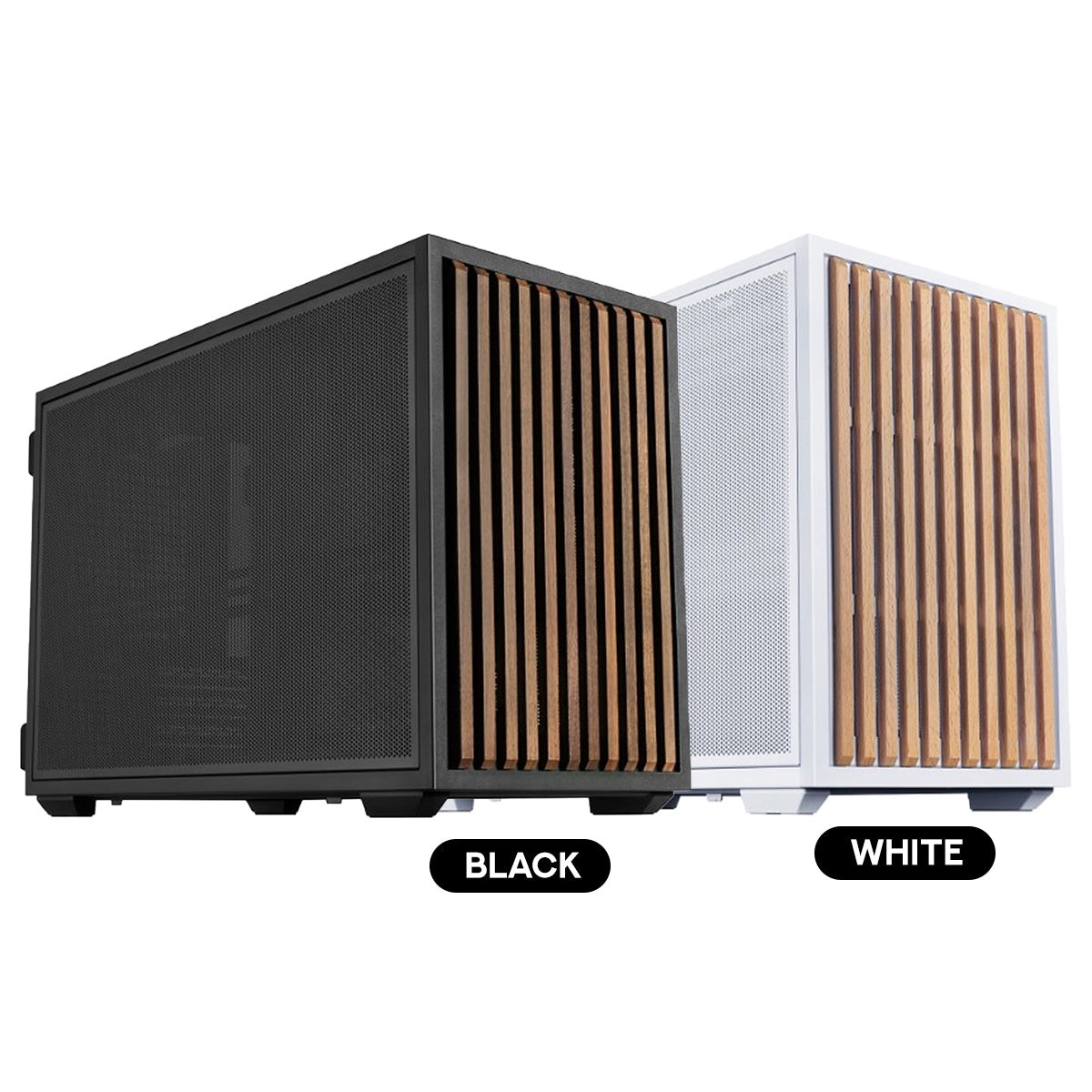

Name: Lian Li B4-WD mATX Wood Micro-ATX | Mini-ITX Gaming PC Case (Black, White) (B4X-WD, B4W-WD)
SKU: ID35177842852
Availability: InStock

Description

Features:

Compact 21.3L mATX case with broad compatibility.
Supports M-ATX / Mini-ITX, 358mm 4-slot GPUs, and 140mm ATX PSUs.
Supports up to 360mm radiators with SFX PSU, or 240mm with ATX PSU.
Up to 168mm CPU cooler clearance, or 162mm with side fan bracket.
Includes 2 pre-installed 120 120 15mm slim top fans.
Supports up to 9 fans across top, side, bottom, rear, and front.
Removable top bracket simplifies CPU 8-pin routing and fan setup.
Removable front bracket allows easier large GPU installation.
Supports both horizontal and vertical layouts.
Optional Vertical AeroDeck adds up to 3 120mm or 2 140mm fans for GPU cooling.

Specifications:

Product Name	B4-mATX Wood
Model No.	B4X-WD / B4W-WD
Dimensions (D W H)	420 191 288 mm
Material	Steel, Wood (Walnut / Beech)
Motherboard Support	Micro-ATX / Mini-ITX Back-Connect: No
Storage	Front: 1 2.5″ SSD Bottom: 1 3.5″ HDD or 1 2.5″ SSD
GPU Length Clearance	358 mm
CPU Cooler Height Clearance	162 mm (168 mm without side fan bracket)
PSU Support	ATX (Up to 140 mm) / SFX
Radiator Support	Side (With SFX PSU): 360 / 280 / 240 mm Side (With ATX PSU): 240 mm
Fan Support	Top: 2 120 mm (Pre-installed) Side (With SFX PSU): 3 120 mm / 2 140 mm Side (With ATX PSU): 2 120 mm Front (With SFX PSU Only): 1 120 mm Slim Fan Bottom: 3 120 mm / 2 140 mm Rear: 1 120 mm
Included Fans	Top: 2 120 120 15 mm
Dust Filter	Bottom: Magnetic Filter 1
