Description

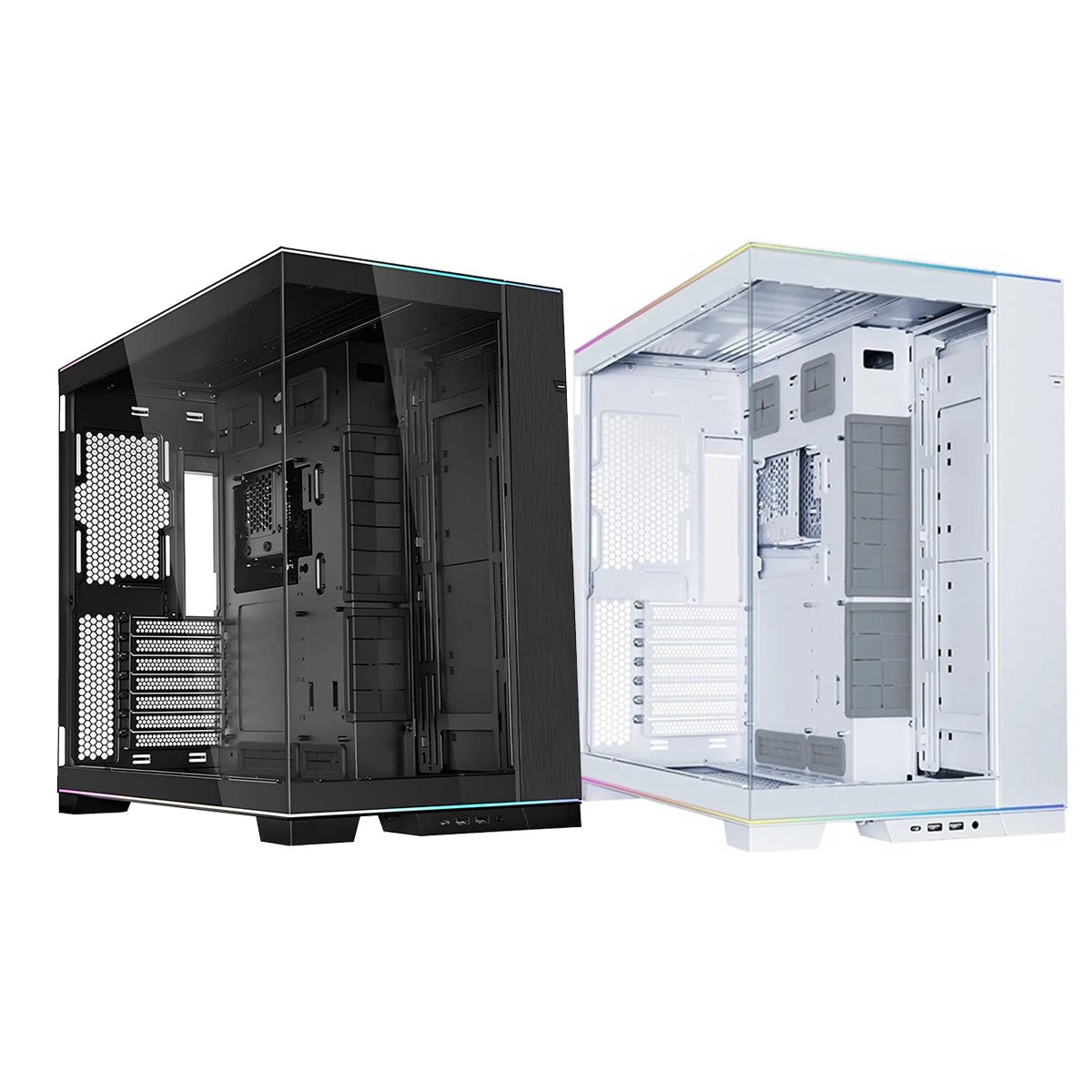

Lian Li O11D Dynamic Evo RGB

Two L-shaped light strips on top and bottom with befitting lighting effects.
Front and side tempered glass panels with a removable pilar for a seamless view of components and RGB lighting.
2 heights adujustable motherboard rear I/O and mounting points.
Supports up to 420mm radiator on top, and 360mm radiator on side and bottom.
Supports 140mm fans x3 on top, side, and bottom.
Cable management friendly with more space at the second chamber.
Optional accesories for vertical GPU or upright GPU mounting.

SPECIFICATION

PRODUCT NAME O11 Dynamic EVO RGB
MODEL O11DERGBX & O11DERGBW
CASE TYPE Tower Chassis
COLOR Black & White
DIMENSIONS (D478mm W290mm H471mm
MATERIAL 4.0mm tempered glassAluminum Steel
MOTHERBOARD SUPPORT E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX
EXPANSION SLOT 7
STORAGE Side Fan Bracket:2 3.5 HDD or 4 2.5 SSD
Behind MB Tray: 2 2.5 SSD
Hard Drive Cage2 3.5 HDD or 2.5 SSD
RADIATOR SUPPORT Top: 240mm 1 or 360mm 1 or 420mm 1
Side: 240mm 1 or 280mm 1 or 360mm 1
Bottom: 240mm 1 or 280mm 1 or 360mm 1
FAN SUPPORT Top: 120mm 3 or 140mm 3
Side: 120mm 3 or 140mm 3
Bottom: 120mm 3 or 140mm 3
Rear: 120mm 1
GPU LENGTH CLEARANCE 455.7mmMax
CPU COOLER HEIGHT CLEARANCE 167mmMAX
I/O PORTS USB 3.0 2
USB 3.1 TYPE-C 1
Audio 1
Color Button 1
Mode Button
Brightness Button 1
Reset Button 1
Power Button 1
DUST FILTER 1 Bottom
