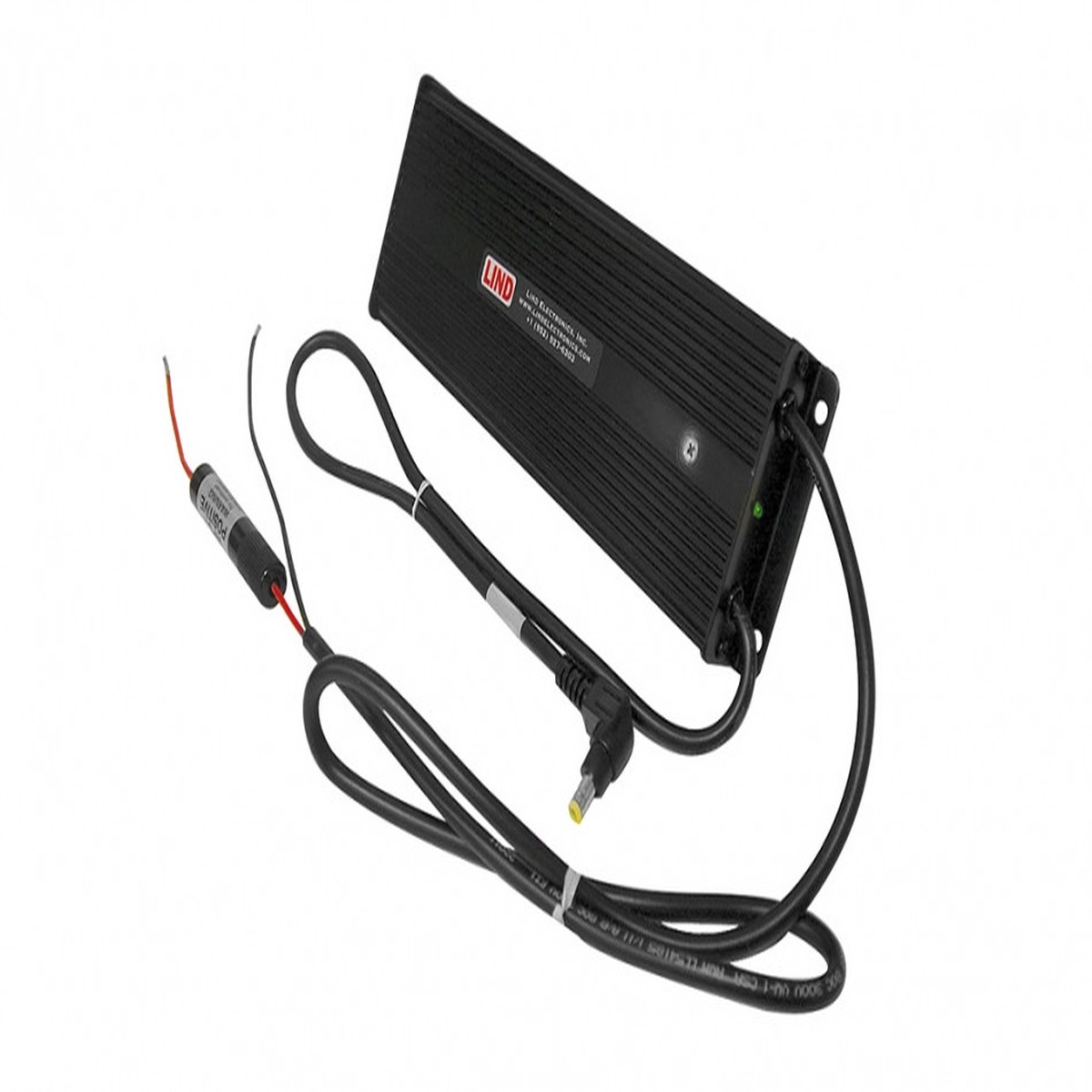

LIND 20-60V Material handling isolated power adapter with bare wire lead. Output voltage 15.6Vdc, Output current 5.5 Amps to barrel connector plug. Toughpad FZ-A2, G1, M1/B1, Toughbook A3, N1, 20.

Description

LIND 20-60V Material handling isolated power adapter with bare wire lead. Output voltage 15.6Vdc, Output current 5.5 Amps to barrel connector plug. Toughpad FZ-A2, G1, M1/B1, Toughbook A3, N1, 20. REPLACES 15203. | 7300-0465 The Lind 20-60V isolated power adapter provides regulated power to the docking stations and/or cradles for the Panasonic Toughbook 18/19/20, and Toughpad G1, M1/B2 and E1/X1. The rugged design of the Lind power adapters makes them ideally suited for use in harsh mobile environments.Formerly Item No.15203 FEATURES Full continuous rated power output Sealed and potted in aluminum extrusions for the harshest operating environments Input Voltage: 20 to 60 VDC Output Voltage: 15.6 VDC Output Current: 5.5 amps (max) Isolation Voltage: Input to Output Isolated 500 VDC Input – Output 500 VDC Input – Chassis 100 VDC Output – Chassis Operating temp = -4 to 104 deg. F (-20 to 40 deg. C)
