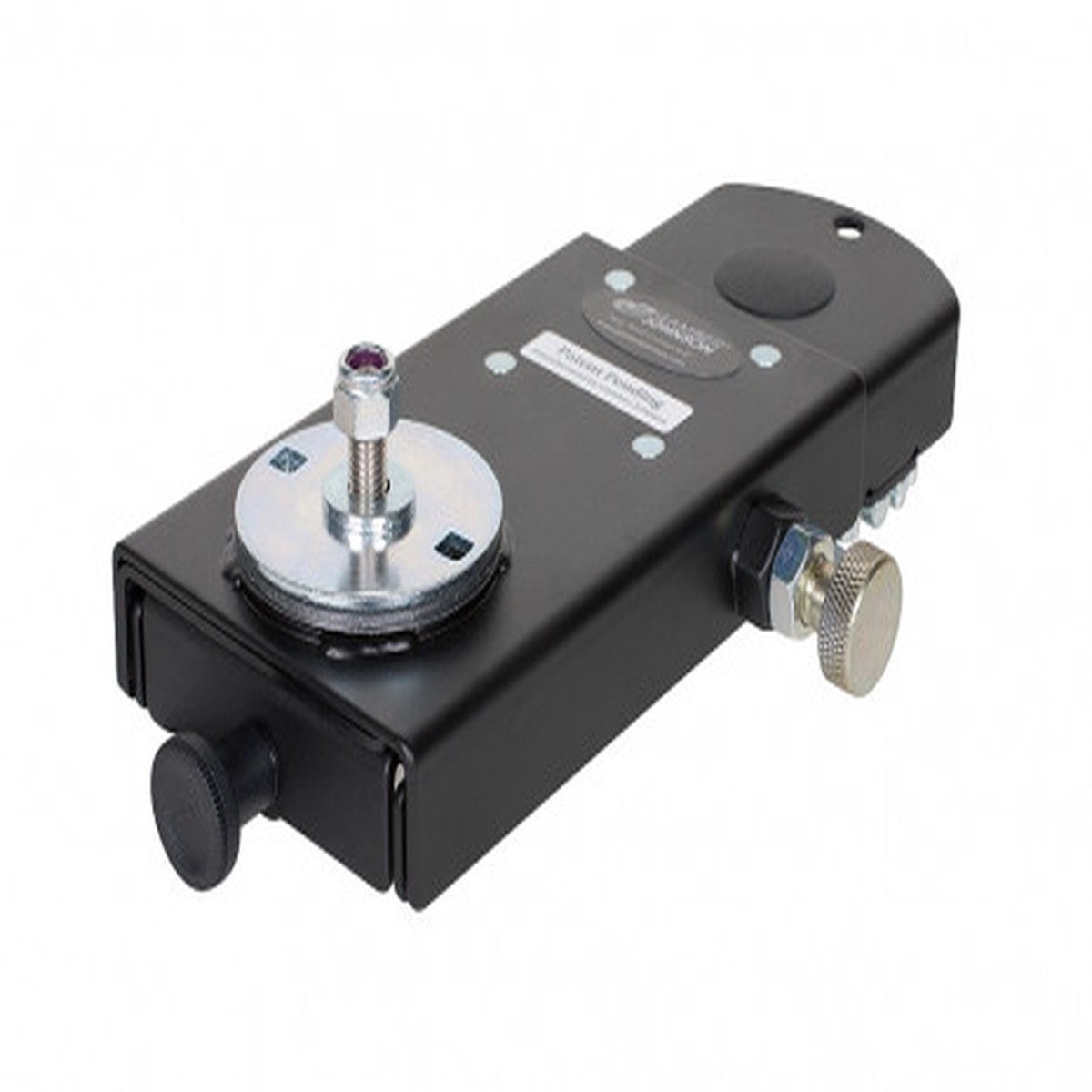

Locking Slide Arm w/o Clevis – 7160-0427 | 7160-0427

Description

Locking Slide Arm w/o Clevis Gamber-Johnson part number 7160-0427.SpecificationsWeight5.2 lbs / 2.4 kgHeight4.0 in / 10.2 cmWidth4.0 in / 10.2 cmDepth12.0 in / 30.5 cmFeaturesDesign is protected by US Patent Number 8,511,629 The entire arm can rotate around 360 degrees with locking points at every 15 degreesTo rotate the arm simply pull the front lever out, rotate to desired position and then release the lever Locking slide arm can telescope 9″ to 13″ from the center of the pole and utilizes the industry first, Slam and Lock technology, that allows you to simply push the computer back to the retracted position and it automatically locks into place Heavy duty, spring loaded steel, side pin was tested to 50,000+ cycles Designed for use with the Gamber-Johnson standard motion attachments with a 3/8″ hole (sold separately) Can be mounted directly to a flat surface or on any upper tube, complete pole, center pole or low profile bracket Heavy gauge steel construction for long-term durability Black powder coat finish for maximum corrosion resistanceProduct DetailsWarranty: Limited Lifetime WarrantyIndustry: Fire/Rescue, Public Safety, UtilityPlacement: Any Upper Tube, Center Pole or directly to any flat surface, Complete Pole, Low Profile BracketsSub Type 1: Motion AttachmentSub Type 2: Locking Slide ArmSub Type 3: Adjustable AngleNotes:Entire arm – 360 degrees can lock at every 15 degrees DownloadsInstallation Guide (PDF)
