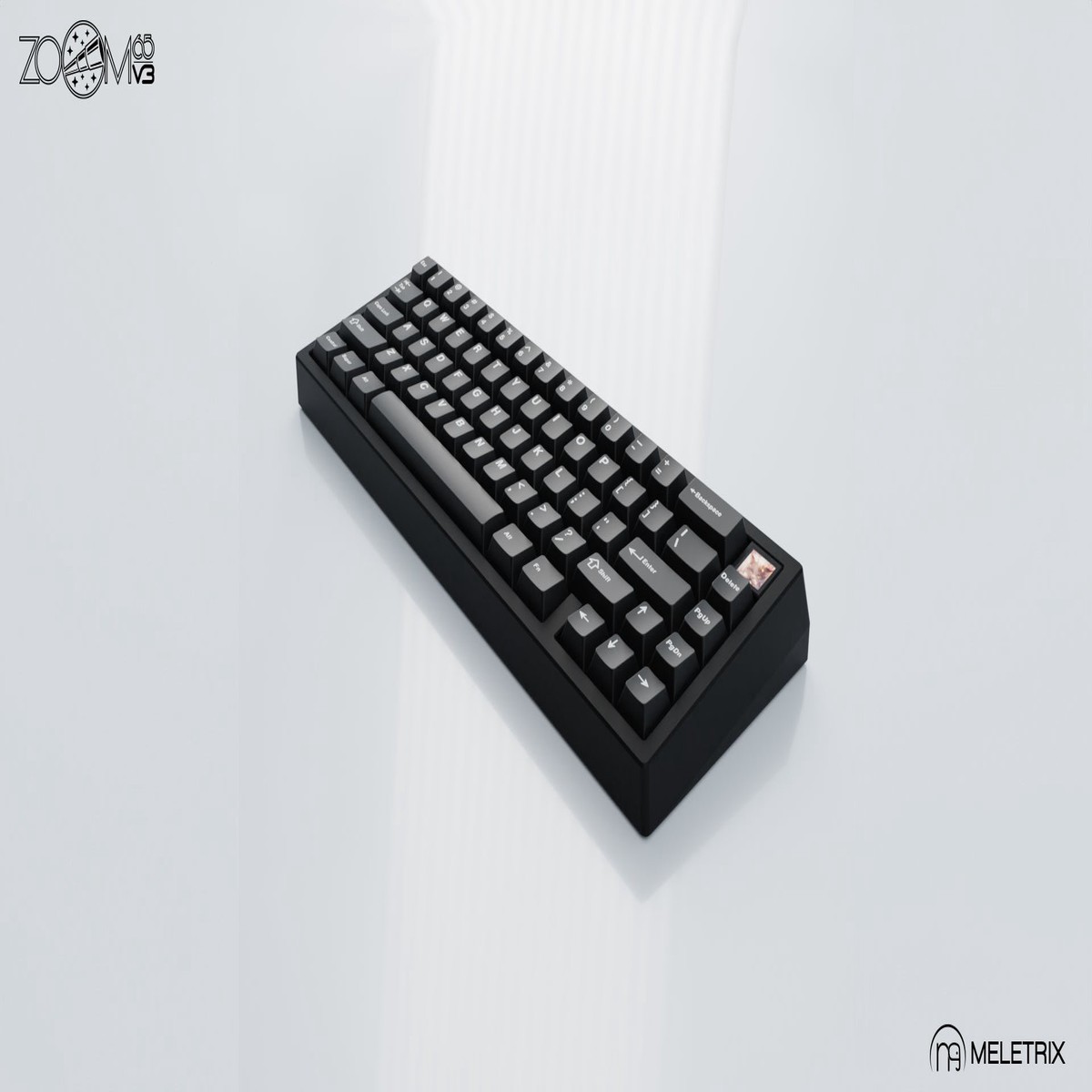

Meletrix Zoom65 V3 Barebones DIY Kit

Description

• Connect 3 ways- wired with USB-C cable or wirelessly with Bluetooth 5.0 and 2.4 GHz
• Aluminum case with aluminum switch plate
• 1.6mm non flex cut PCB can support ANSI or ISO
• Screwless quick assembly design allows for easy change between 7 different mounting systems: short-arm spring, non load-bearing spring, split o-ring, magnetic levitation, silican gel particle, and floating pogo pin
• Magnetic PCB plug connectors and external weight
• LCD screen module
• Programmable with QMK and VIA
• DIY kit – assembly is required
• **Barebones Item!** Does Not Include Switches or Keycaps

Did you miss the Zoom65 V3 group buy? Do you want a keyboard but don’t want to have to wait for it to be produced? Never fear, MK is here to save the day! We have designed some special selections from the Zoom65 V3 group buy and are making them available while supplies last! This stock is limited so make sure you act fast!

Anodized Black
Anodized black case with no tail light or chamfer
Aluminum plate
Black stainless steel PVD mirror back plate
Gold PVD mirror external weight
1.6mm non flex cut PCB

E-White
E-White case with no tail light or chamfer
Aluminum plate
White aluminum back plate
Anodized gold external weight
1.6mm non flex cut PCB

Strawberry Ice Cream
Strawberry Ice Cream case with no tail light or chamfer
Aluminum plate
White aluminum back plate
Anodized rose gold external weight
1.6mm non flex cut PCB

Kit will arrive unassembled and will include only the following components:

– LCD screen module
– 2.4GHz. receiver
– 2* Li-ion batteries
– magnetic daughterboard and flexible flat cable
– Poron sound dampener kit
– stabilizers
– silicone feet
– screws
– allen key
– USB-C cable
– accessories for the 7 mounting systems
– storage bag
– backplate
– PCB
– aluminum case
– plate

Toolless assembly

Exploded View

Size
