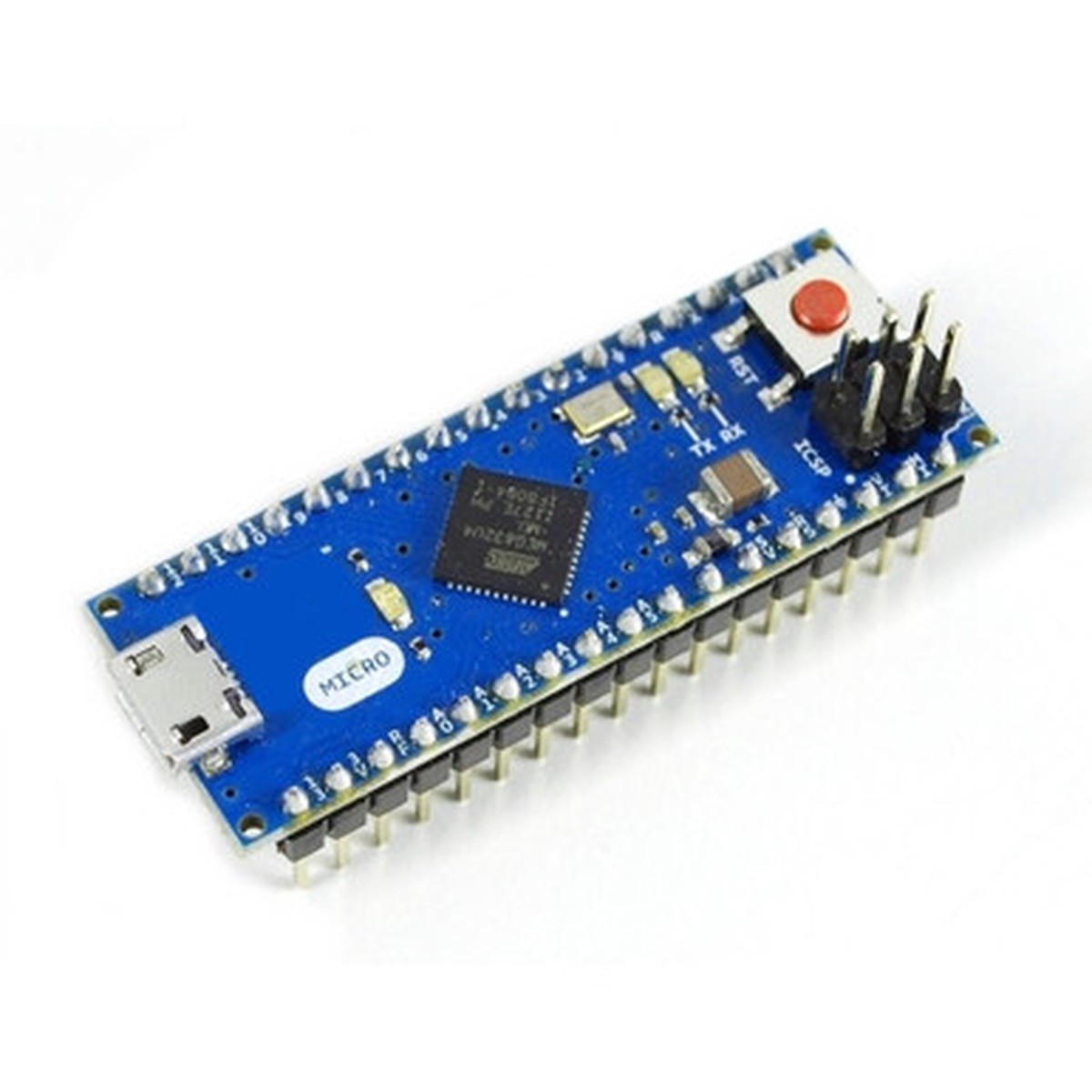

Micro Compatible Board, ATmega32u4

Description

Description Show Reviews The Micro is an Arduino-compatible microcontroller board based on the ATmega32u4 , developed in conjunction withAdafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard. The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. Summary Microcontroller ATmega32u4 Operating Voltage 5V Input Voltage (recommended) 7-12V Input Voltage (limits) 6-20V Digital I/O Pins 20 PWM Channels 7 Analog Input Channels 12 DC Current per I/O Pin 40 mA DC Current for 3.3V Pin 50 mA Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader SRAM 2.5 KB (ATmega32u4) EEPROM 1 KB (ATmega32u4) Clock Speed 16MHz Length 48 mm Width 18 mm Weight 13 g This is an Arduino-compatible product, meaning it is not made by Arduino. Arduino hardware and software are open source, so high quality Arduino-compatible hardware may be made by multiple vendors. Please ensure that all support issues for Arduino-compatible products are addressed to us at BuyaPi.ca 0 Reviews Hide Reviews Show Reviews
