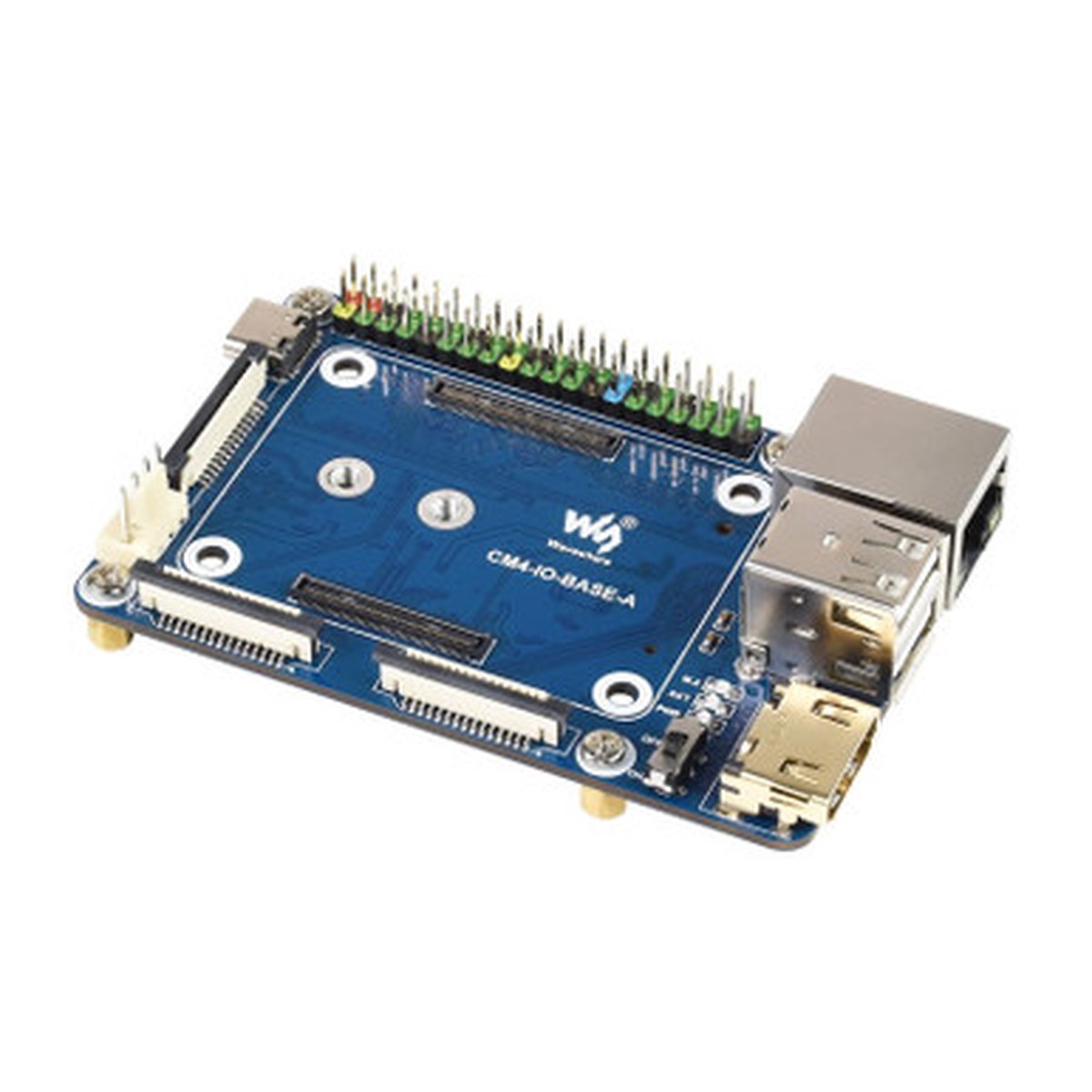

Mini Base Board (A) Designed for Raspberry Pi Compute Module 4

Description

Description Show Reviews Waveshare19887 -Mini Base Board (A) Designed For Raspberry Pi Compute Module 4 Specifications CM4 socket suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 connector M.2 M KEY, supports communication modules or NVME SSD Connector Raspberry Pi 40PIN GPIO header USB USB 2.0 Type A 2, USB 2.0 via FFC connector 2 Display MIPI DSI display port (15pin 1.0mm FPC connector) Camera MIPI CSI-2 camera port 2 (15pin 1.0mm FPC connector) Video HDMI port 2 (including one port via FFC connector), supports 4K 30fps output RTC N/A Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants Fan header no fan control, 5V Power input 5V Dimensions 85 56mm Includes CM4-IO-BASE-A x1 SSD mounting screw x1 Weight: 0.045 kg What’s On Board CM4 socket suitable for all variants of Compute Module 4 Power input/Programming 5V/2.5A power supply, or used for eMMC burning DISP MIPI DSI display port FAN for connecting cooling fan, allows speed adjustment and measurement CAM 2x MIPI CSI camera ports HDMI0 connector HDMI0 port, supports 4K 30fps output USB 2.0 ports 2x USB 2.0 ports, for connecting sorts of USB devices Gigabit Ethernet connector Gigabit Ethernet RJ45 connector, with 10 / 100 / 1000M network support M.2 indicator indicating the operating status of M.2 interface ACT indicator indicating the operating status of Raspberry Pi PWR indicator indicating the status of Raspberry Pi power supply BOOT selection ON: CM4 would be booted from USB-C interface OFF: CM4 would be booted from eMMC or Micro SD card 40PIN GPIO header Micro SD card slot for connecting a Micro SD card with pre-burnt image (Lite variant ONLY) HDMI1 FFC connector HDMI1 port, supports 4K 30fps output USB 2.0 FFC connector can be connected through an adapter FE1.1S USB HUB chip, expanding one USB port to 4x ports M.2 slot supports sorts of NVME SSD, or communication modules with PCIE M.2 KEY-M interface Outline Dimensions Resources WIKI: CM4-IO-BASE-A 0 Reviews Hide Reviews Show Reviews
