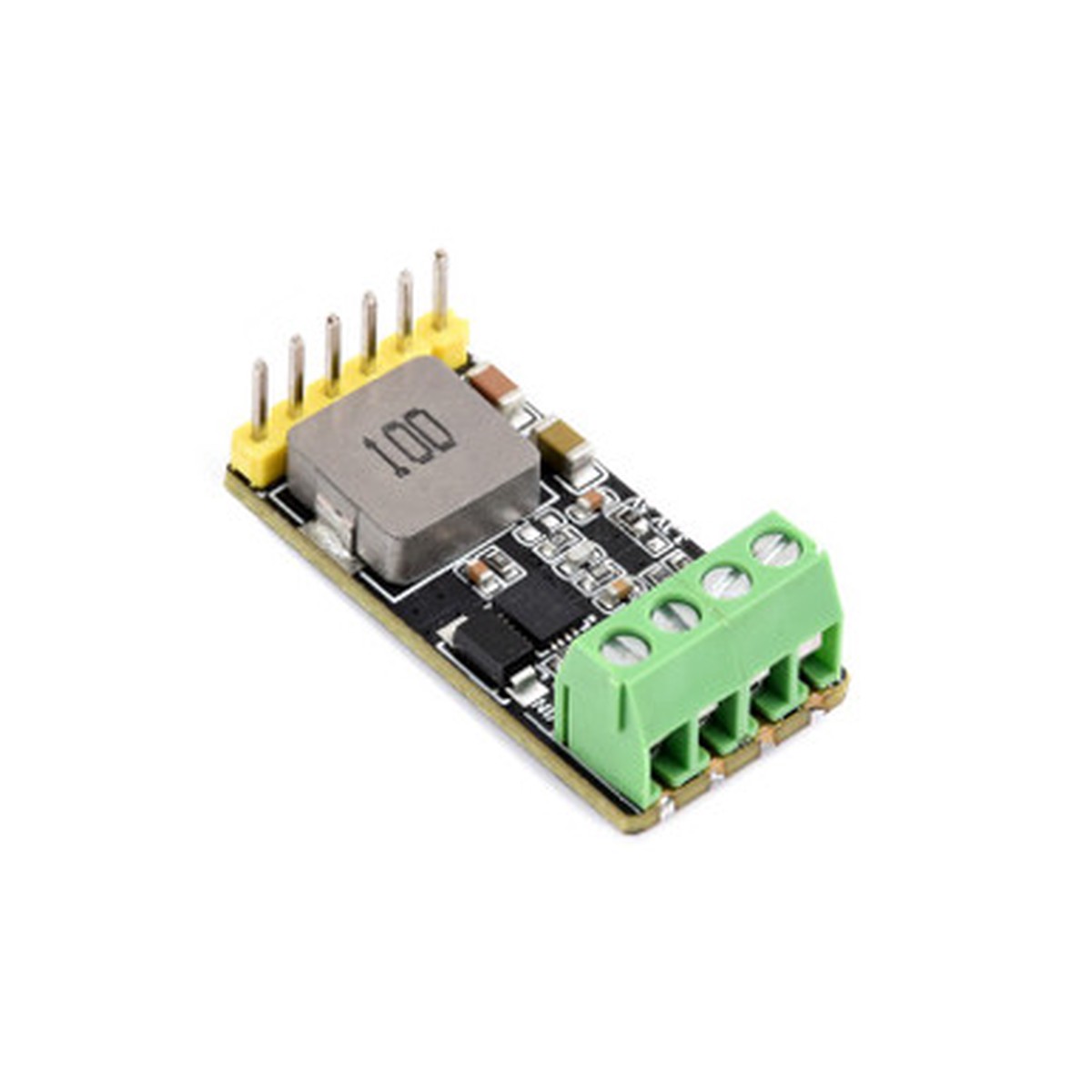

Mini DC-DC Step-Down Buck Converter Module, 6-36V input, 3.3V/5V Switchable Output, 4A Power Supply Regulator

Description

Description Show Reviews Waveshare29036 -DC-DC Buck Mini Module, Compact Size And Easy To Integrate, Configurable 3.3V Or 5V buck voltage regulation output, Immersion Gold Process. Features Supports 5~36V wide voltage input, configurable for 5V or 3.3V output, up to 4A output current 5V output by default, and the input voltage range is 6~36V Can be switched to 3.3V output by resoldering a onboard resistor, and the input voltage range is: 5~36V Adopts black immersion gold process, small in size and easy to integrate Specifications Mode 5V mode (by default) 3.3V mode (switching via resoldering 0R resistor to 3.3V side) Input voltage DC 6~36V DC 5~36V Output voltage DC 5V DC 3.3V Operating current 0A~4A (can reach up to 5A output under extreme conditions, but adequate heat dissipation is required) Switching frequency 500KHz Conversion efficiency 90% dimensions 33 16 5.7 (mm) Interface introduction Interface on the left side Interface on the right side VIN+ Power input positive VOUT(+) Power output positive VIN- Power input negative GND(-) Power output negative Outline dimensions Wiki: www.waveshare.com/wiki/DC5-36-TO-DC3V3-5 0 Reviews Hide Reviews Show Reviews
