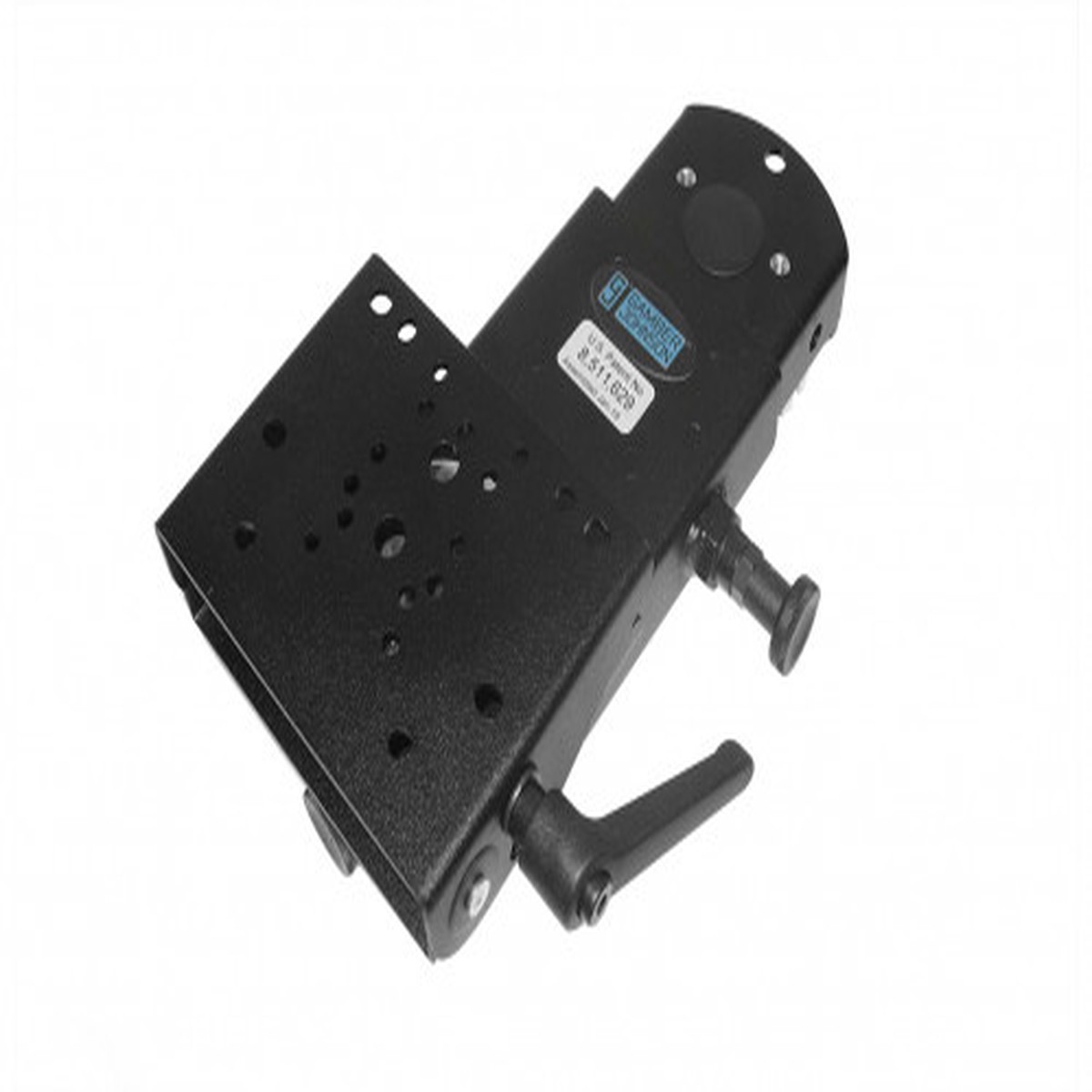

Mongoose 0-120 x 360 LOCKING SLIDE ARM with SHORT CLEVIS – 7160-0928 | 7160-0928

Description

Mongoose 0-120 x 360 LOCKING SLIDE ARM with SHORT CLEVIS Gamber-Johnson part number 7160-0928.SpecificationsWeight6.8 lbs. (3.08 kg)Height3.9″ (9.9 cm)Width7.2″ (18.4 cm)Depth11.3″ (28.8 cm)FeaturesDesigned is protected by US Patent Number 8,511,629 Entire motion device capable of rotating 360 degree with locking every 15Tilt Capabilities: 45 forward Swivel Capabilities: 360 The entire arm can rotate around 360 with locking points at every 15 To rotate the arm simply pull the front lever out, rotate to desired position and then release the lever Locking slide arm can telescope 9″ to 13″ from the center of the pole and utilizes the industry first “slam and lock” technology that allows you to simply push the computer back to the retracted position and it automatically locks into place Heavy duty, spring loaded steel, side pin was tested to 50,000+ cycles Can be mounted directly to a flat surface or on any Upper Pole, Center Pole, Low Profile Bracket, GJ console box via Smiley Face or 3-Bolt Hole pattern Two threaded inserts added to the back of the Mongoose to attach the Tablet Display Mount (Item No. 7160-0494 or 7160-0529) Heavy gauge steel construction for long-term durability Black powder coat finish for maximum corrosion resistanceProduct DetailsWarranty: Limited Lifetime WarrantyIndustry: Fire/Rescue, Public Safety, UtilitySub Type 1: Motion AttachmentSub Type 2: Locking Slide ArmSub Type 3: With ClevisNotes:Mounting plate hole patterns: AMPS (4 hole rectangle shaped) – 3 locations, one turned 90 degrees NEC (3 hole triangle shaped) VESA 75mm Gamber-Johnson 2x4DownloadsInstallation Guide (PDF)
