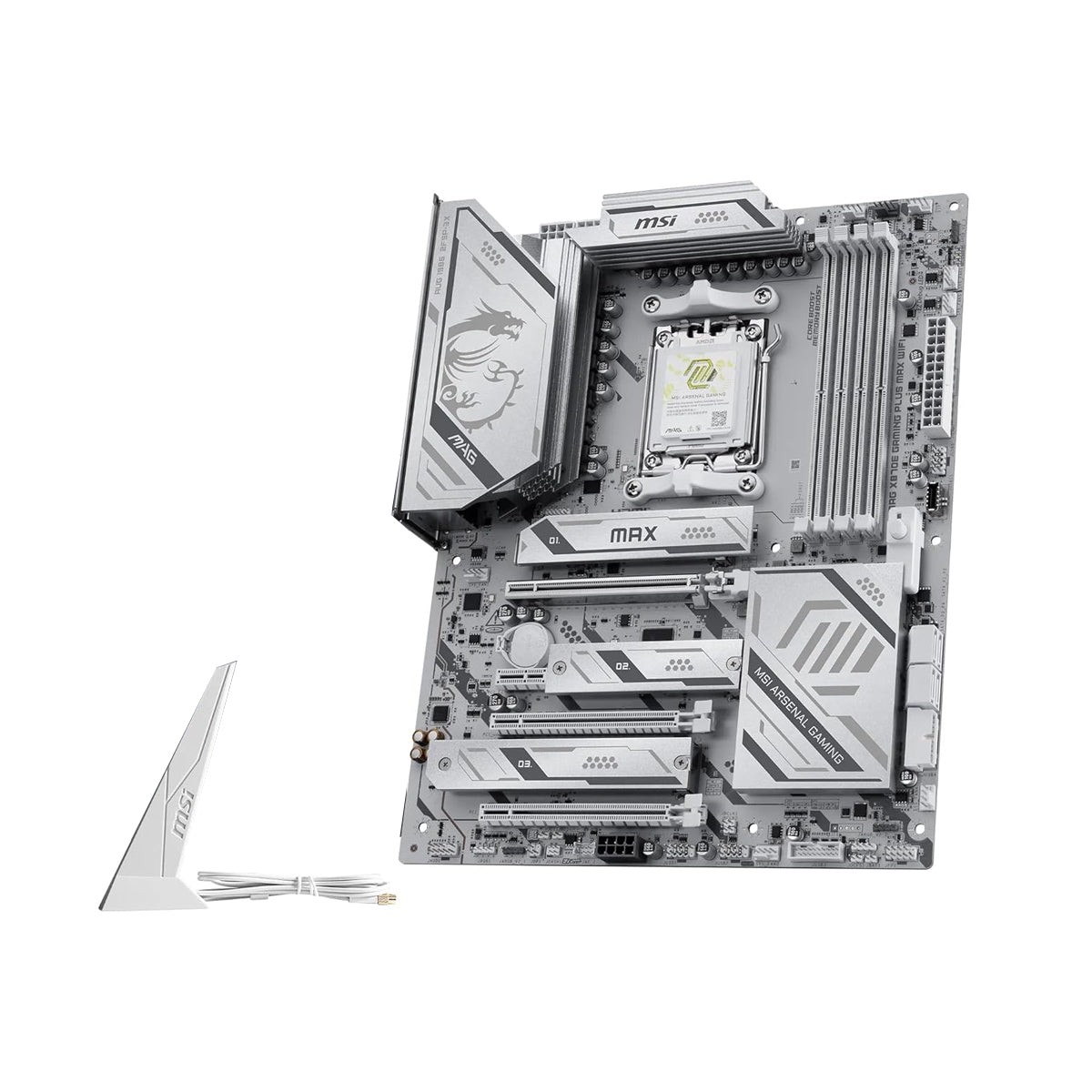

MSI MAG X870E Gaming Plus Max WiFi DDR5 AMD Motherboard
Original price was: $1,041.45.$150.00Current price is: $150.00.
Description
MAG X870E GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with full-speed Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it’s ready for the battlefield of AMD Ryzen 9000 series processors.
Specifications:
| Chipset | AMD X870E |
| CPU | Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4 DDR5 UDIMM, up to 256GB DDR5 82005600 MT/s (OC) / 56004800 MT/s (JEDEC) Supports AMD EXPO, Memory Overclocking, Dual Channel, Non-ECC Unbuffered Memory, CUDIMM (Clock Driver Bypass Mode) |
| Ryzen 9000 Memory Support | 1DPC 1R: Up to 8200+ MT/s 1DPC 2R: Up to 6400+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 6000+ MT/s |
| Onboard Graphics | 1 HDMI 2.1 TMDS (Up to 4K 60Hz) 1 USB4 Type-C with DisplayPort 1.4 (Up to 4K 120Hz) *Available only with processors featuring integrated graphics. |
| Expansion Slots | 3 PCIe x16 Slots 1 PCIe x1 Slot PCI_E1: PCIe 5.0 x16 (CPU) |
| PCI_E1 Support | Ryzen 9000 / 7000: PCIe 5.0 x16 Ryzen 8700 / 8600 / 8400: PCIe 4.0 x8 Ryzen 8500 / 8300: PCIe 4.0 x4 |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
| Storage | 3 M.2 Slots M.2_1: PCIe 5.0 x4 (2280/2260) M.2_2: PCIe 4.0 x4 (2280/2260) M.2_3: PCIe 4.0 x4 (22110/2280) 4 SATA 6Gb/s |
| M.2 Compatibility | M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000), PCIe 4.0 x4 (Ryzen 8000) M.2_2: PCIe 4.0 x4 (Ryzen 9000/8700/8600/8400/7000) M.2_3: PCIe 4.0 x4 (Ryzen 9000/8700/8600/8400/7000) |
| RAID | SATA: RAID 0 / 1 / 10 M.2 NVMe: RAID 0 / 1 / 5 *RAID 5 supported only on Ryzen 9000 Series. |
| USB | Rear: 4 USB 2.0 2 USB 5Gbps Type-A 2 USB 10Gbps Type-A 1 USB 20Gbps Type-C 1 USB4 40Gbps Type-C Front: |
| LAN | 1 Realtek RTL8126 5GbE LAN |
| Wireless LAN & Bluetooth | Wi-Fi 7 (Pre-installed M.2 Key-E Module) Supports 2.4GHz / 5GHz / 6GHz, MU-MIMO, MLO, 4KQAM, up to 5.8Gbps IEEE 802.11 a/b/g/n/ac/ax/be Bluetooth 5.4 |
| Internal I/O | 1 ATX Power 2 CPU Power 1 PCIe 8-pin Power 1 CPU Fan 1 Pump/System Fan 6 System Fan 1 EZ Conn Header 2 Front Panel Headers 1 Chassis Intrusion 1 Front Audio 1 Tuning Controller Connector 3 ARGB Gen2 Headers 1 RGB Header 1 TPM Header 2 Direct OC Jumper 6 USB 2.0 Ports 4 USB 5Gbps Type-A Ports 1 USB 10Gbps Type-C Port |
| LED Features | 4 EZ Debug LEDs, 1 EZ Memory Detection LED |
